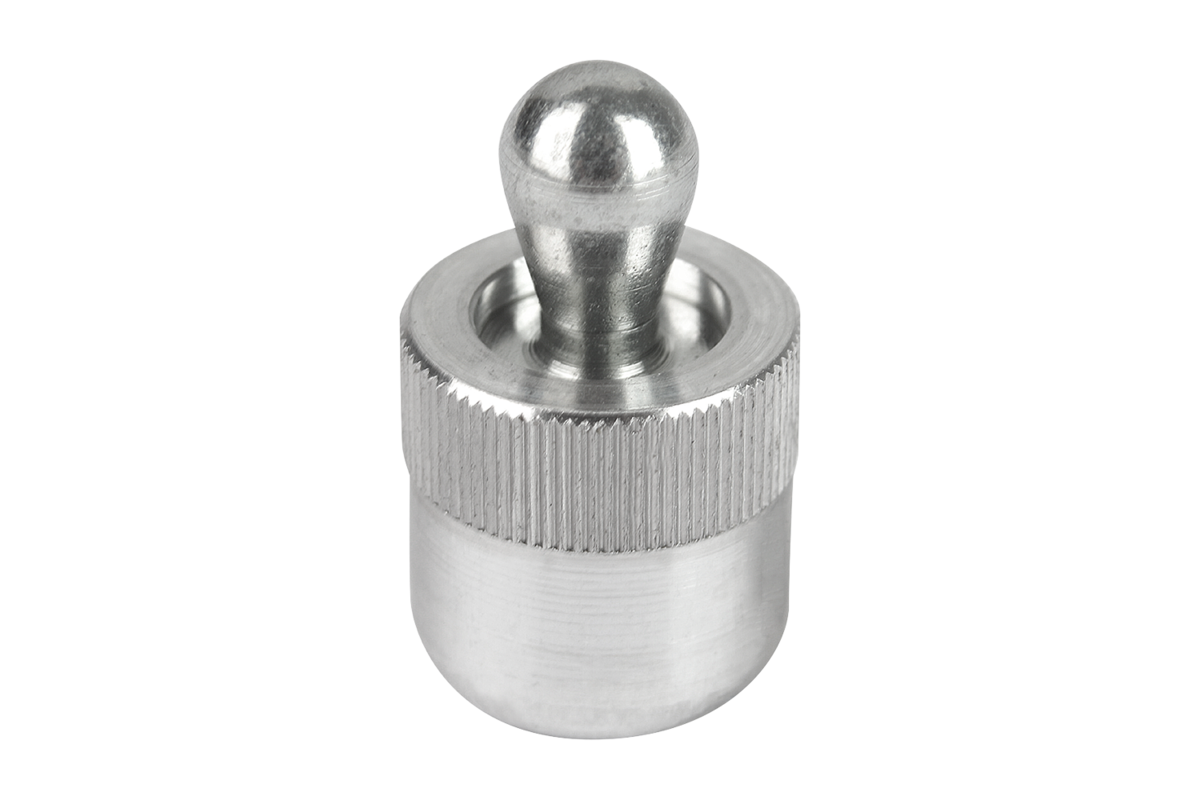

K0368_OA inchLateral spring plungers without seal, thrust pin and spring... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve in aluminium; spring in steel; pressure pin in steelVersion:Steel thrust pin hardened and electro zinc-plated.
Sleeve blue electro zinc-plated.Note for ordering:For the inch series, dimension D and D2 are in inches, all other dimensions are in mm.Note:Lateral spring plungers are for positioning, clamping, holding and securing workpieces and parts for engraving, labelling, drilling, reaming, tapping, honing, grinding, welding, soldering, assembling, mounting etc.
Suitable eccentric adjustment bush see K0369.
W and Z are customer specified.Drawing reference:Special features: |
Order No.
| D | D1 | L | L1 | D2 | ±S | F
ca.N | X if
Y = 1
| X if
Y = 2 | X if
Y = 3 | X if
Y = 4.5
| X if
Y = 6 | X if
Y = 8 | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| K0368.21034CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 10 | 0,8 | 1 | 1 | 1 | 1 | 1 | K0369.03CM |  | | 6.75 $ (USD) | | | K0368.21036CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 20 | 0,8 | 1 | 1 | 1 | 1 | 1 | K0369.03CM | | | 6.75 $ (USD) | | | K0368.21038CM | 1/4 | 3 | 7 | 4 | 1/4 | 0,5 | 40 | 0,8 | 1 | 1 | 1 | 1 | 1 | K0369.03CM | | | 6.75 $ (USD) | | | K0368.21054CU | 7/16 | 5 | 11 | 6,7 | 7/16 | 0,8 | 20 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | K0369.05CU | | | 7.36 $ (USD) | | | K0368.21056CU | 7/16 | 5 | 11 | 6,7 | 7/16 | 0,8 | 50 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | K0369.05CU | | | 7.36 $ (USD) | | | K0368.21058CU | 7/16 | 5 | 11 | 6,7 | 7/16 | 0,8 | 100 | - | 1,5 | 1,7 | 1,7 | 1,7 | 1,7 | K0369.05CU | | | 7.36 $ (USD) | | | K0368.21064CU | 7/16 | 6 | 11 | 10,7 | 7/16 | 1 | 40 | - | - | - | 1,7 | 1,9 | 1,9 | K0369.05CU | | | 7.94 $ (USD) | | | K0368.21066CU | 7/16 | 6 | 11 | 10,7 | 7/16 | 1 | 75 | - | - | - | 1,7 | 1,9 | 1,9 | K0369.05CU | | | 7.94 $ (USD) | | | K0368.21068CU | 7/16 | 6 | 11 | 10,7 | 7/16 | 1 | 150 | - | - | - | 1,7 | 1,9 | 1,9 | K0369.05CU | | | 7.94 $ (USD) | | | K0368.21084CP | 1/2 | 8 | 13 | 13,9 | 1/2 | 1,3 | 50 | - | - | - | - | 2,5 | 2,7 | K0369.08CP | | | 8.65 $ (USD) | | | K0368.21086CP | 1/2 | 8 | 13 | 13,9 | 1/2 | 1,3 | 100 | - | - | - | - | 2,5 | 2,7 | K0369.08CP | | | 8.65 $ (USD) | | | K0368.21088CP | 1/2 | 8 | 13 | 13,9 | 1/2 | 1,3 | 150 | - | - | - | - | 2,5 | 2,7 | K0369.08CP | | | 8.65 $ (USD) | | | K0368.21104CQ | 5/8 | 10 | 17 | 16,7 | 5/8 | 1,6 | 100 | - | - | - | - | - | 3,1 | K0369.10CQ | | | 9.52 $ (USD) | | | K0368.21106CQ | 5/8 | 10 | 17 | 16,7 | 5/8 | 1,6 | 150 | - | - | - | - | - | 3,1 | K0369.10CQ | | | 9.52 $ (USD) | | | K0368.21108CQ | 5/8 | 10 | 17 | 16,7 | 5/8 | 1,6 | 200 | - | - | - | - | - | 3,1 | K0369.10CQ | | | 9.52 $ (USD) | |
