Spring Plungers smooth surface, double-sided
K0337

Spring Plungers smooth surface, double-sided

go back

Item description/product images

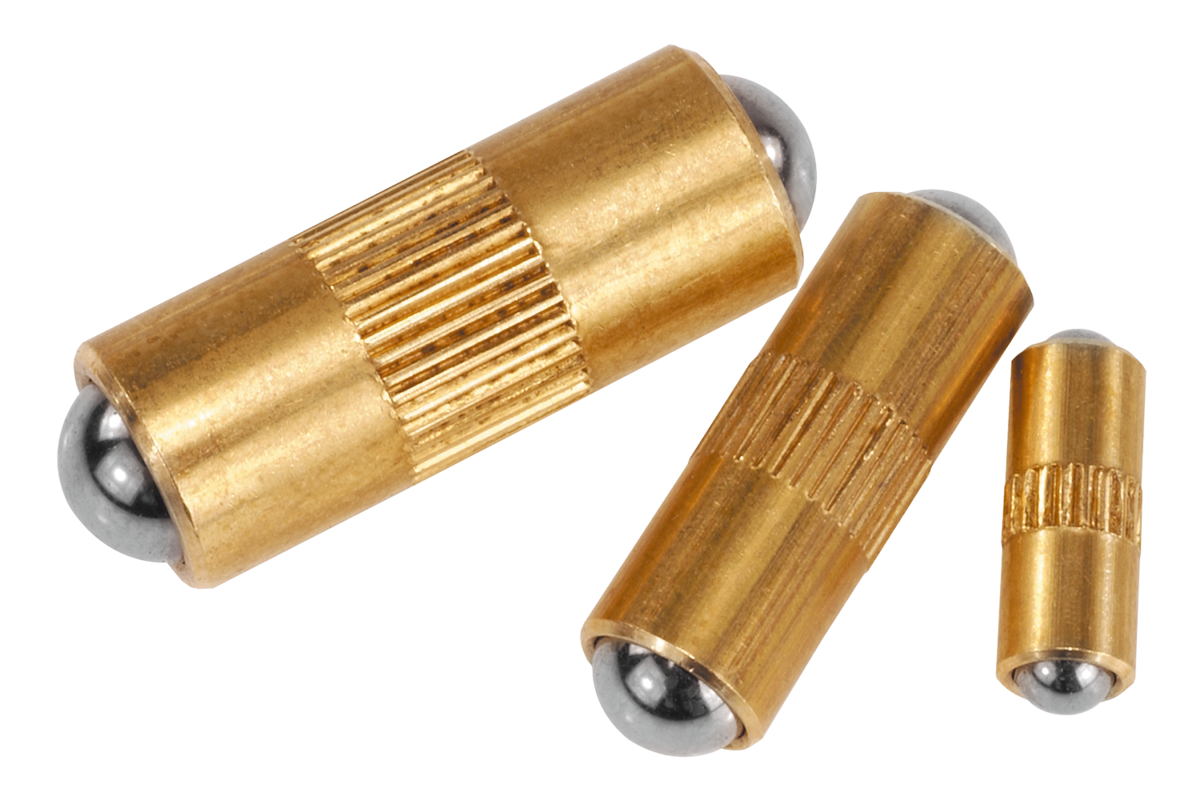

Spring Plungers smooth surface, double-sided
  • Spring Plungers smooth surface, double-sided
  • Spring Plungers smooth surface, double-sided
  • Spring Plungers smooth surface, double-sided
DescriptionMaterial:Sleeve brass. Ball and spring stainless steel.Version:Balls hardened, bright.Drawing reference:
1) knurl

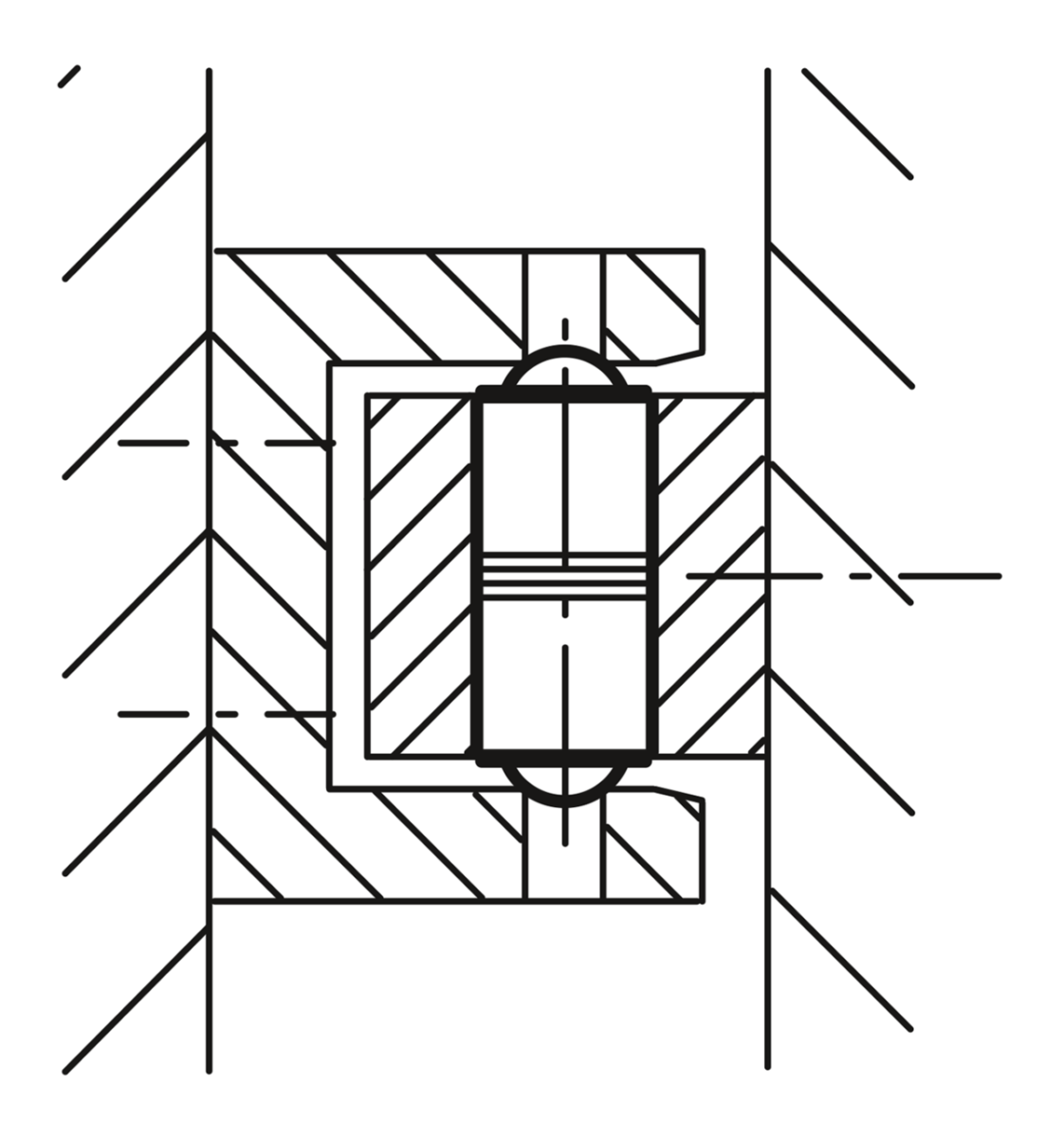

Drawings

Spring Plungers smooth surface, double-sided

Item selection/filter

Order No.

DD1D2LHSpring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0337.04434,05100,937 on request
K0337.05545,05121,248 on request
K0337.06656,05161,6610 on request
K0337.08868,05202812 on request
K0337.1010810,05242,91016 on request
