Adjustable Tension Levers external thread
K0108

Adjustable Tension Levers external thread

go back

Item description/product images

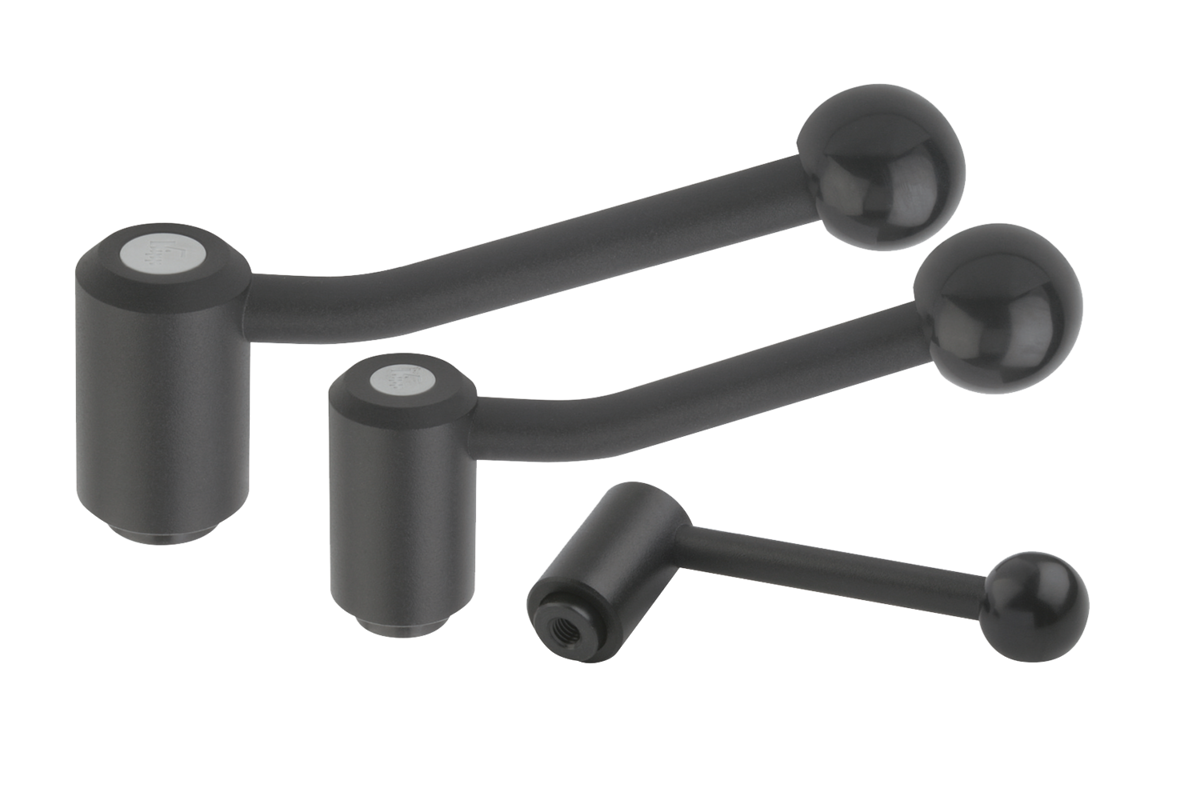

Adjustable Tension Levers external thread
  • Adjustable Tension Levers external thread
  • Adjustable Tension Levers external thread
  • Adjustable Tension Levers external thread
  • Adjustable Tension Levers external thread
  • Adjustable Tension Levers external thread
DescriptionMaterial:Steel parts quality class 5.8.
Ball knob black plastic, press fit.
Version:Powder-coated with fine texture, blackOn request:Other internal threads and special versions.
Dimension "H1", "A" and "A1" available in other lengths at an additional charge.
Drawing reference:
1) flat point DIN 78
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0108 Adjustable Tension Levers external thread 261 kB

Drawings (total overview)

Adjustable Tension Levers external thread

Adjustable Tension Levers, with external thread, inch, 0 degree

More information

Drawings

Adjustable Tension Levers, with external thread, inch, 0 degree

Overview of items (compressed)

Item selection/filter
Item No.StyleSizeXDD1D2D3HH1H2H4A1No. of
teeth
LFilter
K0108.1A32X15/16-181624251044,54,53749,5922220/25/30/40/50/60
K0108.1A42X13/8-161624251044,54,53749,5922220/25/30/40/50/60
K0108.1A52X11/2-131624251044,54,53749,5922220/25/30/40/50/60
K0108.2A52X21/2-131928321251,55,54257,51112420/25/30/40/50/60
K0108.3A52X31/2-13233332135864765134,52620/25/30/40/50/60
K0108.3A62X35/8-11233332135864765134,52620/25/30/40/50/60
K0108.4A62X45/8-113041321368,57,556,576,51343630/40/50/60
K0108.4A72X43/4-103041321368,57,556,576,51343630/40/50/60

Adjustable Tension Levers, with external thread, inch, 20 degrees

More information

Drawings

Adjustable Tension Levers, with external thread, inch, 20 degrees

Overview of items (compressed)

Item selection/filter
Item No.StyleSizeXDD1D2D3HH1H2H3H4AA2No. of
teeth
LFilter
K0108.1A31X20°15/16-181624251044,54,53758,549,588152220/25/30/40/50/60
K0108.1A41X20°13/8-161624251044,54,53758,549,588152220/25/30/40/50/60
K0108.1A51X20°11/2-131624251044,54,53758,549,588152220/25/30/40/50/60
K0108.2A51X20°21/2-131928321251,55,54268,557,5106152420/25/30/40/50/60
K0108.3A51X20°31/2-1323333213586478165128,5152620/25/30/40/50/60
K0108.3A61X20°35/8-1123333213586478165128,5152620/25/30/40/50/60
K0108.4A61X20°45/8-113041321368,57,556,589,576,5128,5153630/40/50/60
K0108.4A71X20°43/4-103041321368,57,556,589,576,5128,5153630/40/50/60

Adjustable Tension Levers, with external thread, metric, 0 degree

More information

Drawings

Adjustable Tension Levers, with external thread, metric, 0 degree

Overview of items (compressed)

Item selection/filter
Item No.StyleSizeXDD1D2D3HH1H2H4A1No. of
teeth
LFilter
K0108.1082X1M81624251044,54,53749,5922215/20/25/30/40/50/60
K0108.1102X1M101624251044,54,53749,5922215/20/25/30/40/50/60
K0108.1122X1M121624251044,54,53749,5922215/20/25/30/40/50/60
K0108.2122X2M121928321251,55,54257,51112420/25/30/40/50/60
K0108.3122X3M12233332135864765134,52620/25/30/40/50/60/70/80/90
K0108.3162X3M16233332135864765134,52620/25/30/40/50/60/70/80/90
K0108.4162X4M163041321368,57,556,576,51343630/40/50/60/70/80/90
K0108.4202X4M203041321368,57,556,576,51343630/40/50/60/70/80/90
K0108.4242X4M243041321368,57,556,576,51343630/40/50/60/70/80/90

Adjustable Tension Levers, with external thread, metric, 20 degrees

More information

Drawings

Adjustable Tension Levers, with external thread, metric, 20 degrees

Overview of items (compressed)

Item selection/filter
Item No.StyleSizeXDD1D2D3HH1H2H3H4AA2No. of
teeth
LFilter
K0108.1081X20°1M81624251044,54,53758,549,588152215/20/25/30/40/50/60
K0108.1101X20°1M101624251044,54,53758,549,588152215/20/25/30/40/50/60
K0108.1121X20°1M121624251044,54,53758,549,588152215/20/25/30/40/50/60
K0108.2121X20°2M121928321251,55,54268,557,5106152420/25/30/40/50/60
K0108.3121X20°3M1223333213586478165128,5152620/25/30/40/50/60/70/80/90
K0108.3161X20°3M1623333213586478165128,5152620/25/30/40/50/60/70/80/90
K0108.4161X20°4M163041321368,57,556,589,576,5128,5153630/40/50/60/70/80/90
K0108.4201X20°4M203041321368,57,556,589,576,5128,5153630/40/50/60/70/80/90
K0108.4241X20°4M243041321368,57,556,589,576,5128,5153630/40/50/60/70/80/90
