Cam Levers with external thread, metric

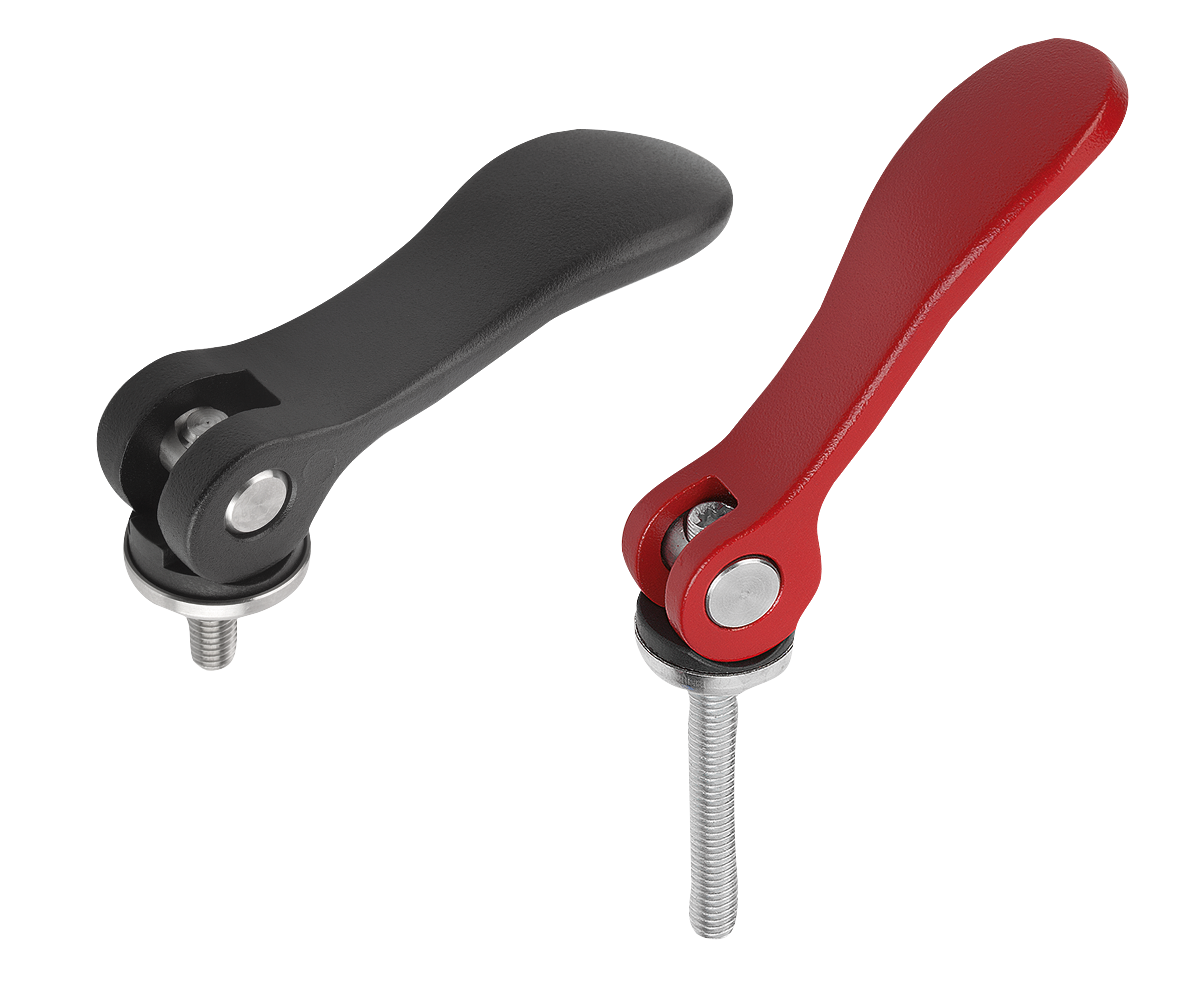

  • Cam Levers with external thread, metric
  • Cam Levers with external thread, metric
DescriptionMaterial:Handles cast aluminum EN AC-46200.
Thrust washer plastic PA 66 GF 35-X fibreglass reinforced.
Hinge pin stainless steel 1.4305.
Studs and washer steel quality class 5.8 or stainless steel 1.4305.
Version:Handle black powder-coated;
thrust washer black;
hinge pin natural finish;
threaded stud and washer in steel blue chromate or stainless steel natural finish
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0005_AG Metric Cam Levers with external thread, metric 294 kB

Drawings

Cam Levers with external thread, metric

Overview of items (compressed)

Item selection/filter
Item No.
Steel
Item No.
Stainless steel
DD1D2BB1HH1AA1LStroke
S
Clamping force
F
(kN)
Hand force
FH
N
Filter
K0005.9501103XK0005.9511103XM312614,411,591336,241,710/15/3011,590
K0005.9501104XK0005.9511104XM412614,411,591336,241,710/15/3011,590
K0005.0501104XK0005.0511104XM415,48181311,21752,359,115/20/3012,5100
K0005.0501105XK0005.0511105XM515,48181311,21752,359,120/30/40/5012,5100
K0005.1501105XK0005.1511105XM518,1921,51514,52270,479,220/30/40/501,24120
K0005.1501106XK0005.1511106XM618,1921,51514,52270,479,220/30/40/501,24120
K0005.2501108XK0005.2511108XM827,11133,3241828,59610825/30/40/501,58350
K0005.2501110XK0005.2511110XM1027,11133,3241828,59610825/30/40/501,58350
