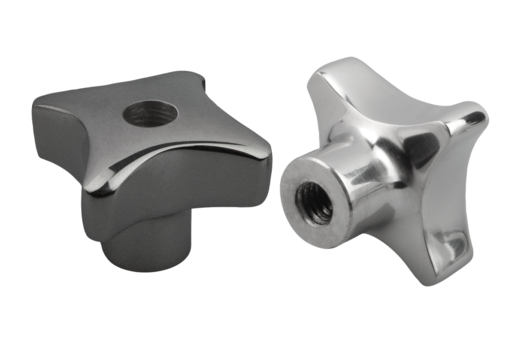

Palm Grips in stainless steel similar to DIN 6335, Style D, metric
K0146_D Metric

Palm Grips in stainless steel similar to DIN 6335, Style D,...

go back

Item description/product images

DescriptionMaterial:

Stainless steel 1.4308 (AISI "316" equivalent).

Version:Ground and polished or blasted.On request:With external thread.Drawing reference:
Style D: tapped and drilled
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0146_D Metric Palm Grips in stainless steel similar to DIN 6335, Style D, metric 180 kB

Drawings

Palm Grips in stainless steel similar to DIN 6335, Style D, metric

Item selection/filter

Order No.styleSurface finish
body
D

D1D2D6HH3TCADAcc.PriceOrder
K0146.4032062DpolishedM632126,4211011 14.72 $ (USD)
K0146.4040082DpolishedM840148,4261414 18.65 $ (USD)
K0146.4050102DpolishedM10501810,5342018 22.03 $ (USD)
K0146.4063122DpolishedM12632013422522 27.03 $ (USD)
K0146.4032063DblastedM632126,4211011 13.27 $ (USD)
K0146.4040083DblastedM840148,4261414 16.76 $ (USD)
K0146.4050103DblastedM10501810,5342018 19.80 $ (USD)
K0146.4063123DblastedM12632013422522 24.32 $ (USD)
