Quick-Acting Star Grips
K0156

Quick-Acting Star Grips

go back

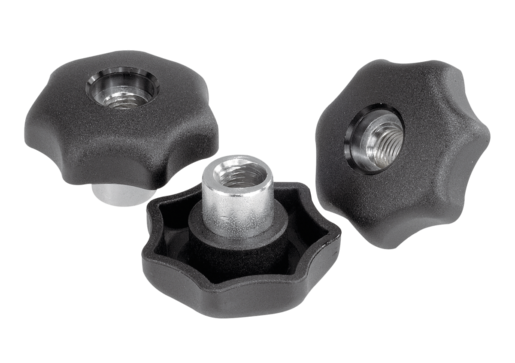

Item description/product images

DescriptionMaterial:Black thermoplastic.
bushing steel.
Version:bushing trivalent blue passivatedNote:Quick-acting star grips can be used on all fixtures that do not require a high clamping force.
Tilt the grip to slide on, then straighten it to engage the threads.

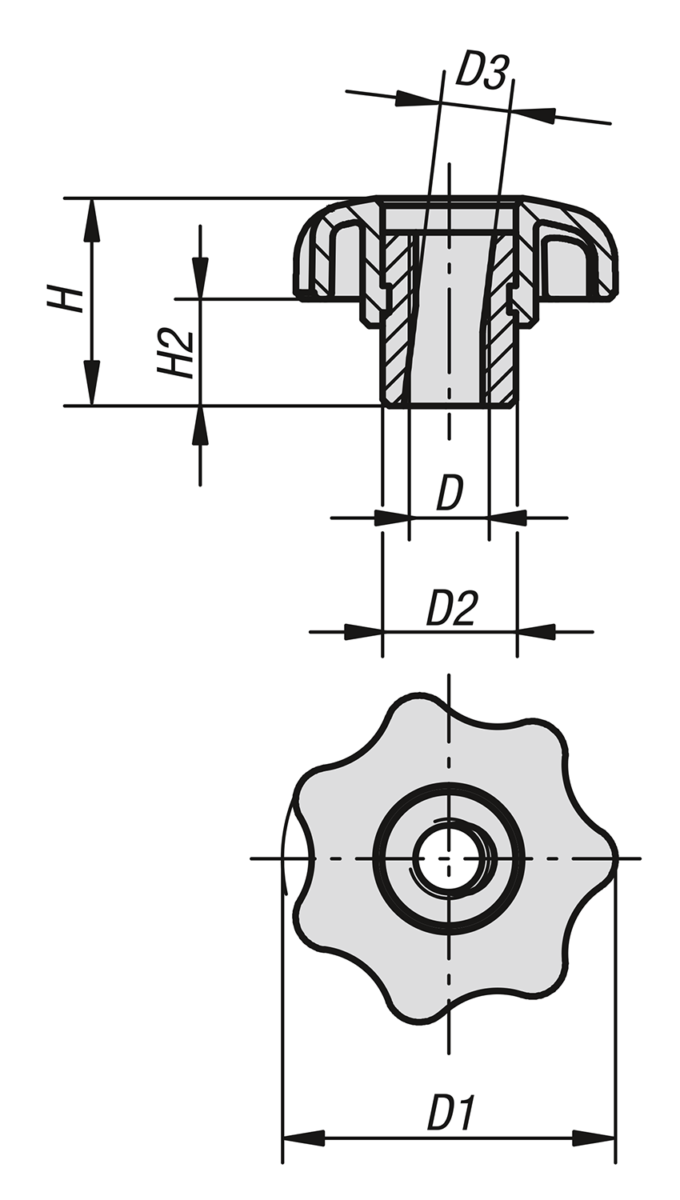

Drawing reference:
X: The stud should be several mm longer than height “H”
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0156 Quick-Acting Star Grips 256 kB

Drawings

Quick-Acting Star Grips

Item selection/filter

Item No.

DD1D2D3HH2CADAcc.PriceOrder
K0156.05M525105,216,69 10.17 $ (USD)
K0156.06M63213,56,220,611 10.23 $ (USD)
K0156.08M84013,58,324,513 10.39 $ (USD)
K0156.10M10501910,331,217 11.23 $ (USD)
K0156.12M12631912,739,321 15.14 $ (USD)
