Spring Plungers smooth surface, double-sided
 K0337

Spring Plungers smooth surface, double-sided

 go back

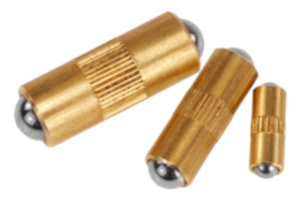

Item description/product images
DescriptionMaterial:body brass.

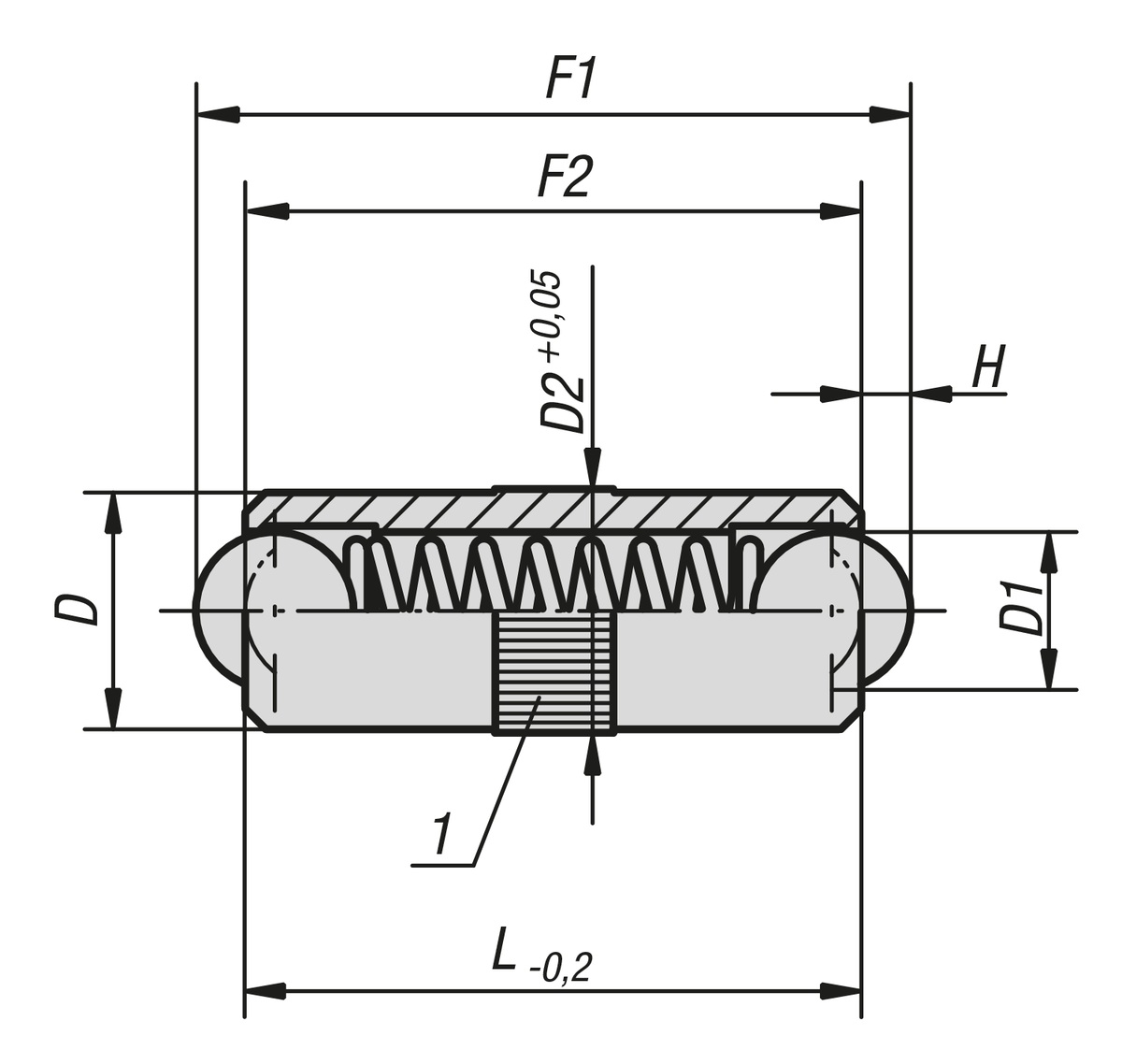

Ball and spring stainless steel.Version:Balls hardened, bright.Drawing reference:
1) knurl
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet K0337 Spring Plungers smooth surface, double-sided 250 kB

Drawings

Spring Plungers smooth surface, double-sided

Item selection/filter
Item No.

DD1D2LHSpring force
initial pressure
F1 approx. N		Spring force
final pressure
F2 approx. N		CADAcc.PriceOrder
K0337.04434,05100,937 3.98 $ (USD)
K0337.05545,05121,248 4.16 $ (USD)
K0337.06656,05161,6610 4.42 $ (USD)
K0337.08868,05202812 4.93 $ (USD)
K0337.1010810,05242,91016 6.56 $ (USD)
K0337.0252,522,5560,651,52,85.59 $ (USD)
K0337.0332,53,0580,82,565.15 $ (USD)
