Spring Plungers push fit, with o-ring seal
K0582

Spring Plungers push fit, with o-ring seal

go back

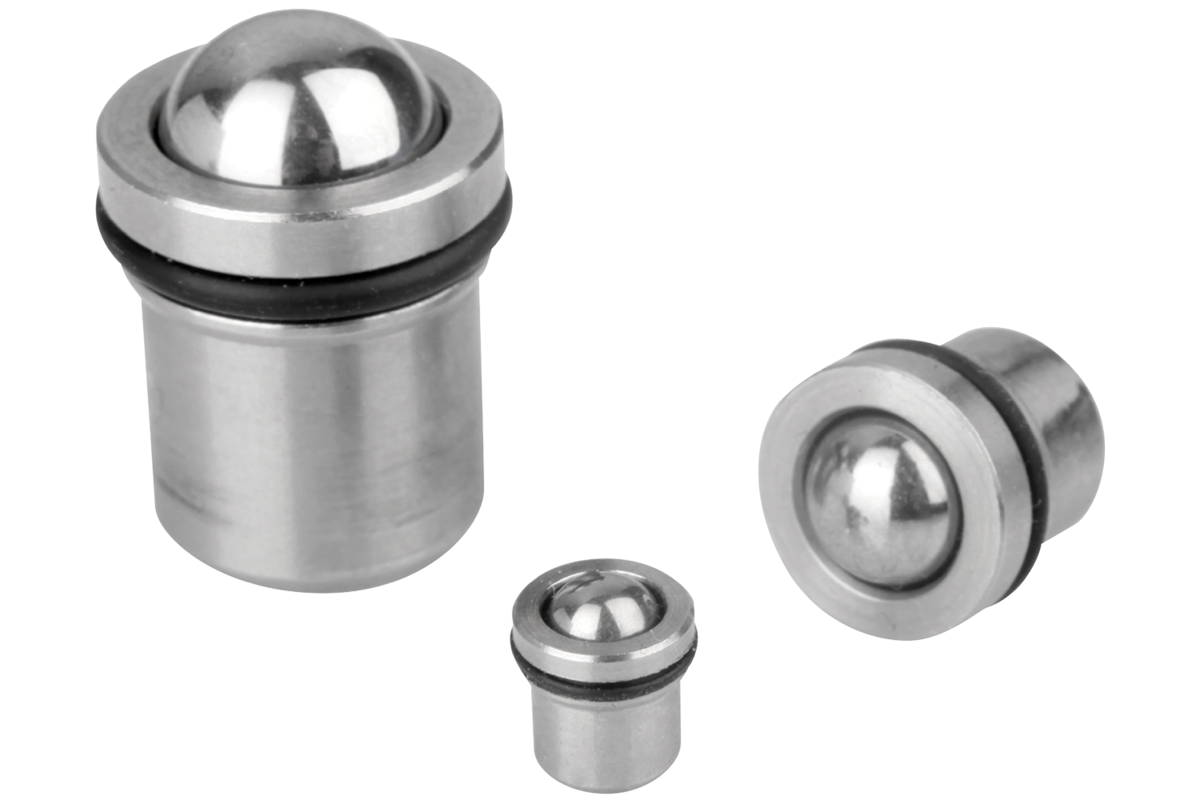

Item description/product images

DescriptionMaterial:body, spring and ball stainless steel.
O-ring NBR.
Version:body bright.
Ball hardened, bright.
O-ring black.
Note:These spring plungers with O-ring are suitable for overhead installation or for installing in difficult to access positions.

They can be pressed into the location hole by hand or using simple assembly tools. The O-ring holds the plunger in place and prevents it falling out. Other components can be easily installed without the need for further assembly aids.
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K0582 Spring Plungers push fit, with o-ring seal 229 kB

Drawings

Spring Plungers push fit, with o-ring seal

Item selection/filter

Item No.

DD1D2D3D4HLL1L2L3L4Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0582.054,953454,10,8510,72,30,737 3.50 $ (USD)
K0582.065,954565,11610,72,30,747 3.35 $ (USD)
K0582.087,955686,11,571,51,23,71612 3.70 $ (USD)
K0582.109,956,58108,11,8921,24,21,5612 4.21 $ (USD)
K0582.1211,958101210,12,713,52,51,85,321020 4.82 $ (USD)
K0582.1413,9510121412,13,5162,51,85,521525 7.78 $ (USD)
