Product groups
Cylindrical pins with internal threadDIN EN ISO 8735
K1909

Cylindrical pins with internal thread DIN EN ISO 8735

go back

Item description/product images

DescriptionMaterial:Tool steel 1.2067Version:Case hardened, hardness 60 ±2 HRC.
Annealed, ground and lapped.
Note:Tapped cylindrical pins are chiefly used in blind holes. The milled flat prevents air compression in blind holes. The tapping makes it possible to use the extractor K0873.Drawing reference:
1) ground flat
Special features:
RoHS

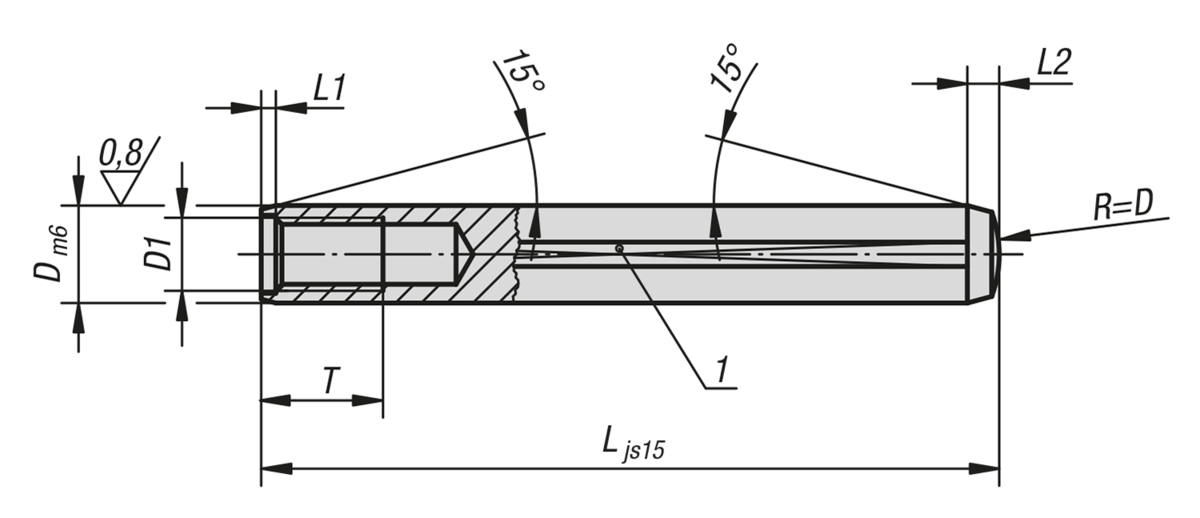

Drawings

Cylindrical pins with internal threadDIN EN ISO 8735

Overview of items (compressed)

Item selection/filter
Order No.

DLD1TL1 ca.L2 ca.Filter
K1909.05X516/20/24/28/32/36/40/45M360,61,7
K1909.06X616/18/20/24/28/32/36/40/45/50/55/60M460,82,1
K1909.08X820/24/28/32/36/40/45/50/55/60/70/80/90/100M5812,6
K1909.10X1020/24/28/32/36/40/45/50/55/60/70/80/90/100M6101,23
K1909.12X1232/36/40/45/50/55/60/70/80/90/100/120M6101,63,8
K1909.14X1432/36/40/45/50/55/60/70/80/90/100/120M8121,84
K1909.16X1640/45/50/55/60/70/80/90/100/120M81224,7
K1909.20X2045/50/55/60/70/80/90/100/120M10162,56
