Rubber-metal impact buffer rails

go back

News
- NEW Product Innovations
  - Rubber-metal impact buffer rails

Item description/product images

DescriptionMaterial:Steel.
Elastomer, natural rubber, medium hardness, Shore 57A.Version:Steel, painted black.
(K1932.02501904557, K1932.05003507057 and K1932.10004512057 electro zinc-plated).Note:For absorbing large impact forces and supporting heavy weights.

The indicated load data apply for static long-term loading on rubber with a Shore hardness 57A.

* Metal part 30 mm wide.

Temperature range:-30 °C to +80 °CSpecial features:

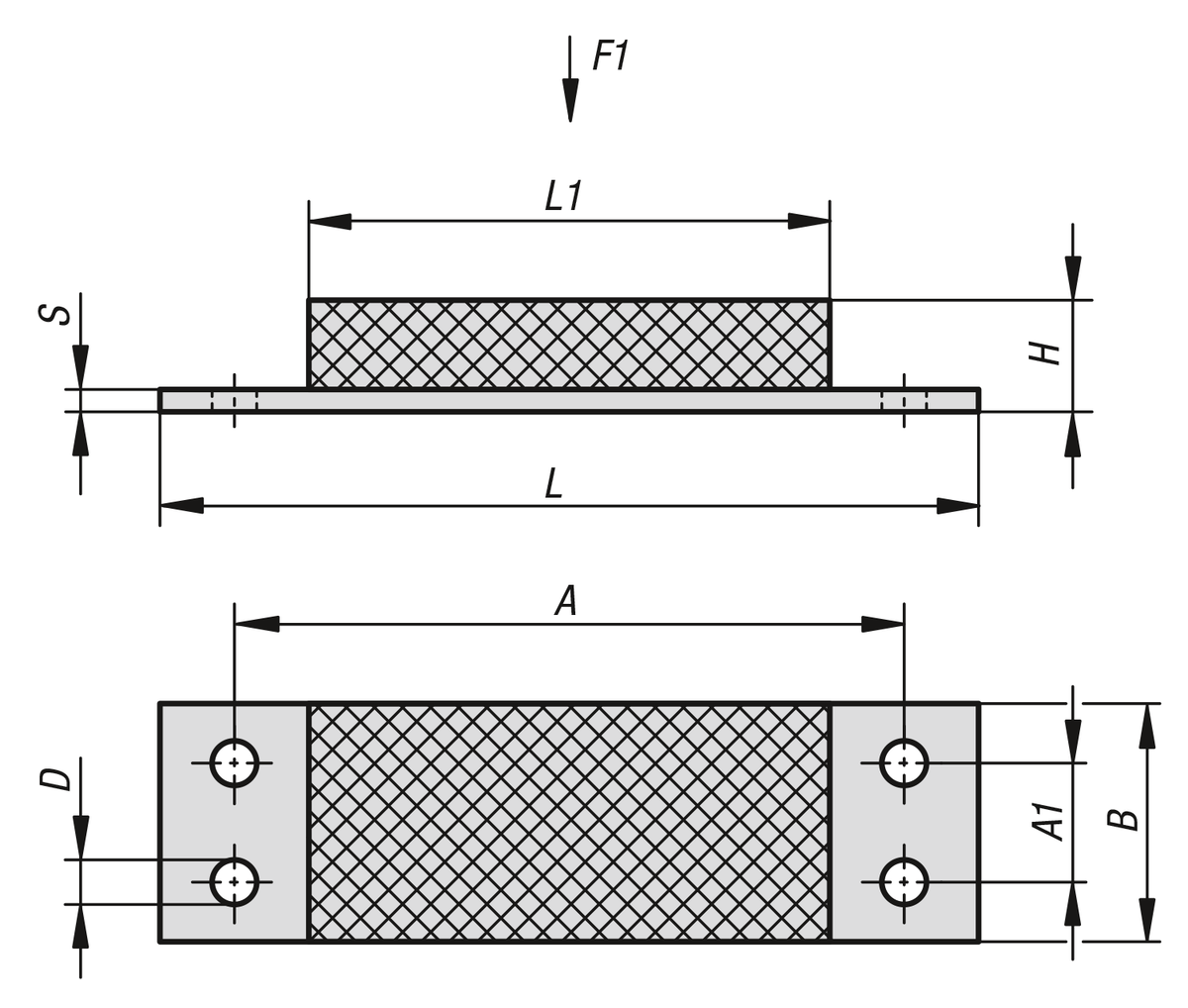

Drawings

Item selection/filter

Order No.	A	A1	B	D	H	L	L1	S	F1 N	Price
K1932.02501904557	68,6	-	25*	6,5	19	84	45	3	500	10.19 $ (USD)
K1932.05003507057	100	-	50	8,5	35	130	70	5	3100	42.55 $ (USD)
K1932.05007007057	100	-	50	8,5	70	130	70	5	2500	66.35 $ (USD)
K1932.10004512057	160	50	100	13	45	200	120	10	14000	116.32 $ (USD)
K1932.10008012057	160	50	100	13	80	200	120	10	8500	166.32 $ (USD)
K1932.12004515057	200	60	120	15	45	250	150	10	18000	129.06 $ (USD)
K1932.15005020057	250	80	150	17	50	300	200	15	34000	256.93 $ (USD)
