Clevis joints for rod ends

go back

News
- NEW Product Innovations
  - Clevis joints for rod ends

Item description/product images

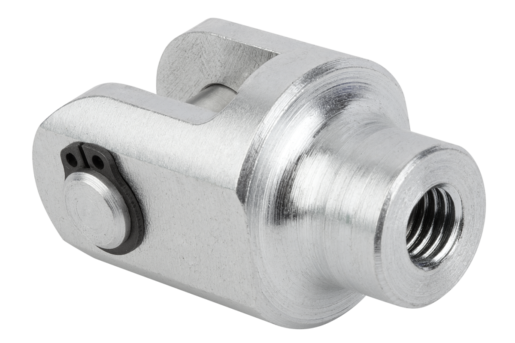

DescriptionMaterial:Clevis and pin, steel 1.7225Version:Electro zinc-plated.Note:These clevises were developed as accessories for rod ends. The clevis opening size C was chosen to accept rod end joints.

Suitable for rod ends K0716 / K0717 / K0718 / K0719 / K1465 / K1466.

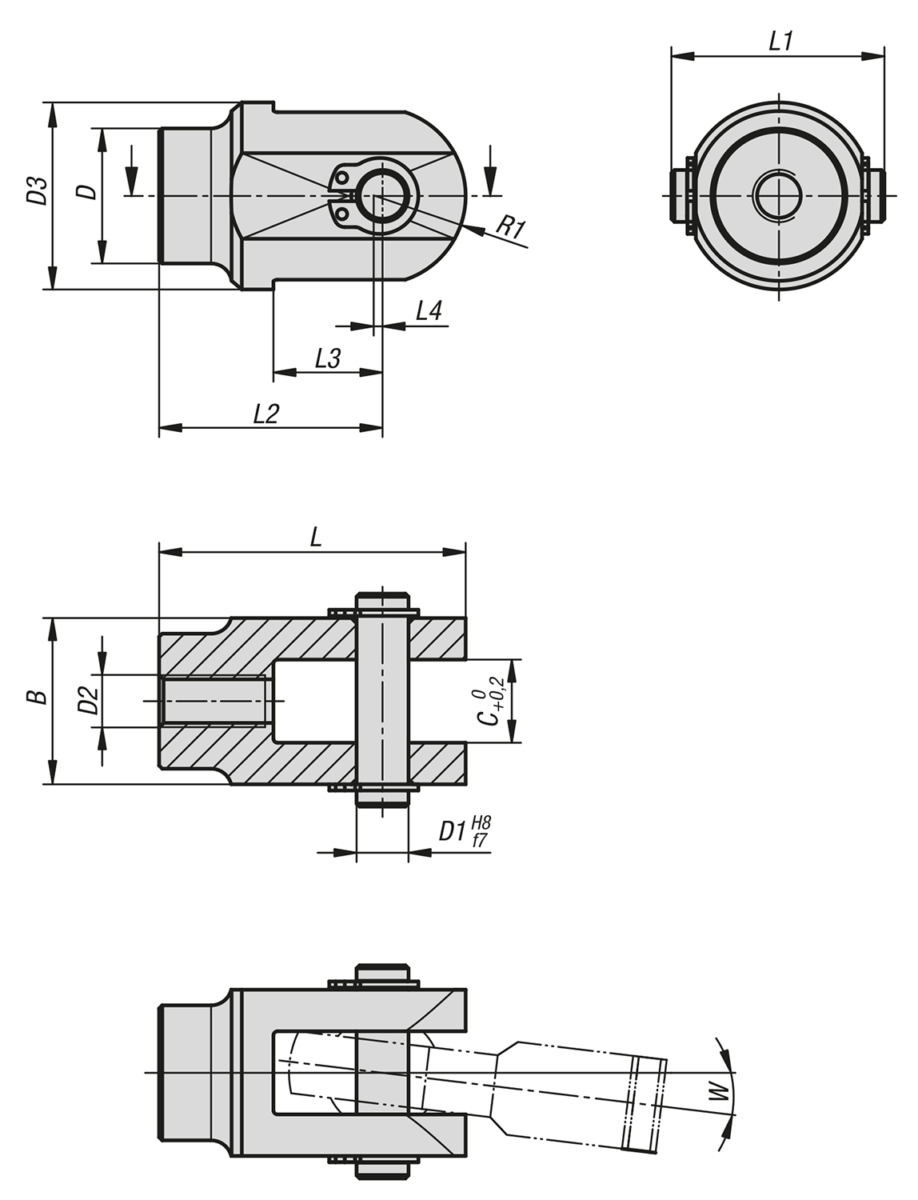

Drawings

Item selection/filter

Order No.	B	C	D	D1	D2	D3	L	L1	L2	L3	L4	R1	W°	F static kN	Price
K1934.05080516	16	8	13	5	M5	18	29,5	20,5	21,5	10,5	0,5	8,5	6,5	8	38.20 $ (USD)
K1934.06090618	18	9	15	6	M6	20	33,5	22,9	25	11,5	0,5	9	7	9	41.04 $ (USD)
K1934.08120820	20	12	17	8	M8	24	41	24,9	31,5	13,5	1	10,5	8	14,5	41.60 $ (USD)
K1934.10141025	25	14	21	10	M10	28	49,5	30,3	38	16	1	12,5	8	19,5	45.34 $ (USD)
K1934.12161229	29	16	25	12	M12	32	57,5	34,3	44	18	1,5	15	8	23,5	50.35 $ (USD)
K1934.16211638	38	21	30	16	M16	42	76,5	43,3	58	23,5	1,5	20	9	32	79.99 $ (USD)
K1934.20252045	45	25	38	20	M20	50	90,5	51,9	68	29,5	-	22,5	9	43	146.86 $ (USD)
