Axial joints for tractive forces adjustable, Form D

K1936_D

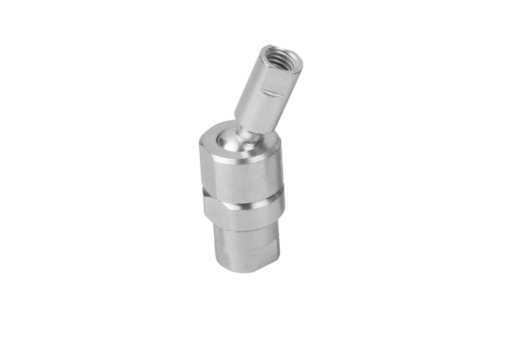

Axial joints for tractive forces adjustable, Form D

News
- NEW Product Innovations
  - Axial joints for tractive forces adjustable
    - Axial joints for tractive forces adjustable, Form D

Item description/product images

DescriptionMaterial:Steel.Version:Ball thrust pins trivalent passivated.
Ball seat and nuts electro zinc-plated.Note:Axial joint suitable for taking up tractive forces. The ball's movement can be controlled or fully locked in position using the clamping nut.

Drawings

Axial joints for tractive forces adjustable, Form D

Item selection/filter

Order No.	Form	D1	D2	A	L	E	α	F kN	M Nm	Tightening torque max. Nm	CAD	Acc.	Price	Order
K1936.41006	D	10	M6	25	23,5	12	20°	2,5	5,2	12,4			43.68 $ (USD)
K1936.41308	D	13	M8	30	29,5	16	24°	5	8,8	13,2			52.43 $ (USD)
K1936.41610	D	16	M10	35	36	20	28°	7,5	14,5	16,4			58.24 $ (USD)

Other items in this category

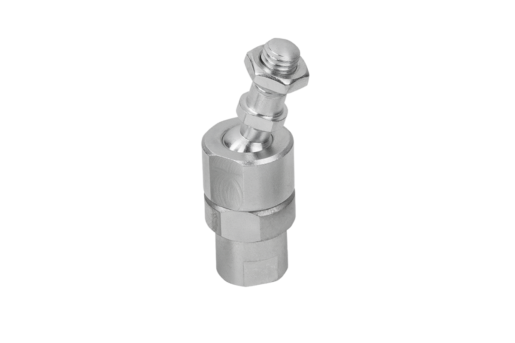

Axial joints for tractive forces adjustable, Form A
