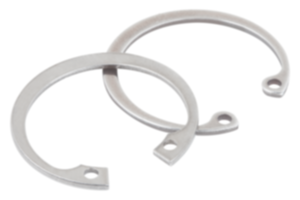

K1939Circlips for bores DIN 472 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Spring steel or 1.4122 stainless steel.Version:Phosphated spring steel.
Bright stainless steel.Note:DIN 472 circlips are retaining rings which are mounted in a groove in a bore. They can withstand high axial forces between machine elements (e.g. bearings) and the groove in the ID in which the ring is mounted.Drawing reference:Special features: |
| Order No. | Main
material | A | B | D1 | D2 | D3 | D4 | D5 | H | M | CAD | Acc. | Price | Order |
|---|
| K1939.080800 | steel | 2,4 | 1,1 | 8 | 8,4 | 8,7 | 3 | 1 | 0,8 | 0,9 |  | | 0.23 $ (USD) | | | K1939.091000 | steel | 2,5 | 1,3 | 9 | 9,4 | 9,8 | 3,7 | 1 | 0,8 | 0,9 | | | 0.23 $ (USD) | | | K1939.101000 | steel | 3,2 | 1,4 | 10 | 10,4 | 10,8 | 3,3 | 1,2 | 1 | 1,1 | | | 0.23 $ (USD) | | | K1939.121000 | steel | 3,4 | 1,7 | 12 | 12,5 | 13 | 4,9 | 1,5 | 1 | 1,1 | | | 0.26 $ (USD) | | | K1939.141000 | steel | 3,7 | 1,9 | 14 | 14,6 | 15,1 | 6,2 | 1,7 | 1 | 1,1 | | | 0.30 $ (USD) | | | K1939.151000 | steel | 3,7 | 2 | 15 | 15,7 | 16,2 | 7,2 | 1,7 | 1 | 1,1 | | | 0.30 $ (USD) | | | K1939.161000 | steel | 3,8 | 2 | 16 | 16,8 | 17,3 | 8 | 1,7 | 1 | 1,1 | | | 0.35 $ (USD) | | | K1939.171000 | steel | 3,9 | 2,1 | 17 | 17,8 | 18,3 | 8,8 | 1,7 | 1 | 1,1 | | | 0.37 $ (USD) | | | K1939.181000 | steel | 4,1 | 2,2 | 18 | 19 | 19,5 | 9,4 | 2 | 1 | 1,1 | | | 0.37 $ (USD) | | | K1939.191000 | steel | 4,1 | 2,2 | 19 | 20 | 20,5 | 10,4 | 2 | 1 | 1,1 | | | 0.37 $ (USD) | | | K1939.201000 | steel | 4,2 | 2,3 | 20 | 21 | 21,5 | 11,2 | 2 | 1 | 1,1 | | | 0.40 $ (USD) | | | K1939.221000 | steel | 4,2 | 2,5 | 22 | 23 | 23,5 | 13,2 | 2 | 1 | 1,1 | | | 0.56 $ (USD) | | | K1939.241200 | steel | 4,4 | 2,6 | 24 | 25,2 | 25,9 | 14,8 | 2 | 1,2 | 1,3 | | | 0.65 $ (USD) | | | K1939.251200 | steel | 4,5 | 2,7 | 25 | 26,2 | 26,9 | 15,5 | 2 | 1,2 | 1,3 | | | 0.72 $ (USD) | | | K1939.261200 | steel | 4,7 | 2,8 | 26 | 27,2 | 27,9 | 16,1 | 2 | 1,2 | 1,3 | | | 0.81 $ (USD) | | | K1939.281200 | steel | 4,8 | 2,9 | 28 | 29,4 | 30,1 | 17,9 | 2 | 1,2 | 1,3 | | | 0.84 $ (USD) | | | K1939.301200 | steel | 4,8 | 3 | 30 | 31,4 | 32,1 | 19,9 | 2 | 1,2 | 1,3 | | | 0.88 $ (USD) | | | K1939.321200 | steel | 5,4 | 3,2 | 32 | 33,7 | 34,4 | 20,6 | 2,5 | 1,2 | 1,3 | | | 1.07 $ (USD) | | | K1939.351500 | steel | 5,4 | 3,4 | 35 | 37 | 37,8 | 23,6 | 2,5 | 1,5 | 1,6 | | | 1.42 $ (USD) | | | K1939.381500 | steel | 5,5 | 3,7 | 38 | 40 | 40,8 | 26,4 | 2,5 | 1,5 | 1,6 | | | 1.45 $ (USD) | | | K1939.401750 | steel | 5,8 | 3,9 | 40 | 42,5 | 43,5 | 27,8 | 2,5 | 1,75 | 1,85 | | | 2.40 $ (USD) | | | K1939.451750 | steel | 6,2 | 4,3 | 45 | 47,5 | 48,5 | 32 | 2,5 | 1,75 | 1,85 | | | 2.49 $ (USD) | | | K1939.471750 | steel | 6,4 | 4,4 | 47 | 49,5 | 50,5 | 33,5 | 2,5 | 1,75 | 1,85 | | | 3.22 $ (USD) | | | K1939.502000 | steel | 6,5 | 4,6 | 50 | 53 | 54,2 | 36,3 | 2,5 | 2 | 2,15 | | | 3.27 $ (USD) | | | K1939.552000 | steel | 6,8 | 5 | 55 | 58 | 59,2 | 40,7 | 2,5 | 2 | 2,15 | | | 3.43 $ (USD) | | | K1939.602000 | steel | 7,3 | 5,4 | 60 | 63 | 64,2 | 44,7 | 2,5 | 2 | 2,15 | | | 3.62 $ (USD) | | | K1939.752500 | steel | 7,8 | 6,6 | 75 | 78 | 79,5 | 58,6 | 3 | 2,5 | 2,65 | | | 5.23 $ (USD) | | | K1939.080801 | stainless steel | 2,4 | 1,1 | 8 | 8,4 | 8,7 | 3 | 1 | 0,8 | 0,9 | | | 0.84 $ (USD) | | | K1939.091001 | stainless steel | 2,5 | 1,3 | 9 | 9,4 | 9,8 | 3,7 | 1 | 0,8 | 0,9 | | | 0.98 $ (USD) | | | K1939.101001 | stainless steel | 3,2 | 1,4 | 10 | 10,4 | 10,8 | 3,3 | 1,2 | 1 | 1,1 | | | 1.07 $ (USD) | | | K1939.121001 | stainless steel | 3,4 | 1,7 | 12 | 12,5 | 13 | 4,9 | 1,5 | 1 | 1,1 | | | 1.16 $ (USD) | | | K1939.141001 | stainless steel | 3,7 | 1,9 | 14 | 14,6 | 15,1 | 6,2 | 1,7 | 1 | 1,1 | | | 1.19 $ (USD) | | | K1939.151001 | stainless steel | 3,7 | 2 | 15 | 15,7 | 16,2 | 7,2 | 1,7 | 1 | 1,1 | | | 1.28 $ (USD) | | | K1939.161001 | stainless steel | 3,8 | 2 | 16 | 16,8 | 17,3 | 8 | 1,7 | 1 | 1,1 | | | 1.38 $ (USD) | | | K1939.171001 | stainless steel | 3,9 | 2,1 | 17 | 17,8 | 18,3 | 8,8 | 1,7 | 1 | 1,1 | | | 1.52 $ (USD) | | | K1939.191001 | stainless steel | 4,1 | 2,2 | 19 | 20 | 20,5 | 10,4 | 2 | 1 | 1,1 | | | 1.66 $ (USD) | | | K1939.201001 | stainless steel | 4,2 | 2,3 | 20 | 21 | 21,5 | 11,2 | 2 | 1 | 1,1 | | | 1.73 $ (USD) | | | K1939.221001 | stainless steel | 4,2 | 2,5 | 22 | 23 | 23,5 | 13,2 | 2 | 1 | 1,1 | | | 2.07 $ (USD) | | | K1939.241201 | stainless steel | 4,4 | 2,6 | 24 | 25,2 | 25,9 | 14,8 | 2 | 1,2 | 1,3 | | | 2.43 $ (USD) | | | K1939.251201 | stainless steel | 4,5 | 2,7 | 25 | 26,2 | 26,9 | 15,5 | 2 | 1,2 | 1,3 | | | 2.61 $ (USD) | | | K1939.261201 | stainless steel | 4,7 | 2,8 | 26 | 27,2 | 27,9 | 16,1 | 2 | 1,2 | 1,3 | | | 2.70 $ (USD) | | | K1939.281201 | stainless steel | 4,8 | 2,9 | 28 | 29,4 | 30,1 | 17,9 | 2 | 1,2 | 1,3 | | | 2.78 $ (USD) | | | K1939.301201 | stainless steel | 4,8 | 3 | 30 | 31,4 | 32,1 | 19,9 | 2 | 1,2 | 1,3 | | | 2.89 $ (USD) | | | K1939.321201 | stainless steel | 5,4 | 3,2 | 32 | 33,7 | 34,4 | 20,6 | 2,5 | 1,2 | 1,3 | | | 3.03 $ (USD) | | | K1939.351501 | stainless steel | 5,4 | 3,4 | 35 | 37 | 37,8 | 23,6 | 2,5 | 1,5 | 1,6 | | | 3.12 $ (USD) | | | K1939.381501 | stainless steel | 5,5 | 3,7 | 38 | 40 | 40,8 | 26,4 | 2,5 | 1,5 | 1,6 | | | 3.57 $ (USD) | | | K1939.401751 | stainless steel | 5,8 | 3,9 | 40 | 42,5 | 43,5 | 27,8 | 2,5 | 1,75 | 1,85 | | | 3.90 $ (USD) | | | K1939.451751 | stainless steel | 6,2 | 4,3 | 45 | 47,5 | 48,5 | 32 | 2,5 | 1,75 | 1,85 | | | 4.59 $ (USD) | | | K1939.502001 | stainless steel | 6,5 | 4,6 | 50 | 53 | 54,2 | 36,3 | 2,5 | 2 | 2,15 | | | 4.74 $ (USD) | | | K1939.552001 | stainless steel | 6,8 | 5 | 55 | 58 | 59,2 | 40,7 | 2,5 | 2 | 2,15 | | | 4.85 $ (USD) | | | K1939.602001 | stainless steel | 7,3 | 5,4 | 60 | 63 | 64,2 | 44,7 | 2,5 | 2 | 2,15 | | | 5.90 $ (USD) | | | K1939.752501 | stainless steel | 7,8 | 6,6 | 75 | 78 | 79,5 | 58,6 | 3 | 2,5 | 2,65 | | | 12.36 $ (USD) | |
|
|
