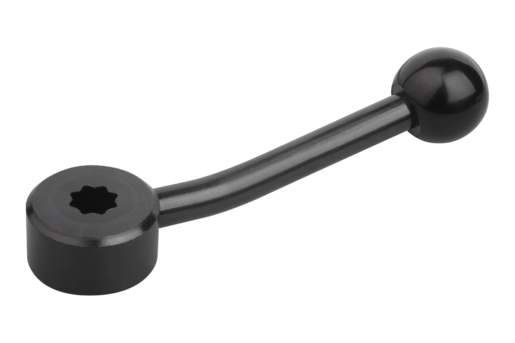

Item description/product images

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black thermoset PF 31Version:Black oxidised.Note:Flat tension levers can be used for simple clamping or control operations. Where applicable, there must be enough space available so that the grip can be rotated 360°.
The version with star socket is designed to allow a 45° change of position.On request:Other female threads, reamed holes and star sockets.
Dimension “A” available in other lengths at extra charge.Special features:

Drawings

Item selection/filter

Order No.	Kind of fastening	SW	A=Handle length	A1	D	D1	D2	H	H1	H2	Price
K0177.305	star socket	5,5	75	15	25	8	20	14	22	8,5	46.78 $ (USD)
K0177.307	star socket	7	75	15	25	8	20	14	22	8,5	46.78 $ (USD)
K0177.309	star socket	9	100	15	33	10	25	17	27	10	50.47 $ (USD)
K0177.311	star socket	11	100	15	33	10	25	17	27	10	50.47 $ (USD)
K0177.314	star socket	14	128	15	41	12	30	20	36	11,5	59.20 $ (USD)
K0177.319	star socket	19	128	15	41	12	30	20	36	11,5	59.20 $ (USD)
