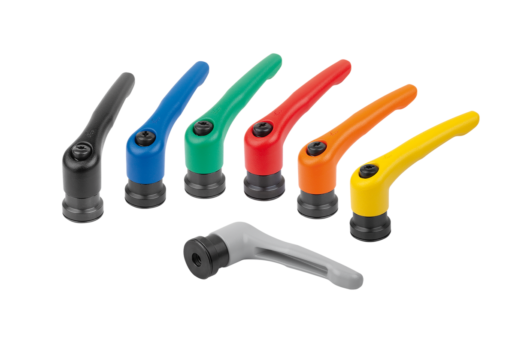

    - Clamping levers, zinc with female thread and clamping force intensifier
      - Adjustable handles, zinc with female thread and clamping force intensifier, satin finish

Item description/product images

DescriptionProduct description:By using clamping levers with integrated clamping force intensifier, the clamping force can be increased by up to 75% compared to standard clamping levers.

Furthermore, this product can also be used by persons with limited hand strength (e.g. in rehabilitation) to achieve comparable clamping forces with less effort. Less effort is also needed to loosen the clamping lever.

The increase in clamping force is achieved by the integral needle roller thrust bearing, which generates very low surface friction on a rigid contact surface during clamping. The hardened thrust washers are designed for high clamping forces and the bearing with its high load rating guarantees a long service life.

The clamped component is permanently protected by the large, stationary contact surface. A washer is no longer required.Material:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle powder-coated.
Steel parts black oxidised.
Axial needle bearing with hardened and ground thrust washer.Type of operation:In the default position, the handle is engaged with the threaded insert through a toothed ring. By lifting the handle, it can be repositioned and re-engaged in the toothed ring by spring force.Application:Machine, equipment and plant construction, rehabilitation sector.Advantages:Significant increase of the clamping force with the same tightening torque.
High quality axial needle bearing with high load rating and long service life.
The component surface is protected by the stationary lower ring.On request:Other colours.Special features:

Drawings

Item selection/filter

Order No.	Main colour	Surface finish body	Size	X	D2	H	H2	H3	H4	A	A1	B	T	T1	Price
K1599.2081	jet black RAL 9005	satin finish	2	M8	25	38,5	27,7	52,6	55,6	65	77,5	10	22	10	40.04 $ (USD)
K1599.3101	jet black RAL 9005	satin finish	3	M10	30	47	33,9	64,4	68,6	80	95	11,2	24	10	42.70 $ (USD)
K1599.4101	jet black RAL 9005	satin finish	4	M10	30	53,1	37,2	72,8	77,3	95	110	13,2	27	10	46.62 $ (USD)
K1599.5121	jet black RAL 9005	satin finish	5	M12	35	59,1	41,9	83	87,5	110	127,5	15,4	33	10	51.42 $ (USD)
