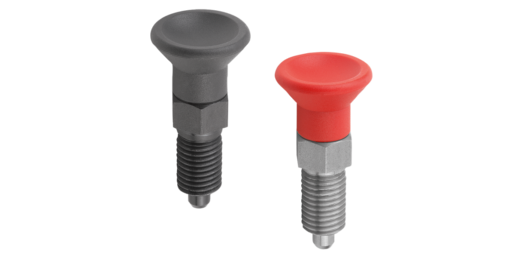

Indexing Plungers, Style A, metric
K0338_A Metric

Indexing Plungers, Style A, metric

go back

Item description/product images

DescriptionMaterial:Version:Steel version:
Threaded sleeve, black oxidised.
Indexing pin hardened, ground and black oxidised.

Stainless steel version:
Threaded sleeve, bright.
Indexing pin hardened, ground and bright.
Indexing pin not hardened, ground and bright.
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back.On request:Special versions.Accessory:Spacer rings K0665Special features:
RoHS

Drawings

Indexing Plungers, Style A, metric

Item selection/filter

Order No.FormMain
material
Steel
code
Surface finish
body
Component
colour
DD1D2LL1L2L3Travel
S
SW1Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0338.1903Asteel-hardenedblack grey RAL 70213M6x0,751431,5125103,580,84,510 12.94 $ (USD)
K0338.1004Asteel-hardenedblack grey RAL 70214M8x11838,5156134101612  11.66 $ (USD)
K0338.1105Asteel-hardenedblack grey RAL 70215M10x12143,5177155131,3512  12.35 $ (USD)
K0338.1206Asteel-hardenedblack grey RAL 70216M12x1,52551,7208176141,8614  13.73 $ (USD)
K0338.1308Asteel-hardenedblack grey RAL 70218M16x1,533682610238192,31535  17.63 $ (USD)
K0338.1410Asteel-hardenedblack grey RAL 702110M20x1,5337428122510222,81534 17.84 $ (USD)
K0338.1412Asteel-hardenedblack grey RAL 702112M20x1,5337828142512222,81539 25.26 $ (USD)
K0338.1516Asteel-hardenedblack grey RAL 702116M24x2409632182816273,22046 35.05 $ (USD)
K0338.190384Asteel-hardenedtraffic red RAL 30203M6x0,751431,5125103,580,84,510 12.94 $ (USD)
K0338.100484Asteel-hardenedtraffic red RAL 30204M8x11838,5156134101612 11.66 $ (USD)
K0338.110584Asteel-hardenedtraffic red RAL 30205M10x12143,5177155131,3512 12.35 $ (USD)
K0338.120684Asteel-hardenedtraffic red RAL 30206M12x1,52551,7208176141,8614 13.73 $ (USD)
K0338.130884Asteel-hardenedtraffic red RAL 30208M16x1,533682610238192,31535 17.63 $ (USD)
K0338.141084Asteel-hardenedtraffic red RAL 302010M20x1,5337428122510222,81534 17.84 $ (USD)
K0338.141284Asteel-hardenedtraffic red RAL 302012M20x1,5337828142512222,81539 25.26 $ (USD)
K0338.151684Asteel-hardenedtraffic red RAL 302016M24x2409632182816273,22046 35.05 $ (USD)
K0338.01903Astainless steel1.4034hardenedblack grey RAL 70213M6x0,751431,5125103,580,84,510 21.04 $ (USD)
K0338.01004Astainless steel1.4034hardenedblack grey RAL 70214M8x11838,5156134101612  17.91 $ (USD)
K0338.01105Astainless steel1.4034hardenedblack grey RAL 70215M10x12143,5177155131,3512  20.11 $ (USD)
K0338.01206Astainless steel1.4034hardenedblack grey RAL 70216M12x1,52551,7208176141,8614  23.71 $ (USD)
K0338.01308Astainless steel1.4034hardenedblack grey RAL 70218M16x1,533682610238192,31535  31.46 $ (USD)
K0338.01410Astainless steel1.4034hardenedblack grey RAL 702110M20x1,5337428122510222,81534 32.23 $ (USD)
K0338.01412Astainless steel1.4034hardenedblack grey RAL 702112M20x1,5337828142512222,81539 47.23 $ (USD)
K0338.01516Astainless steel1.4034hardenedblack grey RAL 702116M24x2409632182816273,22046 67.17 $ (USD)
K0338.0190384Astainless steel1.4034hardenedtraffic red RAL 30203M6x0,751431,5125103,580,84,510 21.04 $ (USD)
K0338.0100484Astainless steel1.4034hardenedtraffic red RAL 30204M8x11838,5156134101612 17.91 $ (USD)
K0338.0110584Astainless steel1.4034hardenedtraffic red RAL 30205M10x12143,5177155131,3512 20.11 $ (USD)
K0338.0120684Astainless steel1.4034hardenedtraffic red RAL 30206M12x1,52551,7208176141,8614 23.71 $ (USD)
K0338.0130884Astainless steel1.4034hardenedtraffic red RAL 30208M16x1,533682610238192,31535 31.46 $ (USD)
K0338.0141084Astainless steel1.4034hardenedtraffic red RAL 302010M20x1,5337428122510222,81534 32.23 $ (USD)
K0338.0141284Astainless steel1.4034hardenedtraffic red RAL 302012M20x1,5337828142512222,81539 47.23 $ (USD)
K0338.0151684Astainless steel1.4034hardenedtraffic red RAL 302016M24x2409632182816273,22046 67.17 $ (USD)
K0338.11903Astainless steel1.4305not hardenedblack grey RAL 70213M6x0,751431,5125103,580,84,510 21.04 $ (USD)
K0338.11004Astainless steel1.4305not hardenedblack grey RAL 70214M8x11838,5156134101612  17.91 $ (USD)
K0338.11105Astainless steel1.4305not hardenedblack grey RAL 70215M10x12143,5177155131,3512  20.11 $ (USD)
K0338.11206Astainless steel1.4305not hardenedblack grey RAL 70216M12x1,52551,7208176141,8614  23.71 $ (USD)
K0338.11308Astainless steel1.4305not hardenedblack grey RAL 70218M16x1,533682610238192,31535  31.46 $ (USD)
K0338.11410Astainless steel1.4305not hardenedblack grey RAL 702110M20x1,5337428122510222,81534 32.23 $ (USD)
K0338.11412Astainless steel1.4305not hardenedblack grey RAL 702112M20x1,5337828142512222,81539 47.23 $ (USD)
K0338.11516Astainless steel1.4305not hardenedblack grey RAL 702116M24x2409632182816273,22046 67.17 $ (USD)
K0338.1190384Astainless steel1.4305not hardenedtraffic red RAL 30203M6x0,751431,5125103,580,84,510 21.04 $ (USD)
K0338.1100484Astainless steel1.4305not hardenedtraffic red RAL 30204M8x11838,5156134101612 17.91 $ (USD)
K0338.1110584Astainless steel1.4305not hardenedtraffic red RAL 30205M10x12143,5177155131,3512 20.11 $ (USD)
K0338.1120684Astainless steel1.4305not hardenedtraffic red RAL 30206M12x1,52551,7208176141,8614 23.71 $ (USD)
K0338.1130884Astainless steel1.4305not hardenedtraffic red RAL 30208M16x1,533682610238192,31535 31.46 $ (USD)
K0338.1141084Astainless steel1.4305not hardenedtraffic red RAL 302010M20x1,5337428122510222,81534 32.23 $ (USD)
K0338.1141284Astainless steel1.4305not hardenedtraffic red RAL 302012M20x1,5337828142512222,81539 47.23 $ (USD)
K0338.1151684Astainless steel1.4305not hardenedtraffic red RAL 302016M24x2409632182816273,22046 67.17 $ (USD)
