Indexing plungers with collar for Hygienic USIT® seal and shim washers, Form A, without locking slot

Indexing plungers with collar for Hygienic USIT® seal and shim...

go back

Item description/product images

DescriptionProduct description:

Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. A new locking position can be set only after the plunger has been manually retracted. Form C (with lockout slot) is recommended for applications where the indexing pin should remain disengaged for an extended period and be prevented from springing back.

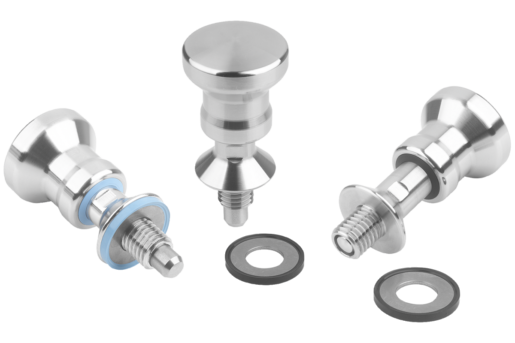

This indexing plunger is suitable for the foodstuff sectors. It has a conical collar so that the fastening point can be hygienically sealed using the Hygienic USIT® sealing and shim washer. The surface finish is Ra < 0.8 µm, which prevents dirt particles from adhering and ensures easy cleaning.

Material:Version:Indexing pin hardened or not hardened, bright.Temperature range:

70 EPDM 295: -40 °C to 150 °C.

75 Fluoroprene® XP: -15 °C to 200 °C.

Advantages:Hygienic conform design
Stainless steel 1.4404
Suitable for CIP/SIP cleaning
Resistant to polar and nonpolar media as well as aromatic substances
Certified according to DGUV test

Hygienic USIT® seal and shim washers K1491.

Supplied with

Indexing plunger including seal and shim washer Hygienic USIT®.

Special features:
Stainless steel RoHS

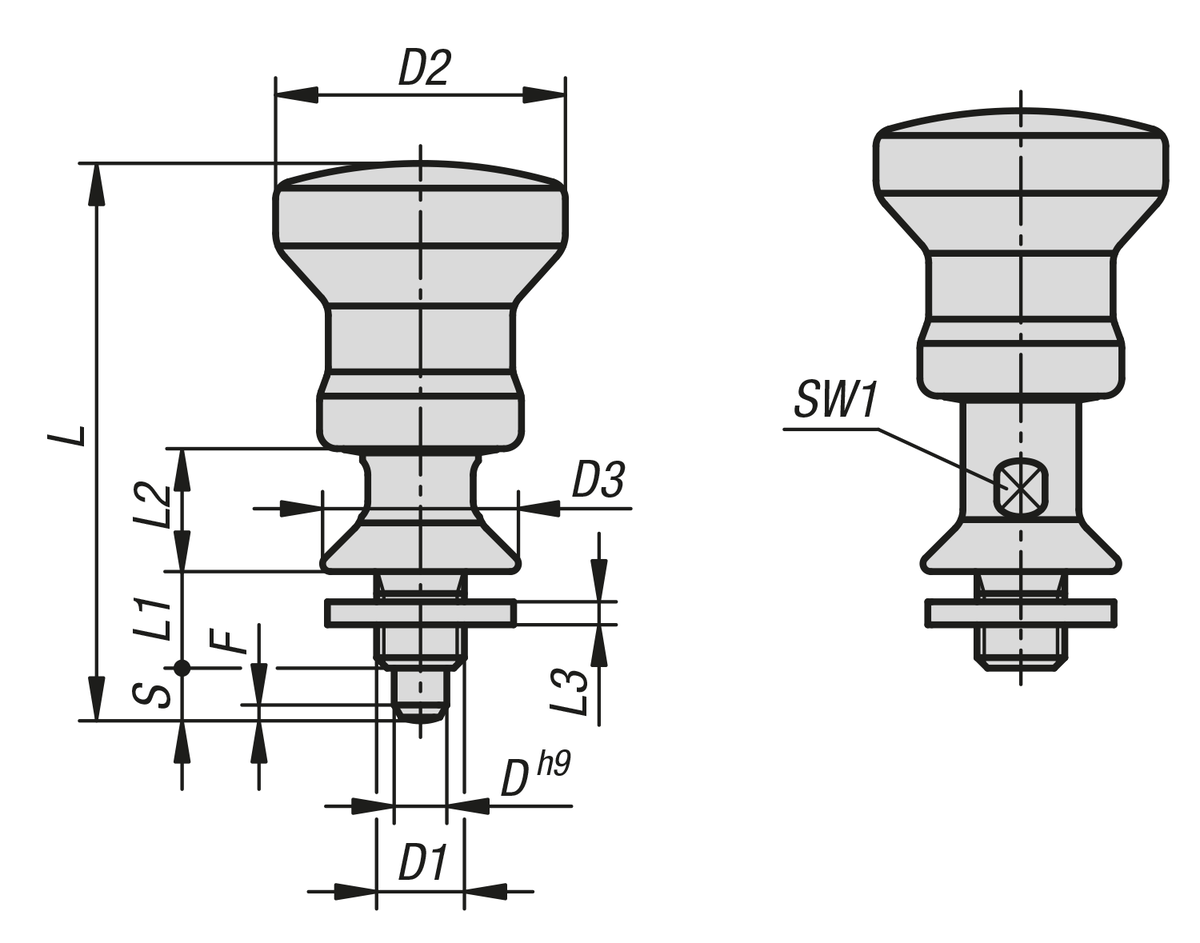

Indexing plungers with collar for Hygienic USIT® seal and shim washers, Form A, without locking slot

Item selection/filter

Order No.FormMain
locating pinComponent
SW1Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
K1698.0110601Astainless steelhardenedblack6M103322,363,511141,56121,84045 91.98 $ (USD)
K1698.0110611Astainless steelhardenedblack6M10x13322,363,511141,56121,84045 91.98 $ (USD)
K1698.0120801Astainless steelhardenedblack8M123326,669,513161,58122,34062 100.51 $ (USD)
K1698.0120811Astainless steelhardenedblack8M12x1,53326,669,513161,58122,34062 100.51 $ (USD)
K1698.0110602Astainless steelhardenedblue6M103322,363,511141,56121,84045 110.30 $ (USD)
K1698.0110612Astainless steelhardenedblue6M10x13322,363,511141,56121,84045 110.30 $ (USD)
K1698.0120802Astainless steelhardenedblue8M123326,669,513161,58122,34062 124.91 $ (USD)
K1698.0120812Astainless steelhardenedblue8M12x1,53326,669,513161,58122,34062 124.91 $ (USD)
K1698.1110601Astainless steelnot hardenedblack6M103322,363,511141,56121,84045 89.07 $ (USD)
K1698.1110611Astainless steelnot hardenedblack6M10x13322,363,511141,56121,84045 89.07 $ (USD)
K1698.1120801Astainless steelnot hardenedblack8M123326,669,513161,58122,34062 95.92 $ (USD)
K1698.1120811Astainless steelnot hardenedblack8M12x1,53326,669,513161,58122,34062 95.92 $ (USD)
K1698.1110602Astainless steelnot hardenedblue6M103322,363,511141,56121,84045 107.25 $ (USD)
K1698.1110612Astainless steelnot hardenedblue6M10x13322,363,511141,56121,84045 107.25 $ (USD)
K1698.1120802Astainless steelnot hardenedblue8M123326,669,513161,58122,34062 120.32 $ (USD)
K1698.1120812Astainless steelnot hardenedblue8M12x1,53326,669,513161,58122,34062 120.32 $ (USD)
