K1524_C

2-spoke handwheels, aluminium, with revolving cylinder grip,...

go back

News
- NEW Product Innovations

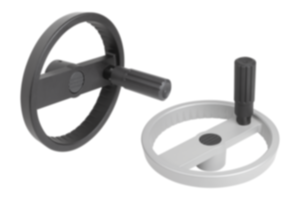

  - 2-spoke handwheels, aluminium with revolving cylinder grip

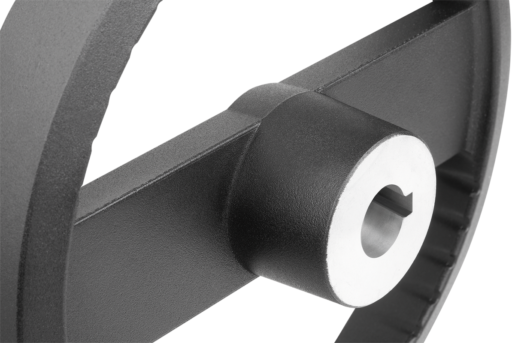

    - 2-spoke handwheels, aluminium, with revolving cylinder grip, Form C with reamed hole and keyway

Item description/product images

DescriptionMaterial:Handwheel aluminium.
Cylinder grip and hub cover black thermoplastic.
Cylinder grip pin black oxidised steel.
ISO 4027 grub screw, steel grade 45 H, black.Version:Black or silver powder-coated.Note:Wheel rim radial and axial run-out ≤ 0.4 mm.Assembly:The hub cover and the revolving cylinder grip are supplied unassembled. To assemble, screw the grip into the tapped hole.
The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a handwheel washer K0173.
By the versions with transverse bore, fixation is carried out using an ISO 4027 grub screw.Accessory:K0173 Handwheel washers.
K1160 Socket head screws with low head DIN 6912.Supplied withAluminium handwheel.

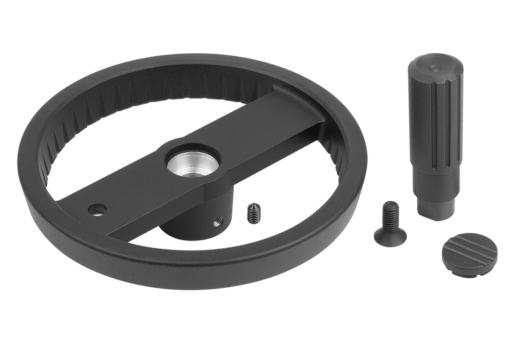

Hub cover.
Revolving cylinder grip.
ISO 4027 grub screw (type with transverse bore).Drawing reference:

1) Position of the transverse bore to the keyway is offset by 90°.

Special features:

Drawings

Item selection/filter

Order No.	Main colour	Form	Form definition	A	B3	D1	D2	D3	D4	D5	H	L	L1	L2	L3	T	Price
K1524.12512104	black	C	reamed hole with slot	42	4	125	12	31	19,9	M6	17,6	90,5	18	54,5	36	13,8	47.25 $ (USD)
K1524.12514105	black	C	reamed hole with slot	42	5	125	14	31	19,9	M6	17,6	90,5	18	54,5	36	16,3	47.25 $ (USD)
K1524.16014105	black	C	reamed hole with slot	55	5	160	14	36	25,2	M8	19,4	116,5	20	76,5	40	16,3	55.38 $ (USD)
K1524.16016105	black	C	reamed hole with slot	55	5	160	16	36	25,2	M8	19,4	116,5	20	76,5	40	18,3	55.38 $ (USD)
K1524.12512204	silver	C	reamed hole with slot	42	4	125	12	31	19,9	M6	17,6	90,5	18	54,5	36	13,8	47.25 $ (USD)
K1524.12514205	silver	C	reamed hole with slot	42	5	125	14	31	19,9	M6	17,6	90,5	18	54,5	36	16,3	47.25 $ (USD)
K1524.16014205	silver	C	reamed hole with slot	55	5	160	14	36	25,2	M8	19,4	116,5	20	76,5	40	16,3	55.38 $ (USD)
K1524.16016205	silver	C	reamed hole with slot	55	5	160	16	36	25,2	M8	19,4	116,5	20	76,5	40	18,3	55.38 $ (USD)
