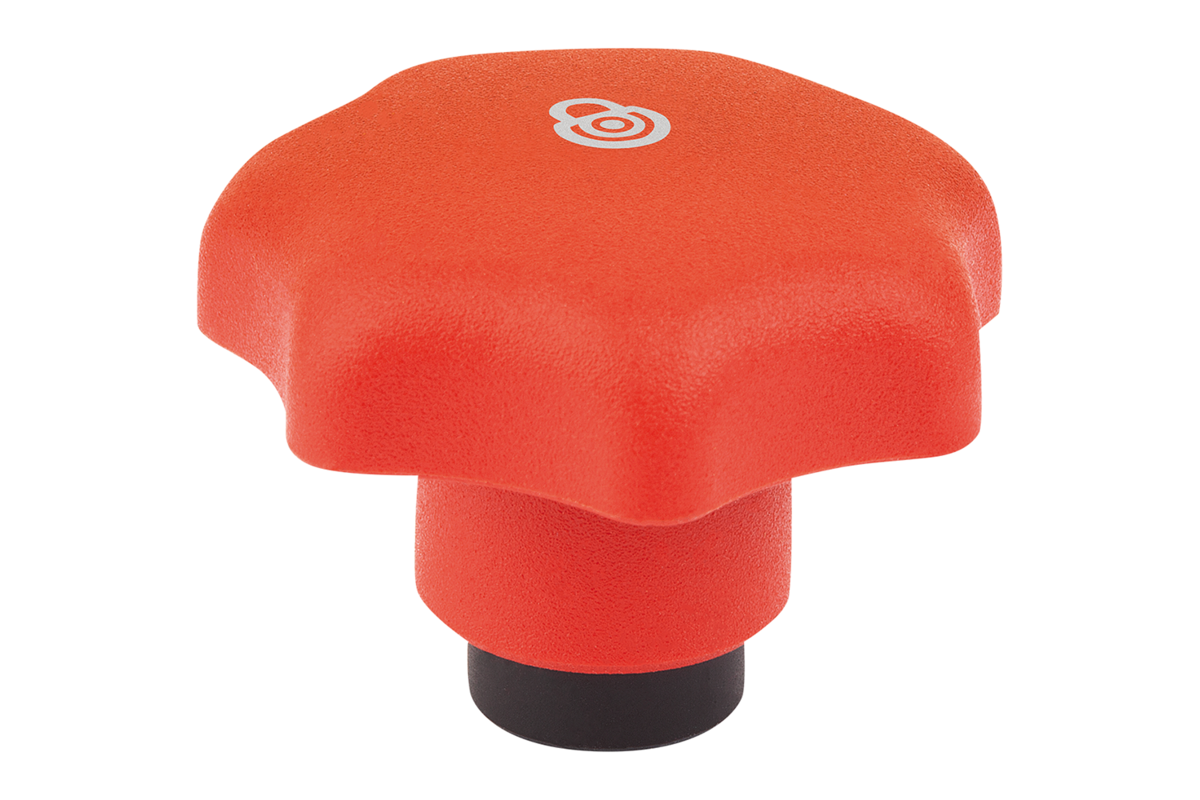

Star Grip
with safety function
thermoplastic
traffic red RAL 3020
- Protection against accidental opening or closing
Sales unit
$11.56 / pcs.
as low as | plus sales tax
plus shipping and handling
Added to your shopping cart
D1=Outside diameter
32
D=Thread
M05
H=Height
25
N=No. of teeth
12
T=Thread depth
6
Body color
traffic red RAL 3020
Body material
thermoplastic
Component material
steel
Component surface finish
trivalent blue passivated
D2
10
D8
14
Designation
Star Grip
H1
5
H4
22,1
PL Stainless steel
FALSE
Size
1
Thread type
internal thread
Version 1
with safety function
Description
Product description
Star grips with safety function prevent changes to the clamping point by accidental opening or closing.
In its initial state, the grip can turn freely and has no connection to the clamping point. It is only when the grip is pushed down that the toothing engages and the clamp can be loosened or tightened.
A spring returns the grip to the start position upon release.
In its initial state, the grip can turn freely and has no connection to the clamping point. It is only when the grip is pushed down that the toothing engages and the clamp can be loosened or tightened.
A spring returns the grip to the start position upon release.
Material
Star grip and insert made from reinforced thermoplastic.
Bushing steel or stainless steel.
Bushing steel or stainless steel.
Version
Steel trivalent blue passivated.
Stainless steel, bright.
Stainless steel, bright.
Advantages
Protection against accidental opening or closing.
On request
Special versions.
