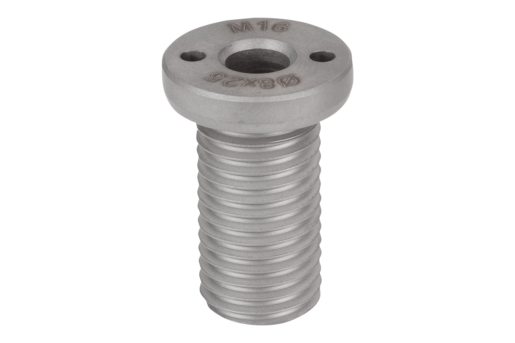

Item description/product images

DescriptionMaterial:Version:Hardened.Note:The locating bushes offer a safe and quick option for holding the ball lifting pins. They ensure that installation in a range of supporting materials can be carried out easily and reliably. Can also be used with thin-walled parts and blind holes.
This version is suitable for applications which require a flat surface after having been screwed in.
They are corrosion-resistant and do not wear easily.Special features:

Drawings

Item selection/filter

Order No.	Form	D1	D2	D3	D4	D5	D6	L1	L2	L3	X	Tightening torque Nm	Price
K1921.10810	A	8	M16x1,5	24	9,8	3,1	16	10	25	20	1,5	75	59.30 $ (USD)
K1921.10815	A	8	M16x1,5	24	9,8	3,1	16	15	25	20	1,5	75	61.31 $ (USD)
K1921.10825	A	8	M16	24	9,8	3,1	16	25	35	30	1,5	75	64.21 $ (USD)
K1921.10835	A	8	M16	24	9,8	3,1	16	35	45	40	1,5	75	67.81 $ (USD)
K1921.11015	A	10	M20x1,5	28	12,2	5,1	20	15	30	24	1,5	100	68.58 $ (USD)
K1921.11025	A	10	M20x1,5	28	12,2	5,1	20	25	35	29	1,5	100	69.82 $ (USD)
K1921.11035	A	10	M20	28	12,2	5,1	20	35	45	39	1,5	100	74.24 $ (USD)
K1921.11050	A	10	M20	28	12,2	5,1	20	50	60	54	1,5	100	81.12 $ (USD)
K1921.11215	A	12	M24x1,5	32	14,7	5,1	22	15	32	26	1,5	150	75.49 $ (USD)
K1921.11225	A	12	M24x1,5	32	14,7	5,1	22	25	40	34	1,5	150	76.86 $ (USD)
K1921.11625	A	16	M30x2	39	19,2	5,1	30	25	45	39	1,5	200	86.77 $ (USD)
