  - Shaft collars one-piece, wide, slitted inside

Item description/product images

DescriptionMaterial:Version:Steel black oxidised.
Screw 12.9 steel.
Stainless steel bright.
Screw A2-70 stainless steel.Note:One-piece shaft collars with an inner slit surround the shaft with an equal distribution of the clamping force. This leads to a very precise fit and high retaining force without damaging the shaft.

The shaft tolerance should lie within h11.Temperature range:-40 °C to +175 °C.On request:Other dimensions.Special features:

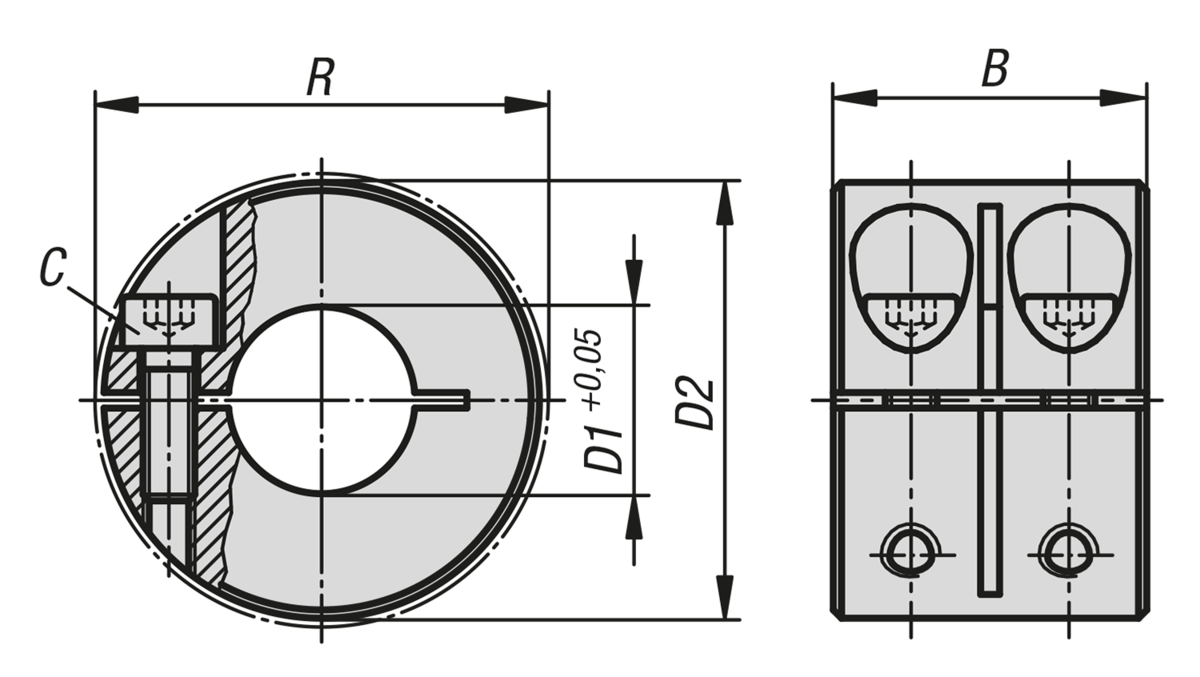

Drawings

Item selection/filter

Order No.	Form-Type	Main material	B	C (DIN 912)	D1	D2	R	Price
K1924.00801	slitted inside	steel	20	M3x8	8	18	22,4	12.26 $ (USD)
K1924.01001	slitted inside	steel	20	M3x10	10	24	26	13.81 $ (USD)
K1924.01201	slitted inside	steel	24	M4x12	12	28	31,8	15.54 $ (USD)
K1924.01601	slitted inside	steel	29	M5x16	16	34	39,4	18.80 $ (USD)
K1924.02001	slitted inside	steel	33	M6x18	20	40	46,4	21.28 $ (USD)
K1924.02501	slitted inside	steel	33	M6x18	25	45	50,8	24.78 $ (USD)
K1924.03001	slitted inside	steel	33	M6x18	30	54	58,6	29.79 $ (USD)
K1924.04001	slitted inside	steel	33	M6x18	40	60	65	30.05 $ (USD)
K1924.05001	slitted inside	steel	41	M8x25	50	78	87	45.58 $ (USD)
K1924.00802	slitted inside	stainless steel	20	M3x8	8	18	22,4	20.16 $ (USD)
K1924.01002	slitted inside	stainless steel	20	M3x10	10	24	26	25.23 $ (USD)
K1924.01202	slitted inside	stainless steel	24	M4x12	12	28	31,8	28.24 $ (USD)
K1924.01602	slitted inside	stainless steel	29	M5x16	16	34	39,4	34.43 $ (USD)
K1924.02002	slitted inside	stainless steel	33	M6x18	20	40	46,4	38.90 $ (USD)
K1924.02502	slitted inside	stainless steel	33	M6x18	25	45	50,8	45.90 $ (USD)
K1924.03002	slitted inside	stainless steel	33	M6x18	30	54	58,6	54.32 $ (USD)
K1924.04002	slitted inside	stainless steel	33	M6x18	40	60	65	54.86 $ (USD)
K1924.05002	slitted inside	stainless steel	41	M8x25	50	78	87	83.42 $ (USD)
