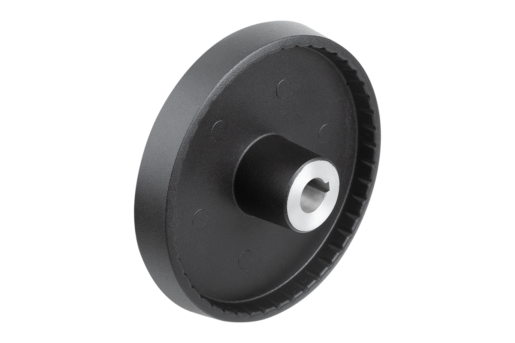

Disc handwheels, aluminum, without grip, style C with reamed...

go back

News
- NEW Product Innovations
  - Disc handwheels, aluminum without grip
    - Disc handwheels, aluminum, without grip, style C with reamed hole and keyway

Item description/product images

DescriptionMaterial:Handwheel aluminum.
Hub cover black thermoplastic.
ISO 4027 grub screw, steel grade 45 H, black.Version:Black or silver powder-coated.Note:Wheel rim radial and axial run-out ≤ 0.4 mm.Assembly:The hub cover is supplied unassembled.
The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a handwheel washer K0173.
By the versions with transverse bore, fixation is carried out using an ISO 4027 grub screw.Accessory:K0173 Handwheel washers.
K1160 Socket head screws with low head DIN 6912.Supplied withaluminum handwheel.
Hub cover.
ISO 4027 grub screw (type with transverse bore).Drawing reference:

1) Position of the transverse bore to the keyway is offset by 90°.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1520_C Disc handwheels, aluminum, without grip, style C with reamed hole and keyway

1 MB

Drawings

Item selection/filter

Order No.	Main color	style	Style definition	D1	D2	D3	L1	L3	H	B3	T	Price
K1520.08010103	black	C	reamed hole with slot	80	10	26	16	29	16,6	3	11,4	27.97 $ (USD)
K1520.08012104	black	C	reamed hole with slot	80	12	26	16	29	16,6	4	13,8	27.97 $ (USD)
K1520.10010103	black	C	reamed hole with slot	100	10	28	17	33	17,5	3	11,4	31.52 $ (USD)
K1520.10012104	black	C	reamed hole with slot	100	12	28	17	33	17,5	4	13,8	31.52 $ (USD)
K1520.12512104	black	C	reamed hole with slot	125	12	31	18	36	18,3	4	13,8	37.16 $ (USD)
K1520.12514105	black	C	reamed hole with slot	125	14	31	18	36	18,3	5	16,3	37.16 $ (USD)
K1520.08010203	silver	C	reamed hole with slot	80	10	26	16	29	16,6	3	11,4	27.97 $ (USD)
K1520.08012204	silver	C	reamed hole with slot	80	12	26	16	29	16,6	4	13,8	27.97 $ (USD)
K1520.10010203	silver	C	reamed hole with slot	100	10	28	17	33	17,5	3	11,4	31.52 $ (USD)
K1520.10012204	silver	C	reamed hole with slot	100	12	28	17	33	17,5	4	13,8	31.52 $ (USD)
K1520.12512204	silver	C	reamed hole with slot	125	12	31	18	36	18,3	4	13,8	37.16 $ (USD)
K1520.12514205	silver	C	reamed hole with slot	125	14	31	18	36	18,3	5	16,3	37.16 $ (USD)
