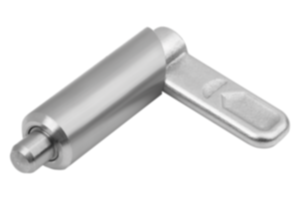

Item description/product images

DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.4308 (AISI "316" equivalent).
Sleeve 1.4301 (AISI 304 equivalent).
Indexing pin 1.4305 (AISI 303 equivalent).
Spring 1.4310 (AISI 301 equivalent).Version:Sleeve and grip bright.
Indexing pin ground and left bright.
Spring bright.Note:If the cam-action indexing plunger is to be welded on, the sleeve should be tack welded so that the spring is not thermally damaged from the high temperatures.Benefits:Turning the grip through 180° retracts the pin.
Smooth sleeve, Connecting option via adapter sleeveOn request:Special versions.
Accessory:Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1671_E Metric Cam-action indexing plungers, stainless steel, Form E, without grip cap, metric

170 kB

Drawings

Item selection/filter

Order No.	style	D	D1	L	L1	B	B1	H	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K1671.1080410	E	4	10	39,5	26,3	10,9	4,9	6	1	8	14	27.77 $ (USD)
K1671.1080510	E	5	10	39,5	26,3	10,9	4,9	6	1,3	8	14	27.77 $ (USD)
K1671.1080610	E	6	10	39,5	26,3	10,9	4,9	6	1,8	8	14	27.77 $ (USD)
K1671.1080512	E	5	12	48,4	31,1	12,9	5,7	8	1,3	8	14	30.49 $ (USD)
K1671.1080612	E	6	12	48,4	31,1	12,9	5,7	8	1,8	8	14	30.49 $ (USD)
K1671.1080812	E	8	12	48,4	31,1	12,9	5,7	8	2,3	8	14	30.49 $ (USD)
K1671.1080616	E	6	16	62,3	41,5	16,6	7	10	1,8	15	35	33.30 $ (USD)
K1671.1080816	E	8	16	62,3	41,5	16,6	7	10	2,3	15	35	33.30 $ (USD)
K1671.1081016	E	10	16	62,8	41,5	16,6	7	10	2,8	15	35	33.30 $ (USD)
K1671.1080820	E	8	20	72,3	51,3	20,5	8,5	12	2,3	20	60	39.66 $ (USD)
K1671.1081020	E	10	20	72,3	51,3	20,5	8,5	12	2,8	20	60	39.66 $ (USD)
K1671.1081220	E	12	20	72,3	51,3	20,5	8,5	12	3	20	60	39.66 $ (USD)
