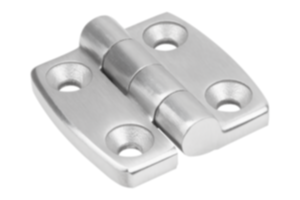

Item description/product images

DescriptionMaterial:Stainless steel 1.4401 (AISI 316 equivalent).Note:Hinges for inset doors.
The hinges can be mounted right or left.
The non-visible, welded hinge pins ensure that the hinges are protected against destruction.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1852 Hinges, stainless steel

240 kB

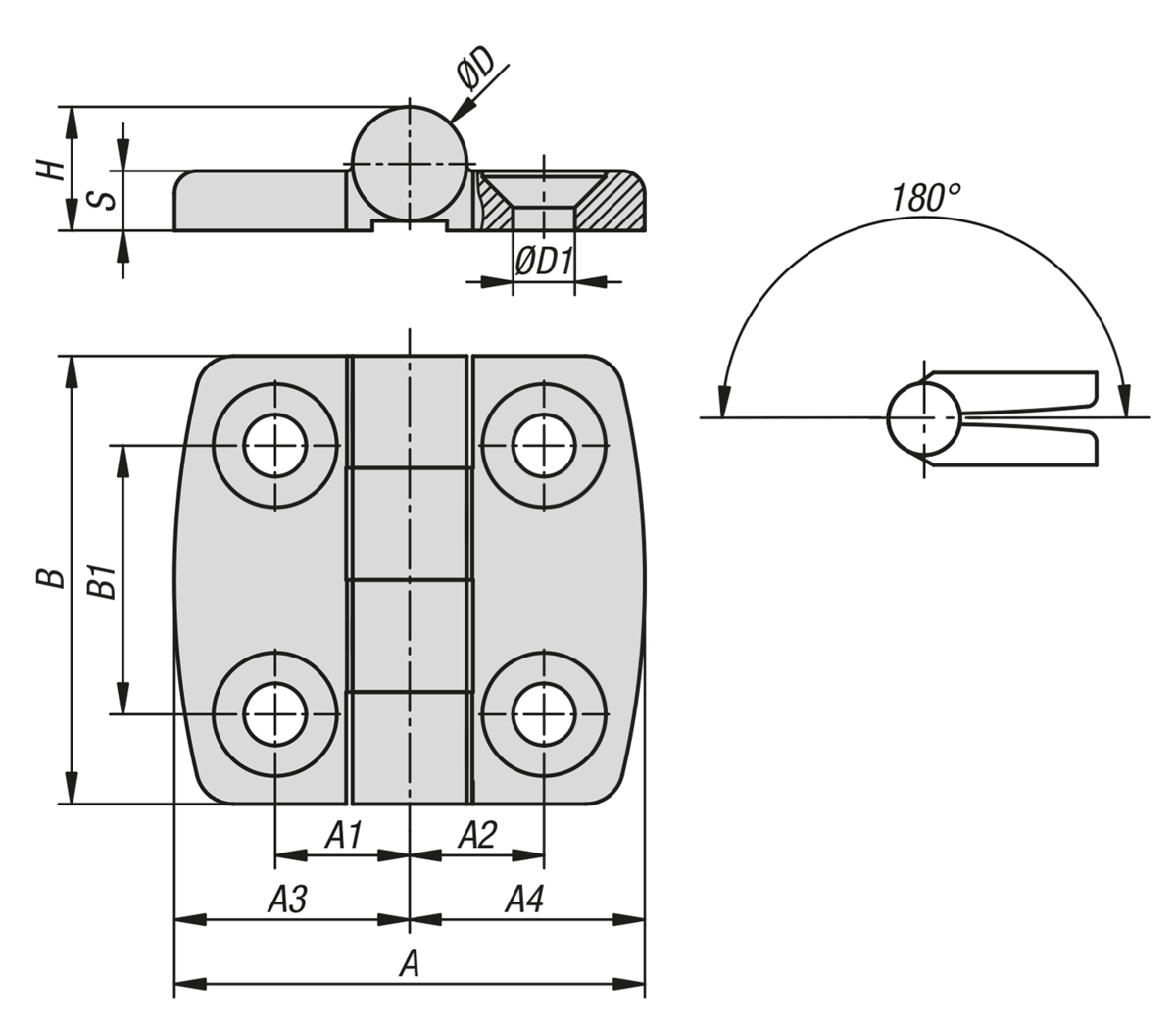

Drawings

Item selection/filter

Order No.	A	A1	A2	A3	A4	B	B1	D	D1	S	H	Price
K1852.05211212	42	12,5	12,5	21	21	40	25	10,2	5,2	5	10,6	24.06 $ (USD)
K1852.06251515	50	15	15	25	25	50	30	12	6,2	6	12,5	27.23 $ (USD)
K1852.08311818	63	18	18	31,5	31,5	60	36	15,3	8,3	8	16,6	32.57 $ (USD)
K1852.06252815	63	15	28	25	38	50	30	12	6,2	6	12,5	30.43 $ (USD)
K1852.06382828	76	28	28	38	38	50	30	12	6,2	6	12,5	32.07 $ (USD)
