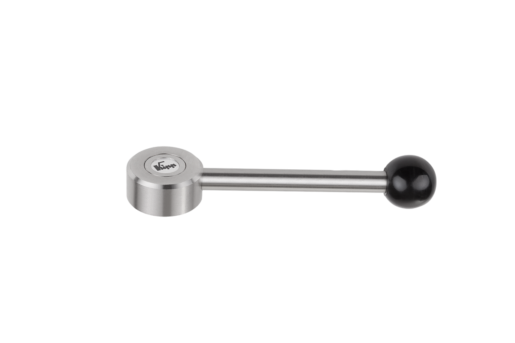

Tension levers flat internal thread, stainless steel, 0°

go back

Products
- Adjustable Handles
  - Adjustable Tension Levers
    - Tension levers flat internal thread, stainless steel
      - Tension levers flat internal thread, stainless steel, 0°

Item description/product images

DescriptionMaterial:

Steel parts stainless steel 1.4305 (AISI 303 equivalent).
Ball knob black plastic.

Version:Steel parts bright.On request:Other threads and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0129_0 Tension levers flat internal thread, stainless steel, 0°

119 kB

Drawings

Item selection/filter

Order No.	style	X	T	A=Handle length	D	D1	D2	D3	H	H1	H2	H3	No. of teeth	Price
K0129.1081	0°	M8	18	102	13,5	33	25	10	19	2	12	23	26	52.34 $ (USD)
K0129.2101	0°	M10	21	131	19	41	30	12	22	2	13,5	26	30	64.66 $ (USD)
K0129.2121	0°	M12	21	131	19	41	30	12	22	2	13,5	26	30	64.66 $ (USD)
K0129.3161	0°	M16	27	148	23	45	37	14	28	2	17	33	36	76.25 $ (USD)
