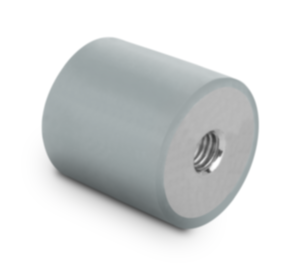

Rubber buffers stainless steel, type C
K1320

Rubber buffers stainless steel, type C

go back

Item description/product images

DescriptionMaterial:Metal parts 1.4401 (AISI 316 equivalent) stainless steel.
Elastomer natural rubber, medium hardness Shore 55A, gray.
Version:Stainless steel bright.Note:The rubber buffers are widely-used construction elements for elastic mounting. They are used, among other things, as mountings for aggregates, motors, compressors, pumps and testing machinery.Temperature range:-30 °C to +80 °COn request:Metal parts 1.4301 (AISI 304 equivalent) stainless steel.Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1320 Rubber buffers stainless steel, type C 191 kB

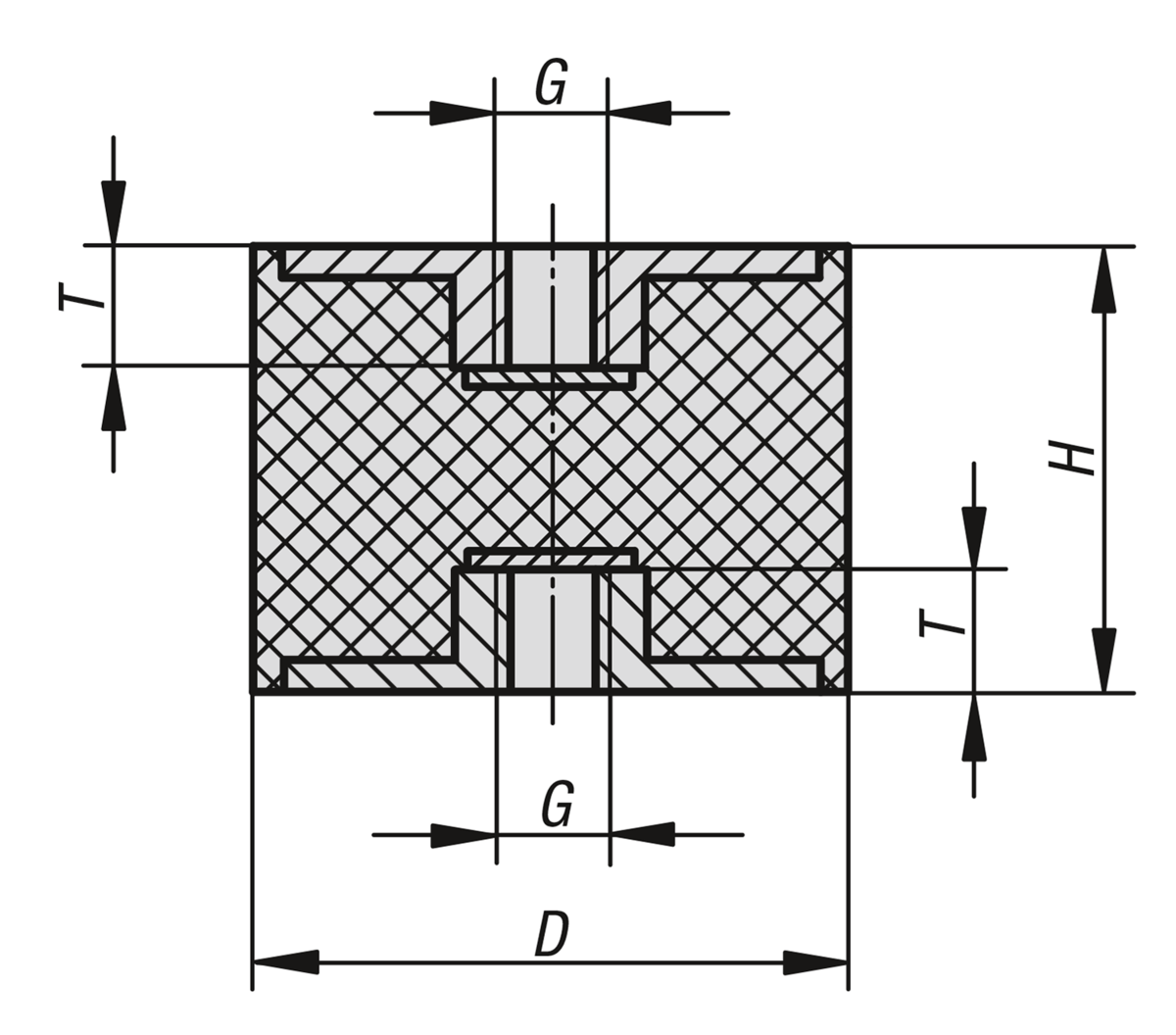

Drawings

Rubber buffers stainless steel, type C

Item selection/filter

Item No.

Main
material
Component
color
DHGTSpring stiffness
N/mm
Load
N
CADAcc.PriceOrder
K1320.01001055stainless steelgray1010M4410050 8.78 $ (USD)
K1320.01001555stainless steelgray1015M445050 9.09 $ (USD)
K1320.01501555stainless steelgray1515M44100100 9.47 $ (USD)
K1320.02002055stainless steelgray2020M65230276 12.35 $ (USD)
K1320.02002555stainless steelgray2025M65120180 13.13 $ (USD)
K1320.02502055stainless steelgray2520M65230276 12.79 $ (USD)
K1320.02502555stainless steelgray2525M65110165 13.48 $ (USD)
K1320.02503055stainless steelgray2530M6580160 14.20 $ (USD)
K1320.03002055stainless steelgray3020M87425637 18.21 $ (USD)
K1320.03003055stainless steelgray3030M87175350 21.46 $ (USD)
K1320.03004055stainless steelgray3040M87133400 24.42 $ (USD)
K1320.04003055stainless steelgray4030M875301060 25.83 $ (USD)
K1320.04004055stainless steelgray4040M87222666 28.39 $ (USD)
K1320.05003055stainless steelgray5030M1086801360 38.62 $ (USD)
K1320.05004055stainless steelgray5040M1083331000 45.55 $ (USD)
K1320.05005055stainless steelgray5050M108190665 51.74 $ (USD)
K1320.07504055stainless steelgray7540M12107502250 88.52 $ (USD)
K1320.07505055stainless steelgray7550M12106362225 99.48 $ (USD)
