Product groups
Oil level gauges
K0443

Oil level gauges

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Housing thermoplastic polyamide.
O-ring and flat seal rubber (NBR).
Reflector aluminium.
Screw and hex nut steel.
Version:Transparent housing, high mechanical stability, non-ageing, temperature resistant up to 100 °C.
Pressure resistant at 20 °C up to 10 bar, at 60 °C up to 8 bar.
Reflector painted white, line marks and scale black.
Screw and hexagon nut, electro zinc-plated.
Note:The oil level gages can either be fastened as shown in the illustration or screwed directly into a tapped hole. Centre distance for the fastening holes = L1 ±0.3.
The max. tightening torque for the fastening screws is 5 Nm.
Drawing reference:
style A: without Thermometer
style B: with Thermometer

1) flat seal
2) O-ring
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0443 Oil level gauges 213 kB

Drawings (total overview)

Oil level gauges

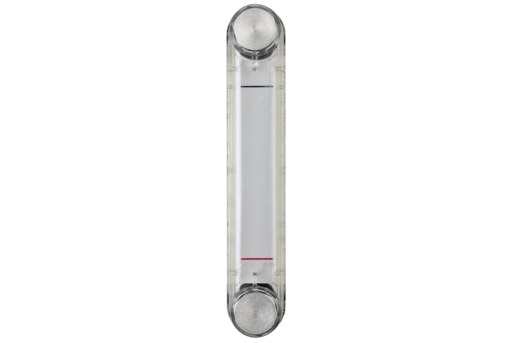

Oil level gauges, style A, without thermometer

More information

Drawings

Oil level gauges, style A, without thermometer

Item selection/filter

Item No.

StyleBD1HH1LL1L2L3Number of fastening screwsCADAcc.PriceOrder
K0443.1076A27M1020211037644372on request
K0443.1127A27M12191815112795802on request

Oil level gauges, style B, with thermometer

More information

Drawings

Oil level gauges, style B, with thermometer

Item selection/filter

Item No.StyleBD1HH1LL1L2L3Number of fastening screwsThermometer scaleCADAcc.PriceOrder
K0443.2076B27M10202110376443720 - 80 °C / 50 - 175 °Fon request
K0443.2127B27M121918151127958020 - 100 °C / 50 - 200 °Fon request
