Indexing plungers - Premium with cylindrical pin, Form C
K0736_C

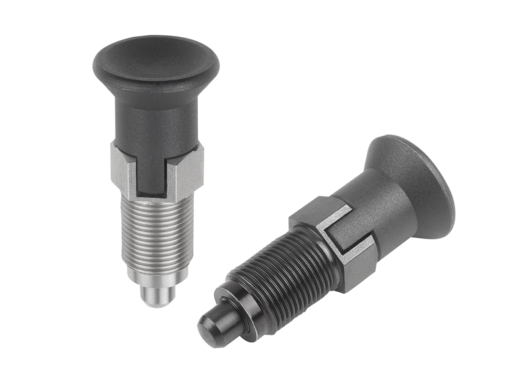

Indexing plungers - Premium with cylindrical pin, Form C

go back

Item description/product images

DescriptionMaterial:Steel version:
indexing pin hardened: grade 5.8

Stainless steel version:
indexing pin hardened: threaded body 1.4305 (AISI 303 equivalent), indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black gray thermoplastic.
Version:Steel version:
indexing pin hardened, ground and black oxide finish.

Stainless steel version:
indexing pin hardened, ground and bright.
Note:Premium indexing plungers are characterized by more stringent manufacturing requirements for the indexing plungers and threaded body. In addition, a centering locator that can be used to increase the positioning accuracy is provided on the threaded body. These indexing plungers are used when it is necessary to prevent shifting of the locked position by transverse forces and greater positioning accuracy is required. A new locking position can only be set after the pin has been manually disengaged. When high lateral forces are to be expected, the centering locator should be used.
Assembly:When using the threaded body centering, it is recommended the receiving reamed hole be machined before tapping.On request:Special versions and spacer rings.Accessory:Matching cylindrical bushing K0736.
Locknut K0700….
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0736_C Indexing plungers - Premium with cylindrical pin, Form C 336 kB

Drawings

Indexing plungers - Premium with cylindrical pin, Form C

Item selection/filter

Item No.StyleMain
material
DD1D2D3D4D5LL1L2L3L4HSW1Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K0736.43105Csteel5M10x121866 -0,01/-0,0243,51771535131,3512on request
K0736.43206Csteel6M12x1,525108,58,5 -0,01/-0,0351,72081736141,8614on request
K0736.43308Csteel8M16x1,53313,51111 -0,01/-0,036826102348192,31535on request
K0736.43410Csteel10M20x1,533171111 -0,01/-0,0374281225410222,81534on request
K0736.403105Cstainless steel5M10x121866 -0,01/-0,0243,51771535131,3512on request
K0736.403206Cstainless steel6M12x1,525108,58,5 -0,01/-0,0351,72081736141,8614on request
K0736.403308Cstainless steel8M16x1,53313,51111 -0,01/-0,036826102348192,31535on request
K0736.403410Cstainless steel10M20x1,533171111 -0,01/-0,0374281225410222,81534on request
