Swivel feet plateswith vibration absorption
K0419

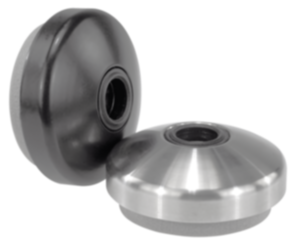

Swivel feet plates with vibration absorption

go back

Item description/product images

DescriptionMaterial:Plate die-cast zinc or stainless steel 1.4305 (AISI 303 equivalent).
Damper plate PUR elastomere (Sylomer V12).
Version:Die-cast zinc plate, black powder-coated.
Stainless steel plate, bright.
Damper plate, gray, glued in, anti-slip.
Temp. range -30 °C to +70 °C.
Order information:

If the swivel foot plate and the threaded spindle or ball joint are to be supplied assembled, please add the suffix "assembled" to the order number for the plate and the spindle or ball joint.
(e.g. K0419.20601 and K0421.060151 assembled.)

Note:

The load rating given in the table is a recommendation of the permanent static load up to which the absorption unit should be used. This static load corresponds to a surface pressure of 0.4 N/mm², at which the material achieves its optimum absorption properties. Here it is taken into account that under dynamic demands an additional load, up to 0.6 N/mm² may occur. The damper plate absorbs vibrations and prevents the swivel foot slipping. Swivel feet consist of a plate and a threaded spindle or ball joint. Any plate can be combined with any threaded spindle or ball joint.
For matching threaded spindles see K0421.
For matching ball joints see K0422.

Drawing reference:
1) damper plate
RoHS
DownloadHere is all the information as a PDF datasheet:
 Datasheet K0419 Swivel feet plateswith vibration absorption 183 kB

Drawings

Swivel feet plateswith vibration absorption

Item selection/filter

Item No.Main
material
D

D1HH1
by 0 / 0.4 / 0.6
N/mm²
Load rating
max. kN
CADAcc.PriceOrder
K0419.20401zinc4030,5257 / 5,9 / 4,80,062 on request
K0419.20501zinc5040,5257 / 5,9 / 4,80,212 on request
K0419.20601zinc6050257 / 5,9 / 4,80,433 on request
K0419.20801zinc8068257 / 5,9 / 4,80,614 on request
K0419.20402stainless steel4030,5257 / 5,8 / 4,90,212 on request
K0419.20502stainless steel5040,5257 / 5,8 / 4,90,435 on request
K0419.20602stainless steel6050257 / 5,8 / 4,90,705 on request
K0419.20802stainless steel8068257 / 5,8 / 4,91,372 on request
