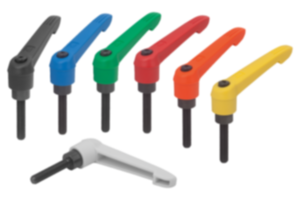

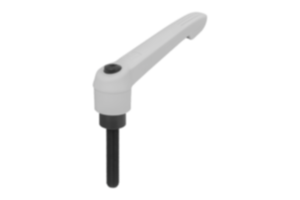

K0269 MetricAdjustable Handles, Modern Design Style, with external thread,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle fiberglass reinforced plastic with die-cast zinc toothed ring.
Steel parts grade 5.8.Version:Steel parts black oxidized.On request:Other threads, screw lengths and special versions.
Dimension “H1” available in other lengths at extra charge.Drawing reference:1) flat point DIN EN ISO 4753 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Item No.
| X | A | A1 | B | D | D1 | D2 | H | H1 | H2 | H3 | H4 | No. of
teeth
| L | Filter |
|---|
| K0269.105ΔX | M5 | 40 | 47 | 7,5 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 16 | 10/15/20/25/30/35/40/45/50 |  | | K0269.106ΔX | M6 | 40 | 47 | 7,5 | 10 | 13 | 14,5 | 24,5 | 4 | 15 | 30 | 33,5 | 16 | 10/15/20/25/30/35/40/45/50 | | | K0269.206ΔX | M6 | 65 | 75 | 9,5 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 20 | 15/20/25/30/35/40/45/50/55/60 | | | K0269.208ΔX | M8 | 65 | 75 | 9,5 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 20 | 15/20/25/30/35/40/45/50/55/60 | | | K0269.210ΔX | M10 | 65 | 75 | 9,5 | 13,5 | 18 | 19,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 20 | 15/20/25/30/35/40/45/50/55/60 | | | K0269.308ΔX | M8 | 80 | 91,5 | 11 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 22 | 15/20/25/30/35/40/45/50/55/60 | | | K0269.310ΔX | M10 | 80 | 91,5 | 11 | 16 | 21,5 | 23 | 37 | 10 | 24 | 53,5 | 58 | 22 | 15/20/25/30/35/40/45/50/55/60 | | | K0269.410ΔX | M10 | 95 | 109 | 13 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 24 | 20/25/30/35/40/45/50/55/60/70/80/90 | | | K0269.412ΔX | M12 | 95 | 109 | 13 | 19 | 25,5 | 27,5 | 43 | 10 | 26 | 61 | 66 | 24 | 20/25/30/35/40/45/50/55/60/70/80/90 | | | K0269.512ΔX | M12 | 110 | 126 | 15,5 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 26 | 25/30/35/40/45/50/55/60/70/80/90 | | | K0269.516ΔX | M16 | 110 | 126 | 15,5 | 23 | 30 | 32,5 | 49 | 12 | 33 | 72 | 77 | 26 | 25/30/35/40/45/50/55/60/70/80/90 | |
