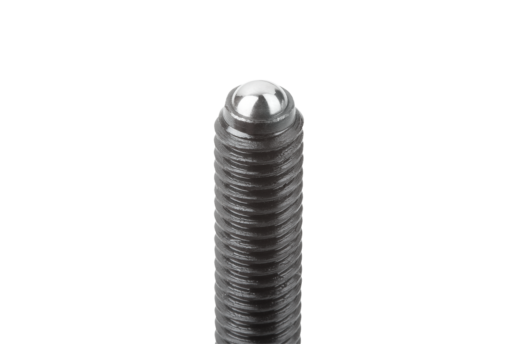

K0780_CAdjustable Handles with thrust pad, Style C, with ball |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle fiberglass reinforced plastic with die-cast zinc toothed ring.
Steel parts grade 5.8.
Ball, steel.Version:Steel parts black oxidized.Note:The various different thrust pins are used to avoid pressure marks, compensate for unevenness or increase the grip on the workpiece.
Where L ≥ 60 mm the thread length is always 60 mm.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Item No.
| style | Component
material | Size | X | D | D1 | D2 | Ball Ø | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| L | CAD | Acc. | Price | Order |
|---|
| K0780.31051X20 | C | ball steel | 1 | M5 | 10 | 13 | 14,5 | 3 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 19,5 | | | 10.11 $ (USD) | | | K0780.31051X30 | C | ball steel | 1 | M5 | 10 | 13 | 14,5 | 3 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 29,5 | | | 10.11 $ (USD) | | | K0780.31051X40 | C | ball steel | 1 | M5 | 10 | 13 | 14,5 | 3 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 39,5 | | | 11.05 $ (USD) | | | K0780.31051X50 | C | ball steel | 1 | M5 | 10 | 13 | 14,5 | 3 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 49,5 | | | 11.05 $ (USD) | | | K0780.31061X20 | C | ball steel | 1 | M6 | 10 | 13 | 14,5 | 4 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 19,3 | | | 10.11 $ (USD) | | | K0780.31061X30 | C | ball steel | 1 | M6 | 10 | 13 | 14,5 | 4 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 29,3 | | | 10.11 $ (USD) | | | K0780.31061X40 | C | ball steel | 1 | M6 | 10 | 13 | 14,5 | 4 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 39,3 | | | 11.05 $ (USD) | | | K0780.31061X50 | C | ball steel | 1 | M6 | 10 | 13 | 14,5 | 4 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 49,3 | | | 11.05 $ (USD) | | | K0780.32061X20 | C | ball steel | 2 | M6 | 13,5 | 18 | 19,5 | 4 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 19,3 | | | 11.54 $ (USD) | | | K0780.32061X30 | C | ball steel | 2 | M6 | 13,5 | 18 | 19,5 | 4 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 29,3 | | | 11.54 $ (USD) | | | K0780.32061X40 | C | ball steel | 2 | M6 | 13,5 | 18 | 19,5 | 4 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 39,3 | | | 12.41 $ (USD) | | | K0780.32061X50 | C | ball steel | 2 | M6 | 13,5 | 18 | 19,5 | 4 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 49,3 | | | 12.41 $ (USD) | | | K0780.32061X60 | C | ball steel | 2 | M6 | 13,5 | 18 | 19,5 | 4 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 59,3 | | | 12.41 $ (USD) | | | K0780.32081X20 | C | ball steel | 2 | M8 | 13,5 | 18 | 19,5 | 5,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 19,2 | | | 11.54 $ (USD) | | | K0780.32081X30 | C | ball steel | 2 | M8 | 13,5 | 18 | 19,5 | 5,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 29,2 | | | 11.54 $ (USD) | | | K0780.32081X40 | C | ball steel | 2 | M8 | 13,5 | 18 | 19,5 | 5,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 39,2 | | | 12.41 $ (USD) | | | K0780.32081X50 | C | ball steel | 2 | M8 | 13,5 | 18 | 19,5 | 5,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 49,2 | | | 12.41 $ (USD) | | | K0780.32081X60 | C | ball steel | 2 | M8 | 13,5 | 18 | 19,5 | 5,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 59,2 | | | 12.41 $ (USD) | | | K0780.32101X20 | C | ball steel | 2 | M10 | 13,5 | 18 | 19,5 | 7 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 19,7 | | | 11.54 $ (USD) | | | K0780.32101X30 | C | ball steel | 2 | M10 | 13,5 | 18 | 19,5 | 7 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 29,7 | | | 11.54 $ (USD) | | | K0780.32101X40 | C | ball steel | 2 | M10 | 13,5 | 18 | 19,5 | 7 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 39,7 | | | 12.41 $ (USD) | | | K0780.32101X50 | C | ball steel | 2 | M10 | 13,5 | 18 | 19,5 | 7 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 49,7 | | | 12.41 $ (USD) | | | K0780.32101X60 | C | ball steel | 2 | M10 | 13,5 | 18 | 19,5 | 7 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 59,7 | | | 12.41 $ (USD) | |
