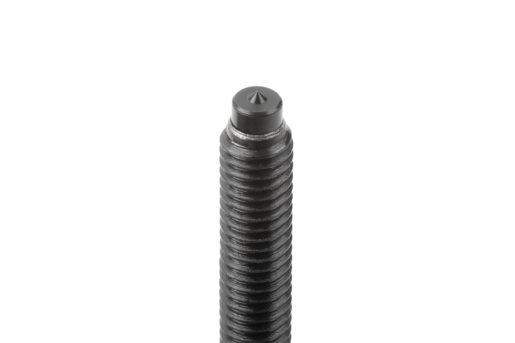

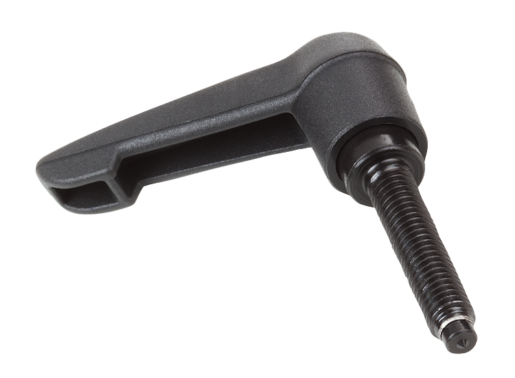

K0780_EAdjustable Handles with thrust pad, Style E, with point |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handles fiberglass reinforced plastic with die-cast zinc toothed rings.
Steel parts grade 5.8.
Thrust pin, steel.Version:Steel parts black oxidized.Note:The various different thrust pins are used to avoid pressure marks, compensate for unevenness or increase the grip on the workpiece.
Where L ≥ 60 mm the thread length is always 60 mm.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Item No.
| style | Component
material | Size | X | D | D1 | D2 | D3 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| L | L1 | CAD | Acc. | Price | Order |
|---|
| K0780.51051X20 | E | steel point | 1 | M5 | 10 | 13 | 14,5 | 3 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 20 | 0,5 | | | 11.05 $ (USD) | | | K0780.51051X30 | E | steel point | 1 | M5 | 10 | 13 | 14,5 | 3 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 30 | 0,5 | | | 11.05 $ (USD) | | | K0780.51051X40 | E | steel point | 1 | M5 | 10 | 13 | 14,5 | 3 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 40 | 0,5 | | | 12.04 $ (USD) | | | K0780.51051X50 | E | steel point | 1 | M5 | 10 | 13 | 14,5 | 3 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 50 | 0,5 | | | 12.04 $ (USD) | | | K0780.51061X20 | E | steel point | 1 | M6 | 10 | 13 | 14,5 | 4 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 20 | 0,8 | | | 11.05 $ (USD) | | | K0780.51061X30 | E | steel point | 1 | M6 | 10 | 13 | 14,5 | 4 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 30 | 0,8 | | | 11.05 $ (USD) | | | K0780.51061X40 | E | steel point | 1 | M6 | 10 | 13 | 14,5 | 4 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 40 | 0,8 | | | 12.04 $ (USD) | | | K0780.51061X50 | E | steel point | 1 | M6 | 10 | 13 | 14,5 | 4 | 24,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | 50 | 0,8 | | | 12.04 $ (USD) | | | K0780.52061X20 | E | steel point | 2 | M6 | 13,5 | 18 | 19,5 | 4 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 20 | 0,8 | | | 12.61 $ (USD) | | | K0780.52061X30 | E | steel point | 2 | M6 | 13,5 | 18 | 19,5 | 4 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 30 | 0,8 | | | 12.61 $ (USD) | | | K0780.52061X40 | E | steel point | 2 | M6 | 13,5 | 18 | 19,5 | 4 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 40 | 0,8 | | | 13.57 $ (USD) | | | K0780.52061X50 | E | steel point | 2 | M6 | 13,5 | 18 | 19,5 | 4 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 50 | 0,8 | | | 13.57 $ (USD) | | | K0780.52061X60 | E | steel point | 2 | M6 | 13,5 | 18 | 19,5 | 4 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 60 | 0,8 | | | 13.57 $ (USD) | | | K0780.52081X20 | E | steel point | 2 | M8 | 13,5 | 18 | 19,5 | 5,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 20 | 1 | | | 12.61 $ (USD) | | | K0780.52081X30 | E | steel point | 2 | M8 | 13,5 | 18 | 19,5 | 5,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 30 | 1 | | | 12.61 $ (USD) | | | K0780.52081X40 | E | steel point | 2 | M8 | 13,5 | 18 | 19,5 | 5,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 40 | 1 | | | 13.57 $ (USD) | | | K0780.52081X50 | E | steel point | 2 | M8 | 13,5 | 18 | 19,5 | 5,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 50 | 1 | | | 13.57 $ (USD) | | | K0780.52081X60 | E | steel point | 2 | M8 | 13,5 | 18 | 19,5 | 5,5 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 60 | 1 | | | 13.57 $ (USD) | | | K0780.52101X20 | E | steel point | 2 | M10 | 13,5 | 18 | 19,5 | 7 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 20 | 1,5 | | | 12.61 $ (USD) | | | K0780.52101X30 | E | steel point | 2 | M10 | 13,5 | 18 | 19,5 | 7 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 30 | 1,5 | | | 12.61 $ (USD) | | | K0780.52101X40 | E | steel point | 2 | M10 | 13,5 | 18 | 19,5 | 7 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 40 | 1,5 | | | 13.57 $ (USD) | | | K0780.52101X50 | E | steel point | 2 | M10 | 13,5 | 18 | 19,5 | 7 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 50 | 1,5 | | | 13.57 $ (USD) | | | K0780.52101X60 | E | steel point | 2 | M10 | 13,5 | 18 | 19,5 | 7 | 28,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | 60 | 1,5 | | | 13.57 $ (USD) | |
