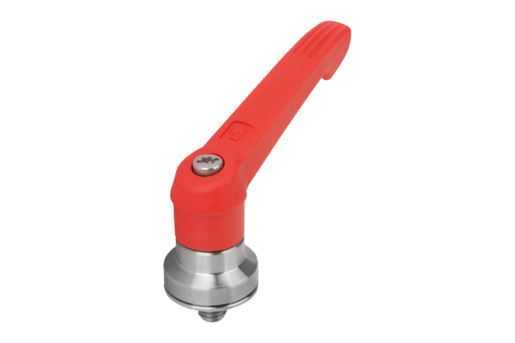

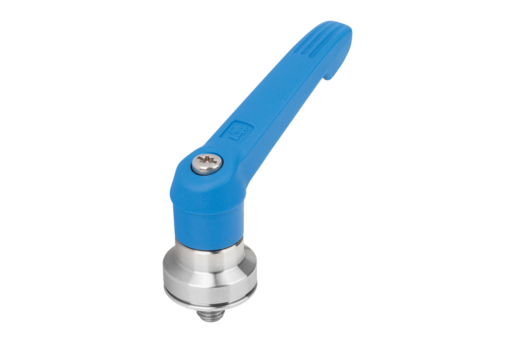

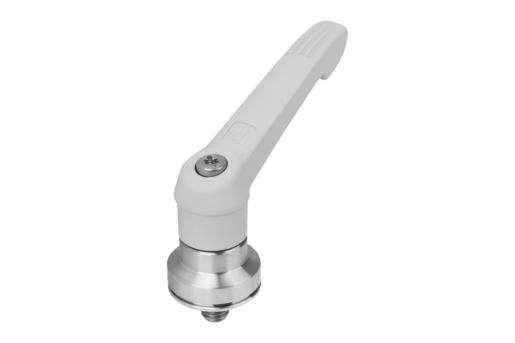

Plastic clamping lever with male thread and clamping force intensifier
K1598

Plastic clamping lever with male thread and clamping force...

go back

Item description/product images

DescriptionProduct description:Material:Handle fiberglass reinforced plastic with die-cast zinc toothed ring.
Steel parts stainless steel 1.4305 (AISI 303 equivalent).
Version:Note:Δ Add the desired handle color here.Type of operation:The handle lever is engaged in the toothed insert by means of a toothed ring when not actuated, enabling the thread to be tightened or loosened. By lifting the handle, it can be repositioned and re-engaged in the toothed ring by spring force.Application:Machine, equipment and plant construction, rehabilitation sector.Benefits:Significant increase of the clamping force with the same tightening torque.
High quality axial needle bearing with high load rating and long service life.
The component surface is protected by the stationary lower ring
On request:Special versions.
Other colours and thread lengths.

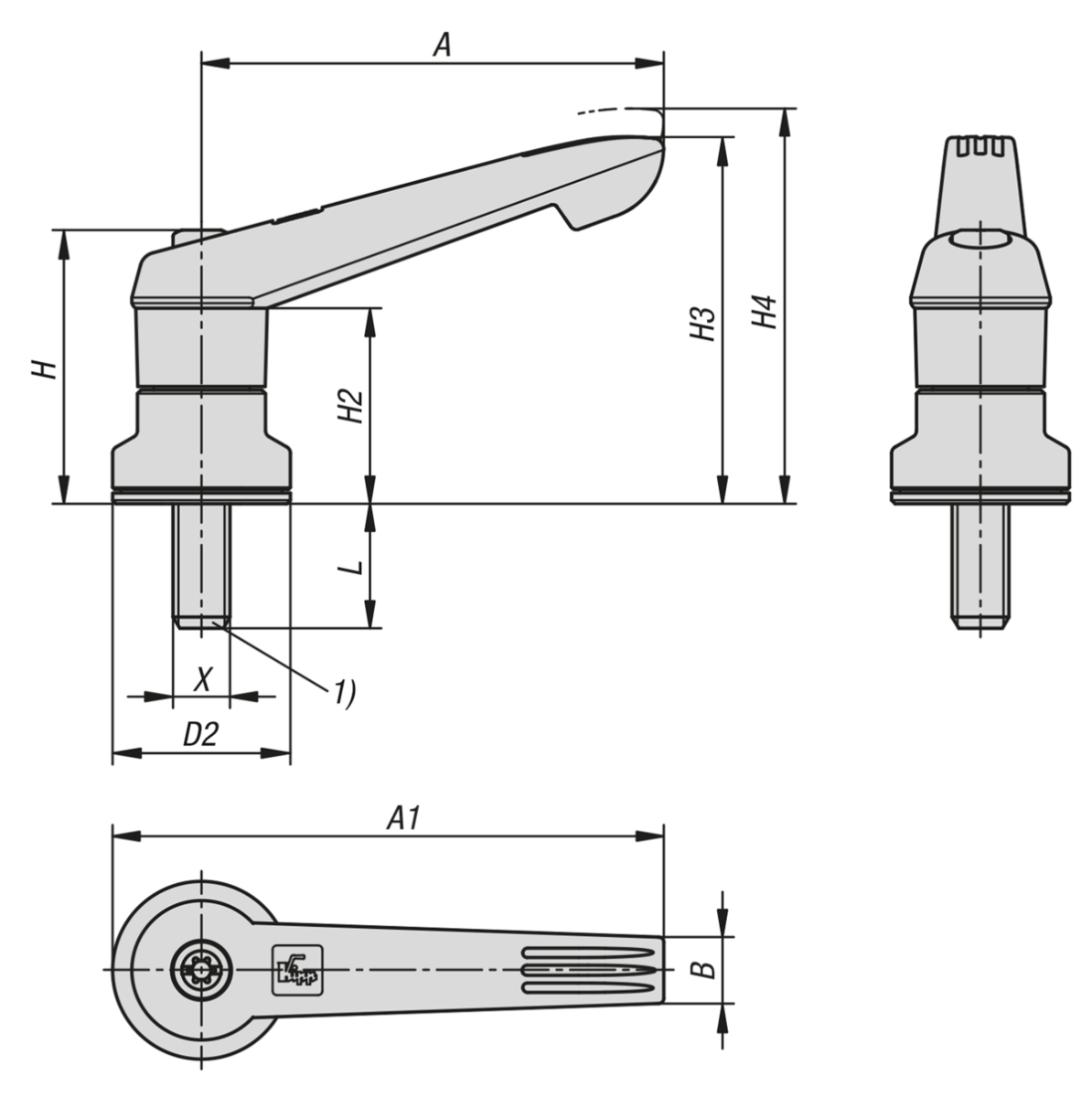

Drawing reference:
1) flat point DIN 78
Special features:
RoHSstainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1598 Plastic clamping lever with male thread and clamping force intensifier 597 kB
