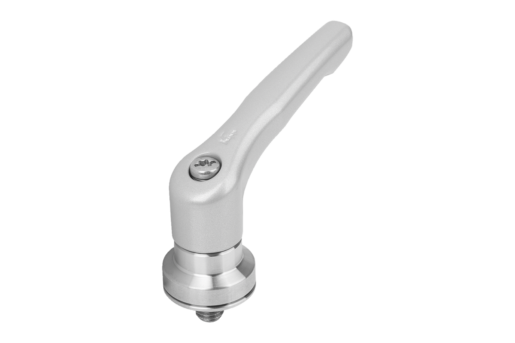

K1626Clamping levers, zinc with male thread and clamping force... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Material:Handle die-cast zinc DIN EN 12844.
Steel parts stainless steel 1.4305 (AISI 303 equivalent).Version:Note:Standard colors are:
black satin finish, orange RAL 2004, ruby red RAL 3003, silver metallic, high gloss chromate.Type of operation:Application:Machine, equipment and plant construction, rehabilitation sector.Benefits:Significant increase of the clamping force with the same tightening torque.
High quality axial needle bearing with high load rating and long service life.
The component surface is protected by the stationary lower ring.On request:Drawing reference:1) flat point DIN EN ISO 4753 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
color | Surface finish
body | X | D2
| H | H2 | H3 | H4 | A | A1 | B | L | CAD | Acc. | Price | Order |
|---|
| K1626.2081X10 | black | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 10 |  | | 62.24 $ (USD) | | | K1626.2081X20 | black | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 20 | | | 62.24 $ (USD) | | | K1626.2081X30 | black | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 30 | | | 62.24 $ (USD) | | | K1626.2081X40 | black | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 40 | | | 63.20 $ (USD) | | | K1626.3101X15 | black | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 15 | | | 64.88 $ (USD) | | | K1626.3101X30 | black | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 30 | | | 64.88 $ (USD) | | | K1626.3101X40 | black | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 40 | | | 66.02 $ (USD) | | | K1626.3101X50 | black | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 50 | | | 66.02 $ (USD) | | | K1626.4101X20 | black | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 20 | | | 70.10 $ (USD) | | | K1626.4101X30 | black | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 30 | | | 70.10 $ (USD) | | | K1626.4101X40 | black | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 40 | | | 72.88 $ (USD) | | | K1626.4101X50 | black | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 50 | | | 72.88 $ (USD) | | | K1626.5121X20 | black | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 20 | | | 80.62 $ (USD) | | | K1626.5121X30 | black | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 30 | | | 80.62 $ (USD) | | | K1626.5121X40 | black | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 40 | | | 85.10 $ (USD) | | | K1626.5121X50 | black | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 50 | | | 85.10 $ (USD) | | | K1626.2082X10 | orange RAL 2004 | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 10 | | | 62.24 $ (USD) | | | K1626.2082X20 | orange RAL 2004 | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 20 | | | 62.24 $ (USD) | | | K1626.2082X30 | orange RAL 2004 | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 30 | | | 62.24 $ (USD) | | | K1626.2082X40 | orange RAL 2004 | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 40 | | | 63.20 $ (USD) | | | K1626.3102X15 | orange RAL 2004 | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 15 | | | 64.88 $ (USD) | | | K1626.3102X30 | orange RAL 2004 | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 30 | | | 64.88 $ (USD) | | | K1626.3102X40 | orange RAL 2004 | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 40 | | | 66.02 $ (USD) | | | K1626.3102X50 | orange RAL 2004 | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 50 | | | 66.02 $ (USD) | | | K1626.4102X20 | orange RAL 2004 | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 20 | | | 70.10 $ (USD) | | | K1626.4102X30 | orange RAL 2004 | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 30 | | | 70.10 $ (USD) | | | K1626.4102X40 | orange RAL 2004 | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 40 | | | 72.88 $ (USD) | | | K1626.4102X50 | orange RAL 2004 | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 50 | | | 72.88 $ (USD) | | | K1626.5122X20 | orange RAL 2004 | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 20 | | | 80.62 $ (USD) | | | K1626.5122X30 | orange RAL 2004 | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 30 | | | 80.62 $ (USD) | | | K1626.5122X40 | orange RAL 2004 | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 40 | | | 85.10 $ (USD) | | | K1626.5122X50 | orange RAL 2004 | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 50 | | | 85.10 $ (USD) | | | K1626.20827X10 | ruby red RAL3003 | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 10 | | | 62.24 $ (USD) | | | K1626.20827X20 | ruby red RAL3003 | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 20 | | | 62.24 $ (USD) | | | K1626.20827X30 | ruby red RAL3003 | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 30 | | | 62.24 $ (USD) | | | K1626.20827X40 | ruby red RAL3003 | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 40 | | | 63.20 $ (USD) | | | K1626.31027X15 | ruby red RAL3003 | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 15 | | | 64.88 $ (USD) | | | K1626.31027X30 | ruby red RAL3003 | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 30 | | | 64.88 $ (USD) | | | K1626.31027X40 | ruby red RAL3003 | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 40 | | | 66.02 $ (USD) | | | K1626.31027X50 | ruby red RAL3003 | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 50 | | | 66.02 $ (USD) | | | K1626.41027X20 | ruby red RAL3003 | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 20 | | | 70.10 $ (USD) | | | K1626.41027X30 | ruby red RAL3003 | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 30 | | | 70.10 $ (USD) | | | K1626.41027X40 | ruby red RAL3003 | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 40 | | | 72.88 $ (USD) | | | K1626.41027X50 | ruby red RAL3003 | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 50 | | | 72.88 $ (USD) | | | K1626.51227X20 | ruby red RAL3003 | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 20 | | | 80.62 $ (USD) | | | K1626.51227X30 | ruby red RAL3003 | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 30 | | | 80.62 $ (USD) | | | K1626.51227X40 | ruby red RAL3003 | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 40 | | | 85.10 $ (USD) | | | K1626.51227X50 | ruby red RAL3003 | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 50 | | | 85.10 $ (USD) | | | K1626.2083X10 | silver metallic | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 10 | | | 62.24 $ (USD) | | | K1626.2083X20 | silver metallic | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 20 | | | 62.24 $ (USD) | | | K1626.2083X30 | silver metallic | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 30 | | | 62.24 $ (USD) | | | K1626.2083X40 | silver metallic | powder coated | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 40 | | | 63.20 $ (USD) | | | K1626.3103X15 | silver metallic | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 15 | | | 64.88 $ (USD) | | | K1626.3103X30 | silver metallic | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 30 | | | 64.88 $ (USD) | | | K1626.3103X40 | silver metallic | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 40 | | | 66.02 $ (USD) | | | K1626.3103X50 | silver metallic | powder coated | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 50 | | | 66.02 $ (USD) | | | K1626.4103X20 | silver metallic | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 20 | | | 70.10 $ (USD) | | | K1626.4103X30 | silver metallic | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 30 | | | 70.10 $ (USD) | | | K1626.4103X40 | silver metallic | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 40 | | | 72.88 $ (USD) | | | K1626.4103X50 | silver metallic | powder coated | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 50 | | | 72.88 $ (USD) | | | K1626.5123X20 | silver metallic | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 20 | | | 80.62 $ (USD) | | | K1626.5123X30 | silver metallic | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 30 | | | 80.62 $ (USD) | | | K1626.5123X40 | silver metallic | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 40 | | | 85.10 $ (USD) | | | K1626.5123X50 | silver metallic | powder coated | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 50 | | | 85.10 $ (USD) | | | K1626.2086X10 | silver | high-gloss chromed | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 10 | | | 62.24 $ (USD) | | | K1626.2086X20 | silver | high-gloss chromed | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 20 | | | 62.24 $ (USD) | | | K1626.2086X30 | silver | high-gloss chromed | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 30 | | | 62.24 $ (USD) | | | K1626.2086X40 | silver | high-gloss chromed | M8 | 25 | 38,5 | 27,7 | 52,6 | 55,6 | 65 | 77,5 | 10 | 40 | | | 63.20 $ (USD) | | | K1626.3106X15 | silver | high-gloss chromed | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 15 | | | 64.88 $ (USD) | | | K1626.3106X30 | silver | high-gloss chromed | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 30 | | | 64.88 $ (USD) | | | K1626.3106X40 | silver | high-gloss chromed | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 40 | | | 66.02 $ (USD) | | | K1626.3106X50 | silver | high-gloss chromed | M10 | 30 | 47 | 33,9 | 64,4 | 68,6 | 80 | 95 | 11,2 | 50 | | | 66.02 $ (USD) | | | K1626.4106X20 | silver | high-gloss chromed | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 20 | | | 70.10 $ (USD) | | | K1626.4106X30 | silver | high-gloss chromed | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 30 | | | 70.10 $ (USD) | | | K1626.4106X40 | silver | high-gloss chromed | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 40 | | | 72.88 $ (USD) | | | K1626.4106X50 | silver | high-gloss chromed | M10 | 30 | 53,1 | 37,2 | 72,8 | 77,3 | 95 | 110 | 13,2 | 50 | | | 72.88 $ (USD) | | | K1626.5126X20 | silver | high-gloss chromed | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 20 | | | 80.62 $ (USD) | | | K1626.5126X30 | silver | high-gloss chromed | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 30 | | | 80.62 $ (USD) | | | K1626.5126X40 | silver | high-gloss chromed | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 40 | | | 85.10 $ (USD) | | | K1626.5126X50 | silver | high-gloss chromed | M12 | 35 | 59,1 | 41,9 | 83 | 87,5 | 110 | 127,5 | 15,4 | 50 | | | 85.10 $ (USD) | |
