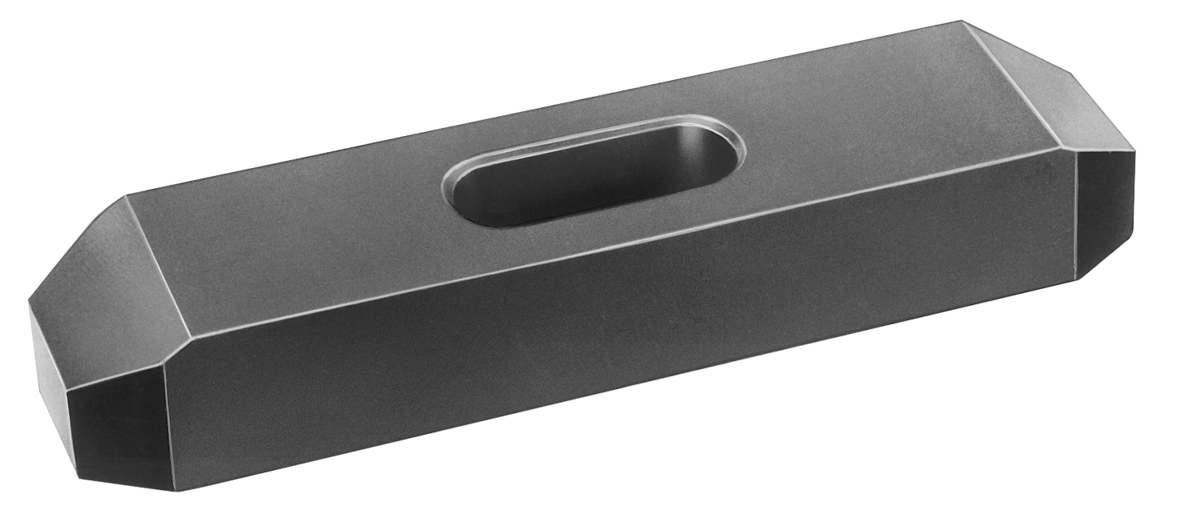

Clamp straps

Item description/product images

DescriptionMaterial:Carbon steel.Version:Tempered and black oxidized.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Item No.	A	B	C	D	E	F	G	H	Price
K0835.08063	63	19	25	19	9	25	12	7	34.51 $ (USD)
K0835.08080	80	24	32	24	9	25	12	7	38.72 $ (USD)
K0835.08100	100	30	40	30	9	25	16	10	42.08 $ (USD)
K0835.10063	63	19	25	19	11	25	12	7	34.51 $ (USD)
K0835.10080	80	24	32	24	11	25	16	10	36.85 $ (USD)
K0835.10100	100	30	40	30	11	25	16	10	42.08 $ (USD)
K0835.10125	125	40	45	40	11	32	19	13	52.22 $ (USD)
K0835.10160	160	55	50	55	11	32	19	13	57.68 $ (USD)
K0835.12063	63	19	25	19	13	32	16	10	37.70 $ (USD)
K0835.12080	80	24	32	24	13	32	16	10	41.60 $ (USD)
K0835.12100	100	30	40	30	13	32	19	13	47.79 $ (USD)
K0835.12125	125	40	45	40	13	32	19	13	54.27 $ (USD)
K0835.12160	160	55	50	55	13	32	25	15	66.88 $ (USD)
K0835.16080	80	27,5	25	27,5	17	32	16	10	43.89 $ (USD)
K0835.16100	100	34	32	34	17	38	19	13	52.06 $ (USD)
K0835.16125	125	42,5	40	42,5	17	38	19	13	58.54 $ (USD)
K0835.16160	160	55	50	55	17	38	25	15	74.03 $ (USD)
K0835.20100	100	34	32	34	21	38	19	13	52.85 $ (USD)
K0835.20125	125	42,5	40	42,5	21	38	25	15	64.93 $ (USD)
K0835.20160	160	55	50	55	21	38	25	15	74.88 $ (USD)
K0835.20200	200	68,5	63	68,5	21	50	25	15	97.66 $ (USD)
