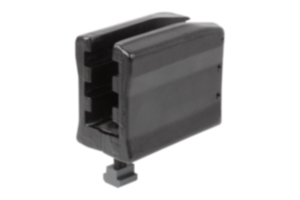

DescriptionMaterial:Carbon steel.Version:Forged, black electro zinc-plated.Application:The height of the clamping arm can be infinitely adjusted using the adjustment screw and the workpiece can then be clamped.Assembly:1. Position the support element on the machine table and fasten using the recommended torque. 2. Bring the clamping arm into the required position. 3. Clamp the workpiece by tightening the set screw.Benefits:- Very high retaining forces of 22–49 kN. - Simple element assembly. - Enables very fast, simple clamping. - Infinitely adjustable height and length. - Use in 14-28 mm T-slots or M12, M16, M20 grid systems. - Thrust pad available in smooth and serrated versions.Accessory:Raiser K1206 Thrust pads K1215 Supplied with- Clamping unit - 3 stage support element - Fastening setSpecial features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
