Hook clamps with mounting bracket

K0016 Metric

Hook clamps with mounting bracket

Products
- Clamping devices
  - Hook clamps with mounting bracket

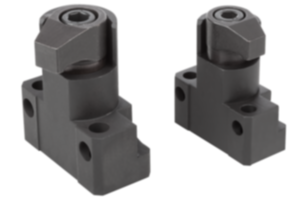

Item description/product images

DescriptionMaterial:Hook clamps and clamping screw carbon steel, tempered.Version:Black oxidized.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0016 Metric Hook clamps with mounting bracket

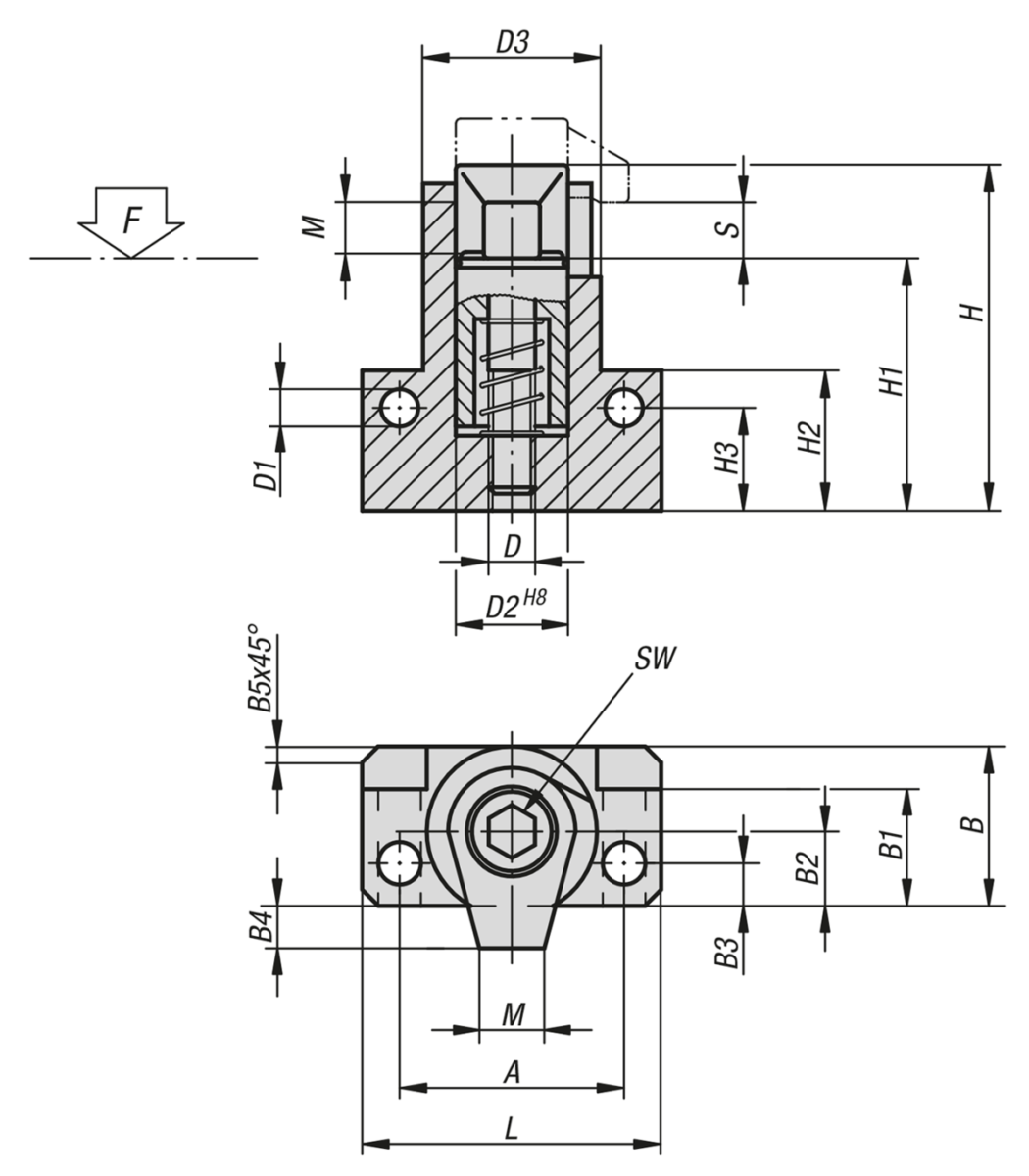

Drawings

Hook clamps with mounting bracket

Item selection/filter

Order No.	D	D1	D2	D3	A	B	B1	B2	B3	B4	B5	H	H1	H2	H3	L	M	S	SW	Max. tightening torque Nm	F max. kN	CAD	Acc.	Price	Order
K0016.08	M8	6,4	20	28	38	26	19,5	12	6	6	2,5	62	47,5	25	18	50	10	4	6	30	17			131.95 $ (USD)
K0016.10	M10	8,4	24	34	48	31	22,5	14	7,5	9	3	74	57,5	30	21	64	12	5	8	50	18			179.82 $ (USD)
K0016.12	M12	10,5	28	40	55	36,5	26	16,5	9	10,5	3,5	87	67	35	24	75	15	5	10	60	20			226.80 $ (USD)
K0016.16	M16	12,8	34	48	65	43,5	31	19,5	10	16,5	4	112	87	45	32	88	20	5	14	120	24			346.46 $ (USD)
