Clamp straps, similar to DIN 6314 straight, steel or aluminium

K1516

Clamp straps, similar to DIN 6314 straight, steel or aluminium

Products
- Clamping devices
  - Clamp straps, similar to DIN 6314 straight, steel or aluminium

Item description/product images

DescriptionMaterial:Carbon steel or EN AW-7022.Version:Steel painted.
Aluminum bright.Note:When using spherical washers use the wide series K0729 Form G.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1516 Clamp straps, similar to DIN 6314 straight, steel or aluminium

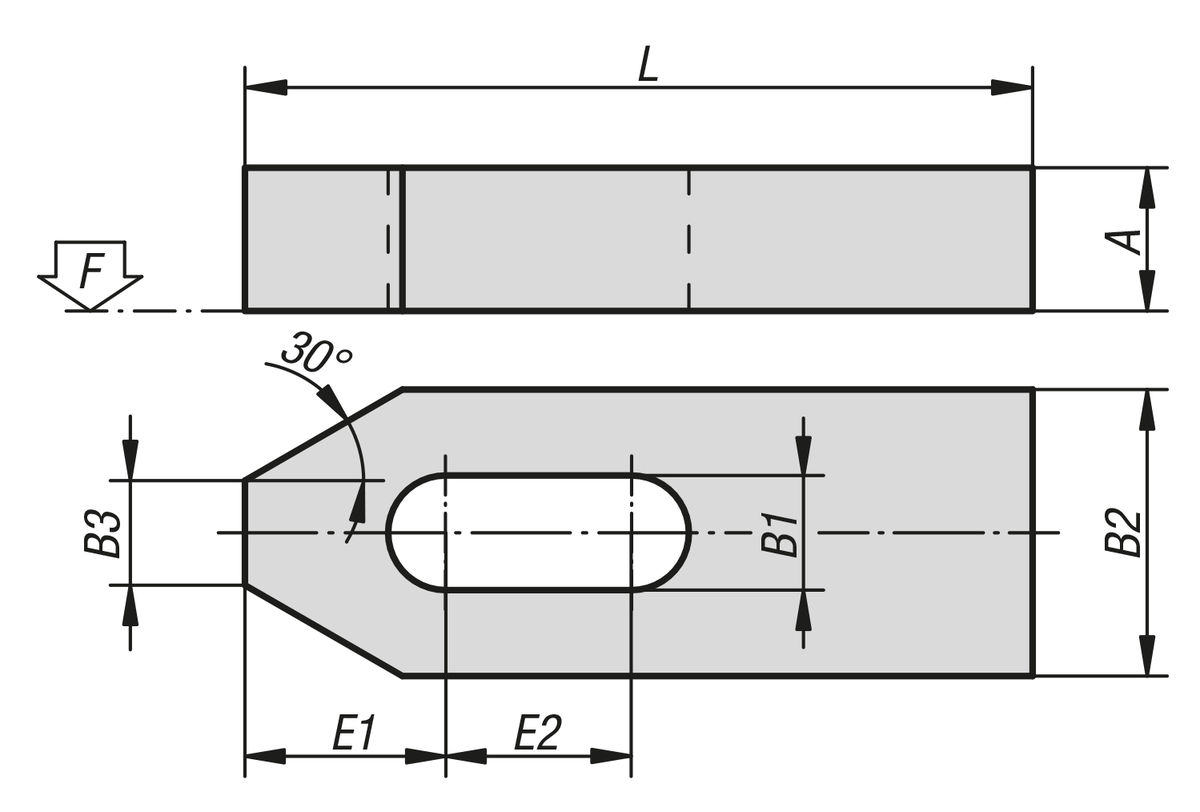

Drawings

Clamp straps, similar to DIN 6314 straight, steel or aluminium

Item selection/filter

Order No.	Main material	L	A	B1	B2	B3	E1	E2	F kN	for screw	CAD	Acc.	Price	Order
K1516.06	carbon steel	50	10	7	20	8	13,5	13	4,82	M6			12.08 $ (USD)
K1516.08	carbon steel	60	12	9	25	10	14,5	13	8,77	M8			15.08 $ (USD)
K1516.10	carbon steel	80	15	11	30	12	20,5	19	13,9	M10			16.65 $ (USD)
K1516.12	carbon steel	100	20	14	40	14	28	26	20,2	M12/M14			20.39 $ (USD)
K1516.14	carbon steel	125	20	14	40	14	28	36	20,2	M12/M14			23.47 $ (USD)
K1516.16	carbon steel	125	25	18	50	18	35	27	37,8	M16/M18			28.53 $ (USD)
K1516.18	carbon steel	160	25	18	50	18	35	47	37,8	M16/M18			37.69 $ (USD)
K1516.20	carbon steel	160	30	22	60	22	41	38	58,8	M20/M22			53.82 $ (USD)
K1516.201	carbon steel	200	30	22	60	22	41	58	58,8	M20/M22			67.01 $ (USD)
K1516.24	carbon steel	200	30	26	70	26	48	54	84,7	M24			77.35 $ (USD)
K1516.241	carbon steel	250	35	26	70	26	48	79	84,7	M24			111.73 $ (USD)
K1516.30	carbon steel	250	40	34	80	34	62	66	135	M30/M32			169.45 $ (USD)
K1516.301	carbon steel	315	50	34	80	34	62	96	135	M30/M32			215.87 $ (USD)
K1516.206	aluminum	50	10	7	20	8	13,5	13	4,82	M6			51.59 $ (USD)
K1516.208	aluminum	60	12	9	25	10	14,5	13	8,77	M8			53.12 $ (USD)
K1516.210	aluminum	80	15	11	30	12	20,5	19	13,9	M10			52.47 $ (USD)
K1516.212	aluminum	100	20	14	40	14	28	26	20,2	M12/M14			60.70 $ (USD)
K1516.214	aluminum	125	20	14	40	14	28	36	20,2	M12/M14			75.85 $ (USD)
K1516.216	aluminum	125	25	18	50	18	35	27	37,8	M16/M18			91.03 $ (USD)
K1516.218	aluminum	160	25	18	50	18	35	47	37,8	M16/M18			102.38 $ (USD)
K1516.220	aluminum	160	30	22	60	22	41	38	58,8	M20/M22			94.50 $ (USD)
K1516.2201	aluminum	200	30	22	60	22	41	58	58,8	M20/M22			124.85 $ (USD)
K1516.224	aluminum	200	30	26	70	26	48	54	84,7	M24			149.35 $ (USD)
K1516.2241	aluminum	250	35	26	70	26	48	79	84,7	M24			152.03 $ (USD)
K1516.230	aluminum	250	40	34	80	34	62	66	135	M30/M32			246.46 $ (USD)
K1516.2301	aluminum	315	50	34	80	34	62	96	135	M30/M32			303.43 $ (USD)
