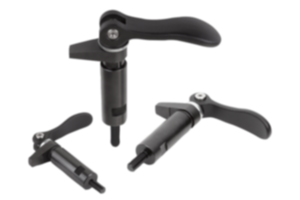

DescriptionMaterial:Body and hook, high-carbon steel.
Handles, cast aluminum EN AC-46200.
Thrust washer, fiberglass reinforced plastic PA 66 GF 35-X.
Hinge pin, stud and washer stainless steel 1.4305 (AISI 303 equivalent).Version:Body and hook tempered and black oxidised. Handles, black powder-coated. Thrust washer black. Hinge pin, stud and washer bright.Note:Ideal for clamping where the parts are to be inserted from above as the hook can be swivelled out of the way.
The exact clamping height is set by the fine thread on the stud using a screwdriver. This setting can be secured with the locking screw. The length S corresponds to the cam travel.Drawing reference:

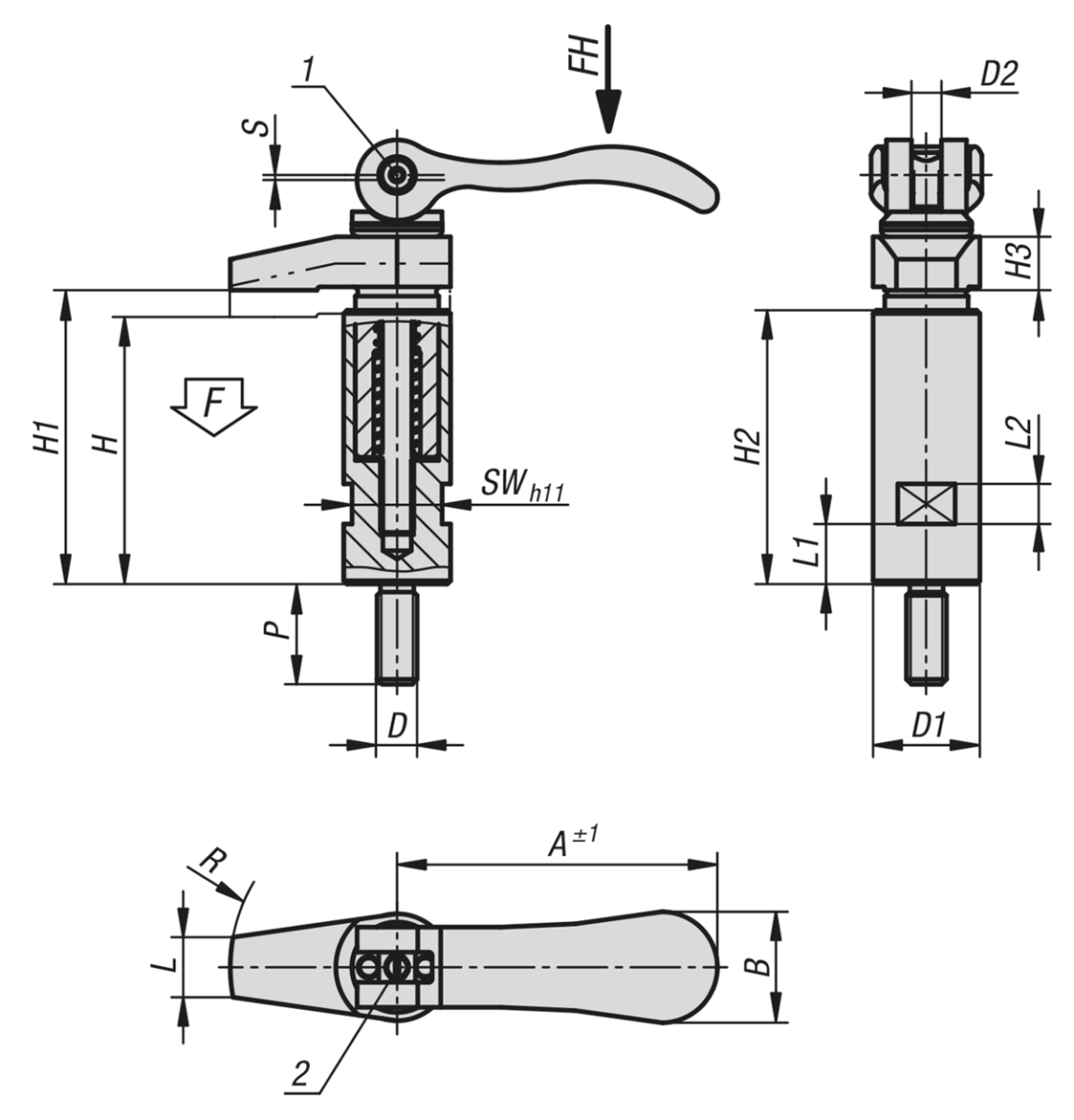

1) Locking screw for pin 2) Screw for fine adjustment of lever
Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
