Handwheels 2-spoke plastic, metric

go back

Products
- Handwheels
  - Two- and Three-Spoke Handwheels
    - Handwheels 2-spoke plastic
      - Handwheels 2-spoke plastic, metric

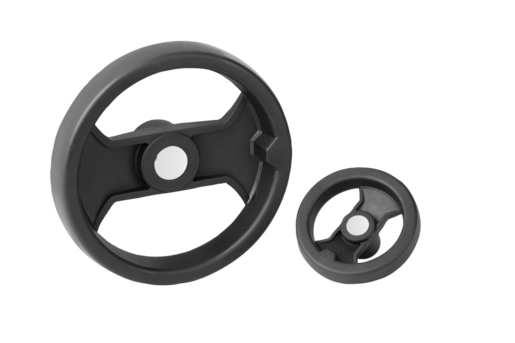

Item description/product images

DescriptionMaterial:Handwheel, reinforced and stabilized polyamide.
Center cap, polyamide.
Center bushing, steel.Version:Handwheel, oil and grease resistant, black (RAL 9011), satin finish.
Center cap, gray (RAL 7035).
Center bushing, black oxide finish (metric) or electro zinc-plated (inch).On request:Other cap colors.
Special versions.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0725 metric Handwheels 2-spoke plastic, metric

194 kB

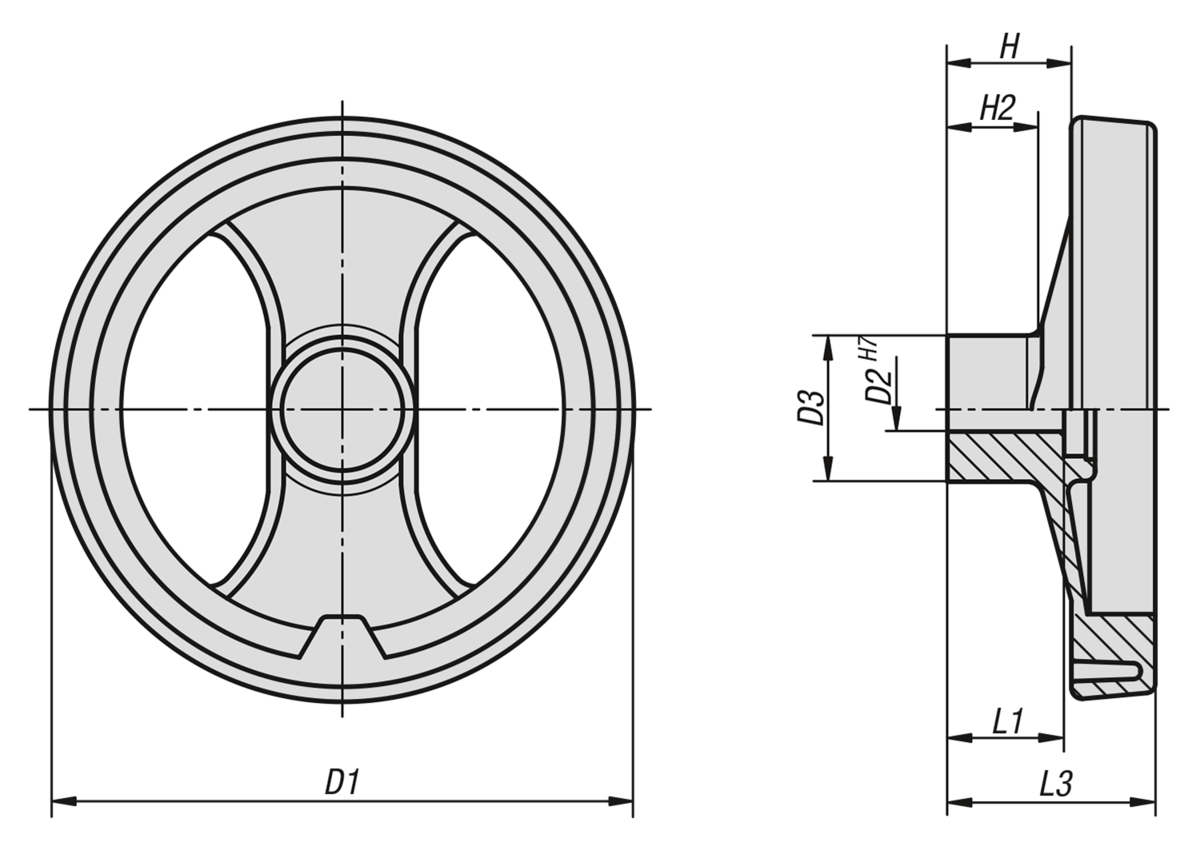

Drawings

Item selection/filter

Item No.	D1	D2	D3	H	H2	L1	L3	Price
K0725.0080X08	80	8H7	24,5	20	16	20	34	on request
K0725.0080X10	80	10H7	24,5	20	16	20	34	on request
K0725.0100X10	99	10H7	28	25,5	20	24	42	on request
K0725.0100X12	99	12H7	28	25,5	20	24	42	on request
K0725.0130X12	129	12H7	32	30	21	24	50	on request
K0725.0130X14	129	14H7	32	30	21	24	50	on request
K0725.0160X14	159	14H7	40	33	22	32	57	on request
K0725.0160X16	159	16H7	40	33	22	32	57	on request
K0725.0200X16	198	16H7	51	31	17,5	32	60	on request
K0725.0200X20	198	20H7	51	31	17,5	32	60	on request
K0725.0250X20	252	20H7	55,5	39,5	24	36	71	on request
K0725.0250X24	252	24H7	55,5	39,5	24	36	71	on request
K0725.0345X20	346	20H7	67,5	42	24	32	79	on request
