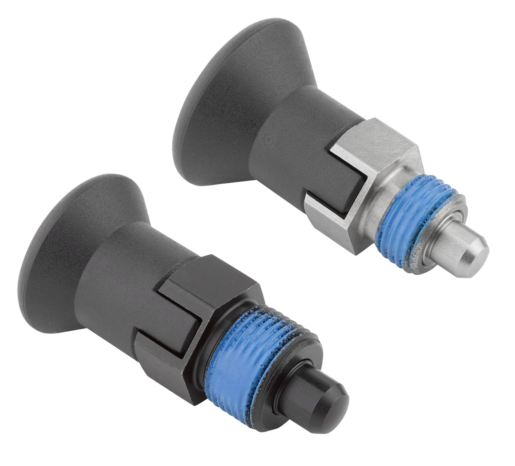

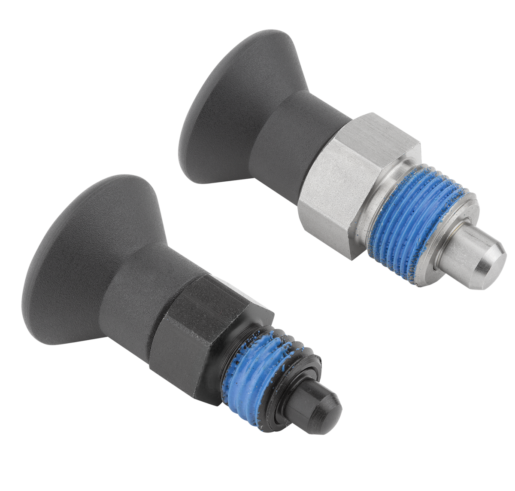

Indexing plungers short version, with thread lock, Style CP
K1097_CP

Indexing plungers short version, with thread lock, Style CP

go back

Item description/product images

DescriptionMaterial:Steel version:
Indexing pin hardened:
Threaded body and indexing pin steel.

Stainless steel version:
Indexing pin not hardened:
Threaded body and indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black gray thermoplastic.
Thread lock blue polyamide.
Version:Steel version:
Indexing pin hardened, ground, black oxidized.

Stainless steel version:
Indexing pin not hardened, ground, bright.
Note:Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. style CP is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back.
The thread lock enables the plunger to be screwed in to the exact depth required, no spacer ring is required.
The thread lock is a gripping polyamide coating that is applied punctiform (spot).
On request:Special versions.Accessory:Spacer rings K0665Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1097_CP Indexing plungers short version, with thread lock, Style CP 216 kB

Drawings

Indexing plungers short version, with thread lock, Style CP

Item selection/filter

Order No.Main
material
styleDD1D2LL1L2Travel
S
SW1Fx30°Spring force
initial pressure
F1 approx. N
Spring force
final pressure
F2 approx. N
CADAcc.PriceOrder
K1097.97903steelCP3M6x0,751425,5663,580,8410 19.01 $ (USD)
K1097.97004steelCP4M8x11829,5664101412 18.12 $ (USD)
K1097.97105steelCP5M10x12134,5875131,3512 17.23 $ (USD)
K1097.97206steelCP6M12x1,52541,71086141,8614 18.41 $ (USD)
K1097.97308steelCP8M16x1,5335412108192,31428 21.98 $ (USD)
K1097.97410steelCP10M20x1,53361151210222,81532 35.62 $ (USD)
K1097.197903stainless steelCP3M6x0,751425,5663,580,8410 27.92 $ (USD)
K1097.197004stainless steelCP4M8x11829,5664101412 26.57 $ (USD)
K1097.197105stainless steelCP5M10x12134,5875131,3512 25.34 $ (USD)
K1097.197206stainless steelCP6M12x1,52541,71086141,8614 29.75 $ (USD)
K1097.197308stainless steelCP8M16x1,5335412108192,31428 40.14 $ (USD)
K1097.197410stainless steelCP10M20x1,53361151210222,81532 74.94 $ (USD)
