Indexing plungers ECO with thread lock, Style CP

go back

Products
- Indexing Plungers
  - Indexing Plungers
    - Indexing plungers ECO with thread lock
      - Indexing plungers ECO with thread lock, Style CP

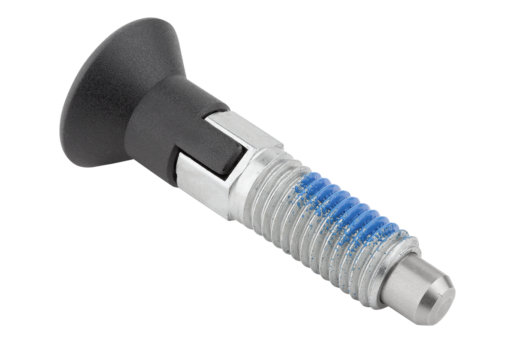

Item description/product images

DescriptionMaterial:Steel version:
Indexing pin not hardened:
Threaded body 1.0718.
Indexing pin 1.4305 (AISI 303 equivalent).

Stainless steel version:
Indexing pin not hardened:
Threaded body and indexing pin 1.4305 (AISI 303 equivalent).

Mushroom knob black gray thermoplastic.

Thread lock blue polyamide.Version:Steel version:
Indexing pin hardened.
Threaded body trivalent blue passivated.
Indexing pin bright.

Stainless steel version:
Indexing pin not hardened.
Steel parts bright.Note:On request:Special versions and fine thread.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1098_CP Metric Indexing plungers ECO with thread lock, Style CP

199 kB

Drawings

Item selection/filter

Order No.	Main material	style	D	D1	D2	L	L1	L2	L3	Travel S	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
K1098.193903060	stainless steel	CP	3	M6	14	31,5	12	5	10	3,5	6	0,8	4	10	7.24 $ (USD)
K1098.193004060	stainless steel	CP	4	M6	14	36	15	6	13	4	6	1	6	12	7.26 $ (USD)
K1098.193105080	stainless steel	CP	5	M8	14	40	17	7	15	5	8	1,3	6	12	8.56 $ (USD)
K1098.193206100	stainless steel	CP	6	M10	18	47,5	20	8	17	6	10	1,8	8	15	9.49 $ (USD)
K1098.193308120	stainless steel	CP	8	M12	25	61,7	26	10	23	8	12	2,3	8	19	11.29 $ (USD)
K1098.093903060	steel	CP	3	M6	14	31,5	12	5	10	3,5	6	0,8	4	10	6.57 $ (USD)
K1098.093004060	steel	CP	4	M6	14	36	15	6	13	4	6	1	6	12	6.60 $ (USD)
K1098.093105080	steel	CP	5	M8	14	40	17	7	15	5	8	1,3	6	12	7.52 $ (USD)
K1098.093206100	steel	CP	6	M10	18	47,5	20	8	17	6	10	1,8	8	15	8.43 $ (USD)
K1098.093308120	steel	CP	8	M12	25	61,7	26	10	23	8	12	2,3	8	19	10.28 $ (USD)
