Clevis joints stainless steel DIN 71752

K0732

Clevis joints stainless steel DIN 71752

Products
- Joints
  - Clevis joints stainless steel DIN 71752

Item description/product images

DescriptionMaterial:

Stainless steel 1.4305 (AISI 303 equivalent).

Version:Bright.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0732 Clevis joints stainless steel DIN 71752

Drawings

Clevis joints stainless steel DIN 71752

Item selection/filter

Item No.	Version	B	G	D1	D2	D3	L2	A	CAD	Acc.	Price	Order
K0732.0510	rh thread	5	10	5	M5	9	20	10			16.96 $ (USD)
K0732.0612	rh thread	6	12	6	M6	10	24	12			18.80 $ (USD)
K0732.0816	rh thread	8	16	8	M8	14	32	16			26.21 $ (USD)
K0732.0832	rh thread	8	32	8	M8	14	48	16			28.90 $ (USD)
K0732.1020	rh thread	10	20	10	M10	18	40	20			31.06 $ (USD)
K0732.10120	rh thread	10	20	10	M10x1,25	18	40	20			32.59 $ (USD)
K0732.1040	rh thread	10	40	10	M10	18	60	20			36.11 $ (USD)
K0732.1224	rh thread	12	24	12	M12	20	48	24			42.91 $ (USD)
K0732.12124	rh thread	12	24	12	M12x1,25	20	48	24			50.27 $ (USD)
K0732.1248	rh thread	12	48	12	M12	20	72	24			54.21 $ (USD)
K0732.12148	rh thread	12	48	12	M12x1,25	20	72	24			71.35 $ (USD)
K0732.1428	rh thread	14	28	14	M14	24	56	27			68.70 $ (USD)
K0732.1632	rh thread	16	32	16	M16	26	64	32			87.06 $ (USD)
K0732.16132	rh thread	16	32	16	M16x1,5	26	64	32			91.46 $ (USD)
K0732.05101	lh thread	5	10	5	M5	9	20	10			17.20 $ (USD)
K0732.06121	lh thread	6	12	6	M6	10	24	12			18.96 $ (USD)
K0732.08161	lh thread	8	16	8	M8	14	32	16			27.09 $ (USD)
K0732.10201	lh thread	10	20	10	M10	18	40	20			36.21 $ (USD)
K0732.12241	lh thread	12	24	12	M12	20	48	24			52.91 $ (USD)
K0732.16321	lh thread	16	32	16	M16	26	64	32			112.43 $ (USD)

Other items in this category

<< | < | 1-10 | 11-20 | 21-30 | 31-40 | 41-43 | > | >>

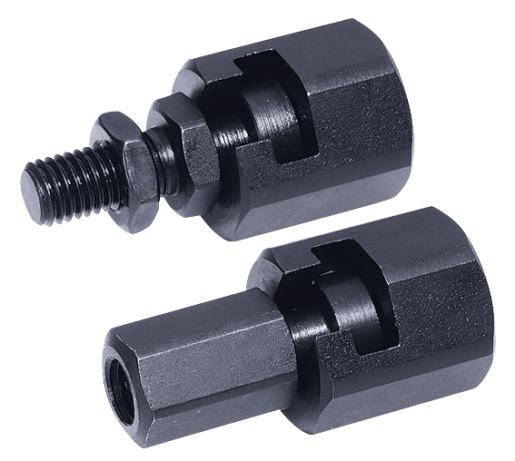

Quick-fit couplings with radial offset compensation

K0709

Quick-fit couplings with radial offset compensation

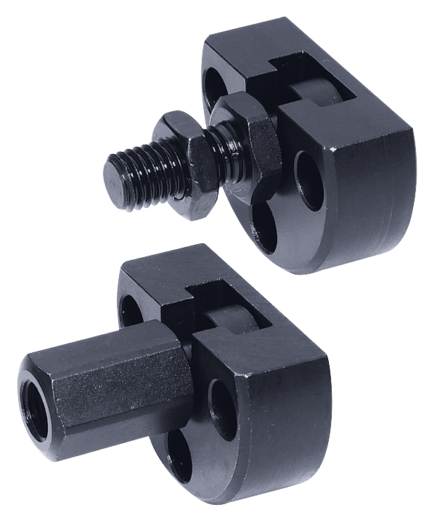

Quick-fit couplings with radial offset compensation and mounting flange

K0710

Quick-fit couplings with radial offset compensation and mounting flange

Quick-fit couplings with angular and radial offset compensation

K0711

Quick-fit couplings with angular and radial offset compensation

Clevis joints for Rod ends

K1934

Clevis joints for Rod ends

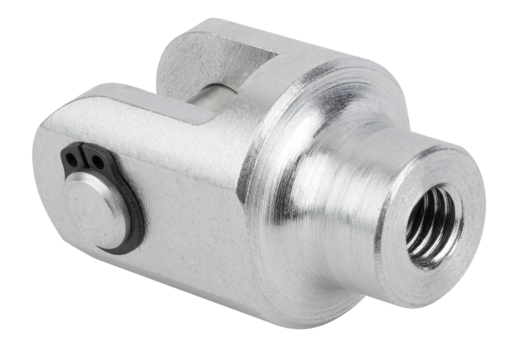

Clevis joints for rod ends stainless steel

K1935

Clevis joints for rod ends
stainless steel

Clevis joints with snap-in pin DIN 71752

K0731

Clevis joints with snap-in pin DIN 71752

Snap-in pins for clevis joints DIN 71752

K1139

Snap-in pins for clevis joints DIN 71752

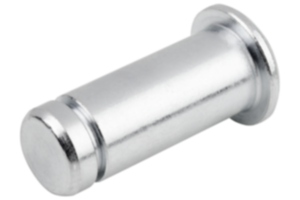

Pins with circlip groove, suitable for clevis

K1454

Pins with circlip groove, suitable for clevis

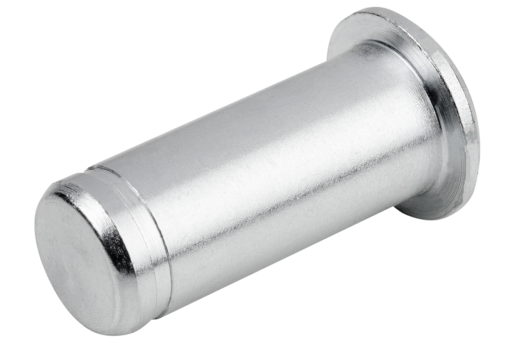

Pins with circlip groove suitable for clevis

K1455

Pins with circlip groove suitable for clevis

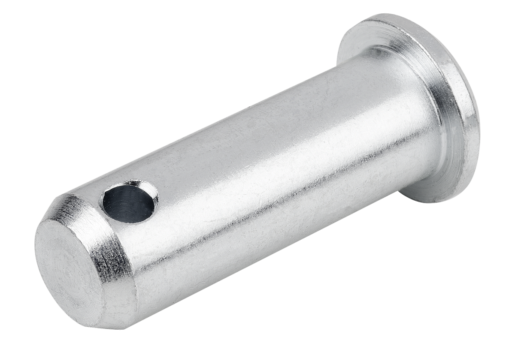

Pins with split pin hole suitable for clevis
