Clevis tang, steel

K1460

Clevis tang, steel

Products
- Joints
  - Clevis tang, steel

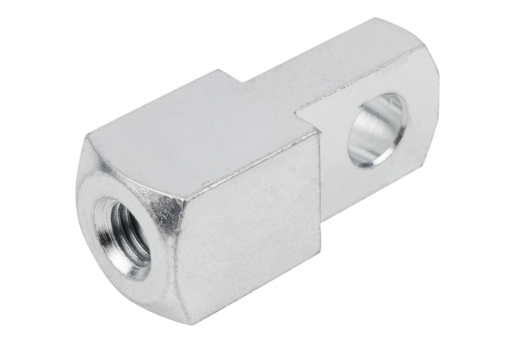

Item description/product images

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:The clevis tang can be combined with a DIN 71752 clevis. These items are mainly used when connections are required to compensate for a directional shift in one direction.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1460 Clevis tang, steel

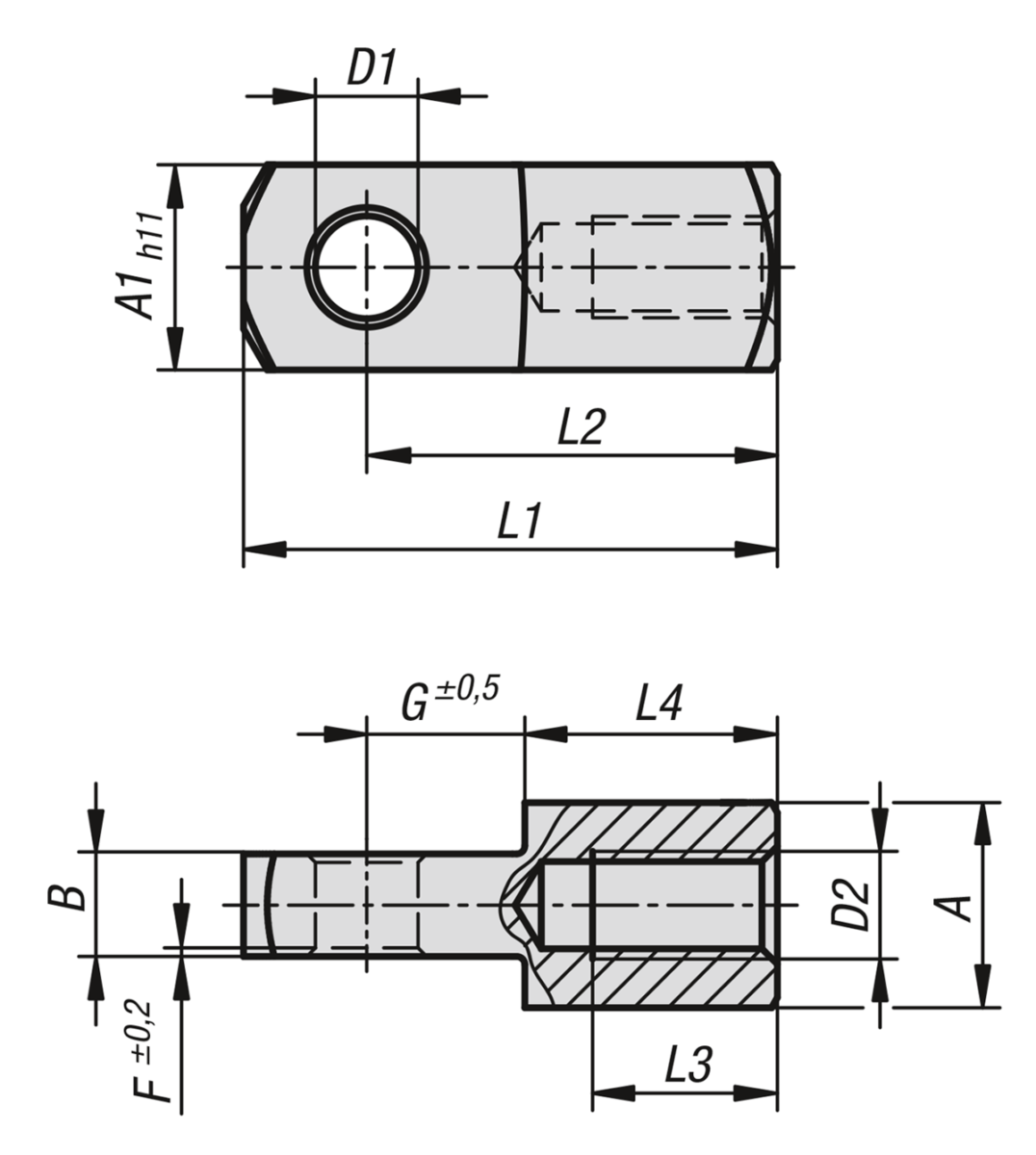

Drawings

Clevis tang, steel

Item selection/filter

Order No.	A	A1	B	D1	D2	F	G	L1	L2	L3	L4	CAD	Acc.	Price	Order
K1460.0406	8	8	4	4	M4	0,5	6	21	16	6	10			5.22 $ (USD)
K1460.0507	10	10	5	5	M5	0,5	7,5	26	20	8	12,5			4.77 $ (USD)
K1460.0609	12	12	6	6	M6	0,5	9	31	24	11	15			5.22 $ (USD)
K1460.0812	16	16	8	8	M8	0,5	12	42	32	14	20			6.52 $ (USD)
K1460.1015	20	20	10	10	M10	0,5	15	52	40	18	25			9.22 $ (USD)
K1460.1218	24	24	12	12	M12	0,5	18	62	48	22	30			18.13 $ (USD)
K1460.1421	27	27	14	14	M14	1	21	72	56	25	35			25.33 $ (USD)
K1460.1624	32	32	16	16	M16	1	24	83	64	30	40			26.91 $ (USD)
