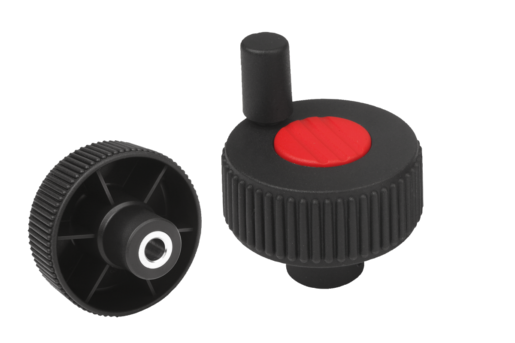

Knurled Wheels, Style M, with cross hole and grub screw, inch

Item description/product images

DescriptionMaterial:Black thermoplastic.
bushing grade 5.8 steel.Version:Steel trivalent blue passivated.Drawing reference:

Style M: with tapped set screw hole and set screw

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	style	color Cap	D	D1	D2	D3	D4	H	H1	H2	H3	L1	T	Price
K0262.11CM	M	black gray RAL 7021	0,25	40	16,5	10	M4	31	13	16	5,5	15	10	17.37 $ (USD)
K0262.11CM5	M	light gray RAL 7035	0,25	40	16,5	10	M4	31	13	16	5,5	15	10	17.37 $ (USD)
K0262.11CM6	M	traffic red RAL 3020	0,25	40	16,5	10	M4	31	13	16	5,5	15	10	17.37 $ (USD)
K0262.11CM7	M	colza yellow RAL 1021	0,25	40	16,5	10	M4	31	13	16	5,5	15	10	17.37 $ (USD)
K0262.12CM	M	black gray RAL 7021	0,25	50	18	10	M4	36	15	16	5,5	18,5	10	19.32 $ (USD)
K0262.12CM5	M	light gray RAL 7035	0,25	50	18	10	M4	36	15	16	5,5	18,5	10	19.32 $ (USD)
K0262.12CM6	M	traffic red RAL 3020	0,25	50	18	10	M4	36	15	16	5,5	18,5	10	19.32 $ (USD)
K0262.12CM7	M	colza yellow RAL 1021	0,25	50	18	10	M4	36	15	16	5,5	18,5	10	19.32 $ (USD)
K0262.13CN	M	black gray RAL 7021	0,312	63	22	10	M4	41	17	16	8	25	14	21.31 $ (USD)
K0262.13CN5	M	light gray RAL 7035	0,312	63	22	10	M4	41	17	16	8	25	14	21.31 $ (USD)
K0262.13CN6	M	traffic red RAL 3020	0,312	63	22	10	M4	41	17	16	8	25	14	21.31 $ (USD)
K0262.13CN7	M	colza yellow RAL 1021	0,312	63	22	10	M4	41	17	16	8	25	14	21.31 $ (USD)
