    - Star Grips in stainless steel similar to DIN 6336
      - Star Grips in stainless steel similar to DIN 6336, Style L, metric

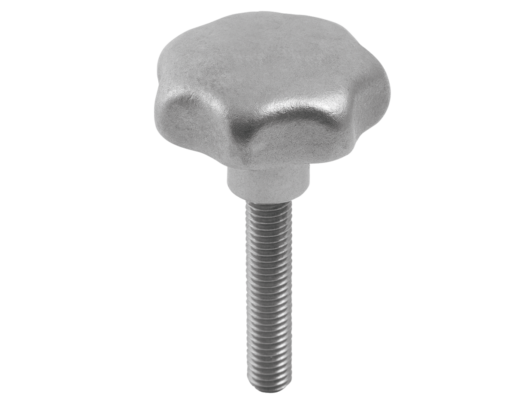

Item description/product images

DescriptionMaterial:Stainless steel 1.4308 (AISI "316" equivalent).
Grub screw stainless steel 1.4305 (AISI 303 equivalent).
Pin stainless steel 1.4310 (AISI 301 equivalent).Version:Star grip blasted.
Grub screw and pin bright.Drawing reference:

Style L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K0150_L Metric Star Grips in stainless steel similar to DIN 6336, Style L, metric

182 kB

Drawings

Item selection/filter

Order No.	style	Surface finish body	D	D1	D2	H	H3	L	Price
K0150.632063X15	L	blasted	M6	32	12	21	10	15	19.24 $ (USD)
K0150.632063X20	L	blasted	M6	32	12	21	10	20	19.39 $ (USD)
K0150.632063X25	L	blasted	M6	32	12	21	10	25	19.49 $ (USD)
K0150.632063X30	L	blasted	M6	32	12	21	10	30	19.52 $ (USD)
K0150.640083X20	L	blasted	M8	40	14	26	13	20	21.40 $ (USD)
K0150.640083X25	L	blasted	M8	40	14	26	13	25	21.68 $ (USD)
K0150.640083X30	L	blasted	M8	40	14	26	13	30	21.80 $ (USD)
K0150.640083X40	L	blasted	M8	40	14	26	13	40	22.16 $ (USD)
K0150.650103X25	L	blasted	M10	50	18	34	17	25	27.89 $ (USD)
K0150.650103X30	L	blasted	M10	50	18	34	17	30	28.10 $ (USD)
K0150.650103X40	L	blasted	M10	50	18	34	17	40	28.46 $ (USD)
K0150.650103X50	L	blasted	M10	50	18	34	17	50	28.84 $ (USD)
K0150.663123X30	L	blasted	M12	63	20	42	21	30	35.66 $ (USD)
K0150.663123X40	L	blasted	M12	63	20	42	21	40	35.94 $ (USD)
K0150.663123X50	L	blasted	M12	63	20	42	21	50	36.91 $ (USD)
K0150.663123X60	L	blasted	M12	63	20	42	21	60	37.41 $ (USD)
