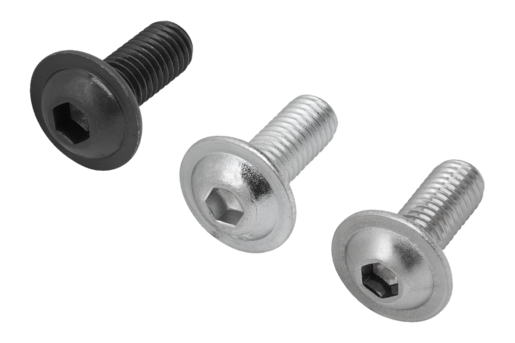

K1796_BHexagon socket button head screws with collar EN ISO 7380-2,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel A2.Version:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | style | Main
material | Surface finish
body | Grade | D | L | D1 | K | SW | CAD | Acc. | Price | Order |
|---|
| K1796.2304X8 | B | steel | bright (black) | 10.9 | M4 | 8 | 9,4 | 2,2 | 2,5 |  | | 0.65 $ (USD) | | | K1796.2304X10 | B | steel | bright (black) | 10.9 | M4 | 10 | 9,4 | 2,2 | 2,5 | | | 0.68 $ (USD) | | | K1796.2304X12 | B | steel | bright (black) | 10.9 | M4 | 12 | 9,4 | 2,2 | 2,5 | | | 0.68 $ (USD) | | | K1796.2304X16 | B | steel | bright (black) | 10.9 | M4 | 16 | 9,4 | 2,2 | 2,5 | | | 0.68 $ (USD) | | | K1796.2304X20 | B | steel | bright (black) | 10.9 | M4 | 20 | 9,4 | 2,2 | 2,5 | | | 0.77 $ (USD) | | | K1796.2304X25 | B | steel | bright (black) | 10.9 | M4 | 25 | 9,4 | 2,2 | 2,5 | | | 0.84 $ (USD) | | | K1796.2304X30 | B | steel | bright (black) | 10.9 | M4 | 30 | 9,4 | 2,2 | 2,5 | | | 0.91 $ (USD) | | | K1796.2305X8 | B | steel | bright (black) | 10.9 | M5 | 8 | 11,8 | 2,75 | 3 | | | 0.84 $ (USD) | | | K1796.2305X10 | B | steel | bright (black) | 10.9 | M5 | 10 | 11,8 | 2,75 | 3 | | | 0.79 $ (USD) | | | K1796.2305X12 | B | steel | bright (black) | 10.9 | M5 | 12 | 11,8 | 2,75 | 3 | | | 0.79 $ (USD) | | | K1796.2305X16 | B | steel | bright (black) | 10.9 | M5 | 16 | 11,8 | 2,75 | 3 | | | 0.81 $ (USD) | | | K1796.2305X20 | B | steel | bright (black) | 10.9 | M5 | 20 | 11,8 | 2,75 | 3 | | | 0.86 $ (USD) | | | K1796.2305X25 | B | steel | bright (black) | 10.9 | M5 | 25 | 11,8 | 2,75 | 3 | | | 0.89 $ (USD) | | | K1796.2305X30 | B | steel | bright (black) | 10.9 | M5 | 30 | 11,8 | 2,75 | 3 | | | 1.10 $ (USD) | | | K1796.2305X35 | B | steel | bright (black) | 10.9 | M5 | 35 | 11,8 | 2,75 | 3 | | | 1.35 $ (USD) | | | K1796.2306X8 | B | steel | bright (black) | 10.9 | M6 | 8 | 13,6 | 3,3 | 4 | | | 0.88 $ (USD) | | | K1796.2306X10 | B | steel | bright (black) | 10.9 | M6 | 10 | 13,6 | 3,3 | 4 | | | 0.86 $ (USD) | | | K1796.2306X12 | B | steel | bright (black) | 10.9 | M6 | 12 | 13,6 | 3,3 | 4 | | | 0.89 $ (USD) | | | K1796.2306X16 | B | steel | bright (black) | 10.9 | M6 | 16 | 13,6 | 3,3 | 4 | | | 0.89 $ (USD) | | | K1796.2306X20 | B | steel | bright (black) | 10.9 | M6 | 20 | 13,6 | 3,3 | 4 | | | 1.10 $ (USD) | | | K1796.2306X25 | B | steel | bright (black) | 10.9 | M6 | 25 | 13,6 | 3,3 | 4 | | | 1.19 $ (USD) | | | K1796.2306X30 | B | steel | bright (black) | 10.9 | M6 | 30 | 13,6 | 3,3 | 4 | | | 1.30 $ (USD) | | | K1796.2306X35 | B | steel | bright (black) | 10.9 | M6 | 35 | 13,6 | 3,3 | 4 | | | 1.45 $ (USD) | | | K1796.2306X40 | B | steel | bright (black) | 10.9 | M6 | 40 | 13,6 | 3,3 | 4 | | | 1.73 $ (USD) | | | K1796.2308X12 | B | steel | bright (black) | 10.9 | M8 | 12 | 17,8 | 4,4 | 5 | | | 0.79 $ (USD) | | | K1796.2308X16 | B | steel | bright (black) | 10.9 | M8 | 16 | 17,8 | 4,4 | 5 | | | 0.89 $ (USD) | | | K1796.2308X20 | B | steel | bright (black) | 10.9 | M8 | 20 | 17,8 | 4,4 | 5 | | | 0.91 $ (USD) | | | K1796.2308X25 | B | steel | bright (black) | 10.9 | M8 | 25 | 17,8 | 4,4 | 5 | | | 1.07 $ (USD) | | | K1796.2308X30 | B | steel | bright (black) | 10.9 | M8 | 30 | 17,8 | 4,4 | 5 | | | 1.17 $ (USD) | | | K1796.2308X35 | B | steel | bright (black) | 10.9 | M8 | 35 | 17,8 | 4,4 | 5 | | | 1.30 $ (USD) | | | K1796.2308X40 | B | steel | bright (black) | 10.9 | M8 | 40 | 17,8 | 4,4 | 5 | | | 1.66 $ (USD) | | | K1796.2308X50 | B | steel | bright (black) | 10.9 | M8 | 50 | 17,8 | 4,4 | 5 | | | 1.86 $ (USD) | | | K1796.2308X60 | B | steel | bright (black) | 10.9 | M8 | 60 | 17,8 | 4,4 | 5 | | | 1.91 $ (USD) | | | K1796.2310X25 | B | steel | bright (black) | 10.9 | M10 | 25 | 21,9 | 5,5 | 6 | | | 1.79 $ (USD) | | | K1796.2310X30 | B | steel | bright (black) | 10.9 | M10 | 30 | 21,9 | 5,5 | 6 | | | 2.03 $ (USD) | | | K1796.2310X35 | B | steel | bright (black) | 10.9 | M10 | 35 | 21,9 | 5,5 | 6 | | | 2.26 $ (USD) | | | K1796.2504X8 | B | steel | galvanized | 10.9 | M4 | 8 | 9,4 | 2,2 | 2,5 | | | 0.67 $ (USD) | | | K1796.2504X10 | B | steel | galvanized | 10.9 | M4 | 10 | 9,4 | 2,2 | 2,5 | | | 0.70 $ (USD) | | | K1796.2504X12 | B | steel | galvanized | 10.9 | M4 | 12 | 9,4 | 2,2 | 2,5 | | | 0.70 $ (USD) | | | K1796.2504X16 | B | steel | galvanized | 10.9 | M4 | 16 | 9,4 | 2,2 | 2,5 | | | 0.70 $ (USD) | | | K1796.2504X20 | B | steel | galvanized | 10.9 | M4 | 20 | 9,4 | 2,2 | 2,5 | | | 0.79 $ (USD) | | | K1796.2504X25 | B | steel | galvanized | 10.9 | M4 | 25 | 9,4 | 2,2 | 2,5 | | | 0.86 $ (USD) | | | K1796.2504X30 | B | steel | galvanized | 10.9 | M4 | 30 | 9,4 | 2,2 | 2,5 | | | 0.96 $ (USD) | | | K1796.2505X8 | B | steel | galvanized | 10.9 | M5 | 8 | 11,8 | 2,75 | 3 | | | 0.86 $ (USD) | | | K1796.2505X10 | B | steel | galvanized | 10.9 | M5 | 10 | 11,8 | 2,75 | 3 | | | 0.81 $ (USD) | | | K1796.2505X12 | B | steel | galvanized | 10.9 | M5 | 12 | 11,8 | 2,75 | 3 | | | 0.81 $ (USD) | | | K1796.2505X16 | B | steel | galvanized | 10.9 | M5 | 16 | 11,8 | 2,75 | 3 | | | 0.84 $ (USD) | | | K1796.2505X20 | B | steel | galvanized | 10.9 | M5 | 20 | 11,8 | 2,75 | 3 | | | 0.88 $ (USD) | | | K1796.2505X25 | B | steel | galvanized | 10.9 | M5 | 25 | 11,8 | 2,75 | 3 | | | 0.91 $ (USD) | | | K1796.2505X30 | B | steel | galvanized | 10.9 | M5 | 30 | 11,8 | 2,75 | 3 | | | 1.14 $ (USD) | | | K1796.2505X35 | B | steel | galvanized | 10.9 | M5 | 35 | 11,8 | 2,75 | 3 | | | 1.38 $ (USD) | | | K1796.2506X8 | B | steel | galvanized | 10.9 | M6 | 8 | 13,6 | 3,3 | 4 | | | 0.89 $ (USD) | | | K1796.2506X10 | B | steel | galvanized | 10.9 | M6 | 10 | 13,6 | 3,3 | 4 | | | 0.88 $ (USD) | | | K1796.2506X12 | B | steel | galvanized | 10.9 | M6 | 12 | 13,6 | 3,3 | 4 | | | 0.91 $ (USD) | | | K1796.2506X16 | B | steel | galvanized | 10.9 | M6 | 16 | 13,6 | 3,3 | 4 | | | 0.91 $ (USD) | | | K1796.2506X20 | B | steel | galvanized | 10.9 | M6 | 20 | 13,6 | 3,3 | 4 | | | 1.14 $ (USD) | | | K1796.2506X25 | B | steel | galvanized | 10.9 | M6 | 25 | 13,6 | 3,3 | 4 | | | 1.23 $ (USD) | | | K1796.2506X30 | B | steel | galvanized | 10.9 | M6 | 30 | 13,6 | 3,3 | 4 | | | 1.35 $ (USD) | | | K1796.2506X35 | B | steel | galvanized | 10.9 | M6 | 35 | 13,6 | 3,3 | 4 | | | 1.47 $ (USD) | | | K1796.2506X40 | B | steel | galvanized | 10.9 | M6 | 40 | 13,6 | 3,3 | 4 | | | 1.75 $ (USD) | | | K1796.2508X12 | B | steel | galvanized | 10.9 | M8 | 12 | 17,8 | 4,4 | 5 | | | 0.81 $ (USD) | | | K1796.2508X16 | B | steel | galvanized | 10.9 | M8 | 16 | 17,8 | 4,4 | 5 | | | 0.91 $ (USD) | | | K1796.2508X20 | B | steel | galvanized | 10.9 | M8 | 20 | 17,8 | 4,4 | 5 | | | 0.96 $ (USD) | | | K1796.2508X25 | B | steel | galvanized | 10.9 | M8 | 25 | 17,8 | 4,4 | 5 | | | 1.09 $ (USD) | | | K1796.2508X30 | B | steel | galvanized | 10.9 | M8 | 30 | 17,8 | 4,4 | 5 | | | 1.19 $ (USD) | | | K1796.2508X35 | B | steel | galvanized | 10.9 | M8 | 35 | 17,8 | 4,4 | 5 | | | 1.35 $ (USD) | | | K1796.2508X40 | B | steel | galvanized | 10.9 | M8 | 40 | 17,8 | 4,4 | 5 | | | 1.68 $ (USD) | | | K1796.2508X50 | B | steel | galvanized | 10.9 | M8 | 50 | 17,8 | 4,4 | 5 | | | 1.87 $ (USD) | | | K1796.2508X60 | B | steel | galvanized | 10.9 | M8 | 60 | 17,8 | 4,4 | 5 | | | 1.96 $ (USD) | | | K1796.2510X20 | B | steel | galvanized | 10.9 | M10 | 20 | 21,9 | 5,5 | 6 | | | 2.01 $ (USD) | | | K1796.2510X30 | B | steel | galvanized | 10.9 | M10 | 30 | 21,9 | 5,5 | 6 | | | 2.14 $ (USD) | | | K1796.2510X35 | B | steel | galvanized | 10.9 | M10 | 35 | 21,9 | 5,5 | 6 | | | 2.31 $ (USD) | | | K1796.2510X40 | B | steel | galvanized | 10.9 | M10 | 40 | 21,9 | 5,5 | 6 | | | 2.40 $ (USD) | | | K1796.2510X50 | B | steel | galvanized | 10.9 | M10 | 50 | 21,9 | 5,5 | 6 | | | 2.52 $ (USD) | | | K1796.2512X20 | B | steel | galvanized | 10.9 | M12 | 20 | 26 | 6,6 | 8 | | | 3.41 $ (USD) | | | K1796.2512X25 | B | steel | galvanized | 10.9 | M12 | 25 | 26 | 6,6 | 8 | | | 3.48 $ (USD) | | | K1796.2512X30 | B | steel | galvanized | 10.9 | M12 | 30 | 26 | 6,6 | 8 | | | 3.57 $ (USD) | | | K1796.2512X40 | B | steel | galvanized | 10.9 | M12 | 40 | 26 | 6,6 | 8 | | | 4.15 $ (USD) | | | K1796.2512X50 | B | steel | galvanized | 10.9 | M12 | 50 | 26 | 6,6 | 8 | | | 5.04 $ (USD) | | | K1796.2512X60 | B | steel | galvanized | 10.9 | M12 | 60 | 26 | 6,6 | 8 | | | 5.44 $ (USD) | | | K1796.2103X8 | B | stainless steel A2 | bright | 70 | M3 | 8 | 6,9 | 1,65 | 2 | | | 0.35 $ (USD) | | | K1796.2103X10 | B | stainless steel A2 | bright | 70 | M3 | 10 | 6,9 | 1,65 | 2 | | | 0.54 $ (USD) | | | K1796.2104X8 | B | stainless steel A2 | bright | 70 | M4 | 8 | 9,4 | 2,2 | 2,5 | | | 0.49 $ (USD) | | | K1796.2104X10 | B | stainless steel A2 | bright | 70 | M4 | 10 | 9,4 | 2,2 | 2,5 | | | 0.49 $ (USD) | | | K1796.2104X12 | B | stainless steel A2 | bright | 70 | M4 | 12 | 9,4 | 2,2 | 2,5 | | | 0.51 $ (USD) | | | K1796.2104X16 | B | stainless steel A2 | bright | 70 | M4 | 16 | 9,4 | 2,2 | 2,5 | | | 0.60 $ (USD) | | | K1796.2104X20 | B | stainless steel A2 | bright | 70 | M4 | 20 | 9,4 | 2,2 | 2,5 | | | 0.67 $ (USD) | | | K1796.2104X25 | B | stainless steel A2 | bright | 70 | M4 | 25 | 9,4 | 2,2 | 2,5 | | | 0.81 $ (USD) | | | K1796.2105X8 | B | stainless steel A2 | bright | 70 | M5 | 8 | 11,8 | 2,75 | 3 | | | 0.84 $ (USD) | | | K1796.2105X10 | B | stainless steel A2 | bright | 70 | M5 | 10 | 11,8 | 2,75 | 3 | | | 0.67 $ (USD) | | | K1796.2105X12 | B | stainless steel A2 | bright | 70 | M5 | 12 | 11,8 | 2,75 | 3 | | | 0.72 $ (USD) | | | K1796.2105X16 | B | stainless steel A2 | bright | 70 | M5 | 16 | 11,8 | 2,75 | 3 | | | 0.72 $ (USD) | | | K1796.2105X20 | B | stainless steel A2 | bright | 70 | M5 | 20 | 11,8 | 2,75 | 3 | | | 0.91 $ (USD) | | | K1796.2105X25 | B | stainless steel A2 | bright | 70 | M5 | 25 | 11,8 | 2,75 | 3 | | | 1.10 $ (USD) | | | K1796.2106X8 | B | stainless steel A2 | bright | 70 | M6 | 8 | 13,6 | 3,3 | 4 | | | 0.56 $ (USD) | | | K1796.2106X10 | B | stainless steel A2 | bright | 70 | M6 | 10 | 13,6 | 3,3 | 4 | | | 0.72 $ (USD) | | | K1796.2106X12 | B | stainless steel A2 | bright | 70 | M6 | 12 | 13,6 | 3,3 | 4 | | | 0.86 $ (USD) | | | K1796.2106X16 | B | stainless steel A2 | bright | 70 | M6 | 16 | 13,6 | 3,3 | 4 | | | 0.91 $ (USD) | | | K1796.2106X20 | B | stainless steel A2 | bright | 70 | M6 | 20 | 13,6 | 3,3 | 4 | | | 1.10 $ (USD) | | | K1796.2106X25 | B | stainless steel A2 | bright | 70 | M6 | 25 | 13,6 | 3,3 | 4 | | | 1.30 $ (USD) | | | K1796.2106X30 | B | stainless steel A2 | bright | 70 | M6 | 30 | 13,6 | 3,3 | 4 | | | 1.52 $ (USD) | | | K1796.2106X35 | B | stainless steel A2 | bright | 70 | M6 | 35 | 13,6 | 3,3 | 4 | | | 1.65 $ (USD) | | | K1796.2106X40 | B | stainless steel A2 | bright | 70 | M6 | 40 | 13,6 | 3,3 | 4 | | | 1.82 $ (USD) | | | K1796.2106X45 | B | stainless steel A2 | bright | 70 | M6 | 45 | 13,6 | 3,3 | 4 | | | 2.07 $ (USD) | | | K1796.2108X10 | B | stainless steel A2 | bright | 70 | M8 | 10 | 17,8 | 4,4 | 5 | | | 1.24 $ (USD) | | | K1796.2108X12 | B | stainless steel A2 | bright | 70 | M8 | 12 | 17,8 | 4,4 | 5 | | | 1.07 $ (USD) | | | K1796.2108X16 | B | stainless steel A2 | bright | 70 | M8 | 16 | 17,8 | 4,4 | 5 | | | 1.10 $ (USD) | | | K1796.2108X20 | B | stainless steel A2 | bright | 70 | M8 | 20 | 17,8 | 4,4 | 5 | | | 1.28 $ (USD) | | | K1796.2108X25 | B | stainless steel A2 | bright | 70 | M8 | 25 | 17,8 | 4,4 | 5 | | | 1.49 $ (USD) | |
