Item description/product images

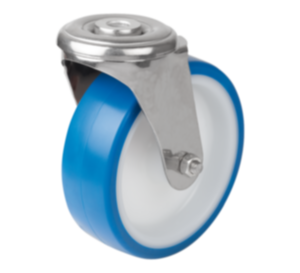

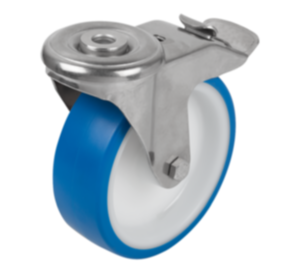

DescriptionMaterial:Housing stainless steel 1.4301 (AISI 304 equivalent).
Wheel rim, high-quality thermoplastic polyurethane.
Wheel tread, high-quality polyamide.
Version:Housing press styleed.
Double ball bearing in the caster head.
Plain bearing in wheels.Note:Wheel axle bolted.Application:Loads can be transported with low noise and maximum ease in area's with high hygiene requirements.Temperature range:-20 °C - +70 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet K1791_L Swivel casters

258 kB

Drawings

Item selection/filter

Order No.	Item	Wheel bearing	A	B	D	D1	D2	H	R	Permissible load kg	Price
K1791.21100035	Swivel caster	plain bearing	36	35	100	13	70	125	86	150	168.02 $ (USD)
K1791.21125040	Swivel caster	plain bearing	40	40	125	13	70	150	102,5	150	199.94 $ (USD)
K1791.21160045	Swivel caster	plain bearing	54	45	160	13	88	195	134	300	351.35 $ (USD)
K1791.21200050	Swivel caster	plain bearing	54	50	200	13	88	235	154	300	425.45 $ (USD)
