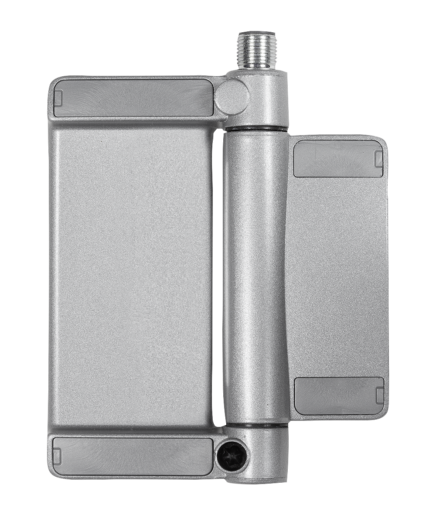

Security hinge switches, long version, Style A
K1501_A

Security hinge switches, long version, Style A

go back

Item description/product images

DescriptionMaterial:Housing, die-cast zinc.
Housing cover, plastic, self-extinguishing.
Hinge bolts, die-cast zinc/steel C45.
Contacts, silver-nickel alloy 10.
Note:The security hinge switches are used for monitoring the position of swing-hinged safety doors, protective hatches and hoods. The protective device is monitored directly in the hinge.
By the universally pre-set versions, the switching angle is freely adjustable over the entire working range. A mounting aid ensures the quick alignment to doors and posts.

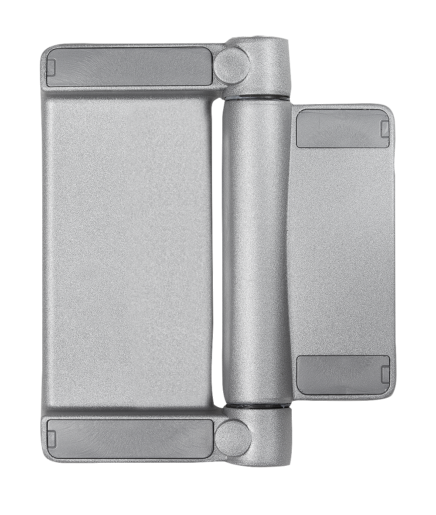

The additional hinges have the same appearance and dimensions as the security hinge switches.

The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for instyleation purposes only and do not constitute a legally binding assurance of properties.

The load values have been determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.

Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.
Application:- Special machine construction
- Electronics industry
- Packaging machines
- Enclosures/profile systems
- Machine tools
- Measuring, processing, testing and laboratory technology
Assembly:4x DIN 7984 or DIN EN ISO 4762 M6 socket head screws,
Tightening torque 4.3 Nm
General assembly instructions can be found in the accompanying operating instructions.
Benefits:- Suitable for protection on swivel hatches
- Minimum assembly required, especially on conventional aluminum profiles
- Optimum integration into the surrounding structure
- Additional protection against tampering
- Hardly any mechanical wear
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1501_A Security hinge switches, long version, Style A 346 kB
 Technical information for safety hinge switches 360 kB

Drawings

Security hinge switches, long version, Style A

Item selection/filter

Order No.ABDefault
setting
ContactsConnection
type
Connection
position
F1 max.
kN
F2 max.
kN
CADAcc.PriceOrder
K1501.98116111198116external mounting1C / 2Oconnectorbottom55 228.64 $ (USD)
K1501.98116111298116external mounting1C / 2Oconnectortop55 228.64 $ (USD)
K1501.98116211198116universal1C / 2Oconnectorbottom55 228.64 $ (USD)
K1501.98116211298116universal1C / 2Oconnectortop55 228.64 $ (USD)
