Hexagon bolts with narrow shaft in Hygienic DESIGN
K1330_SCHR

Hexagon bolts with narrow shaft in Hygienic DESIGN

go back

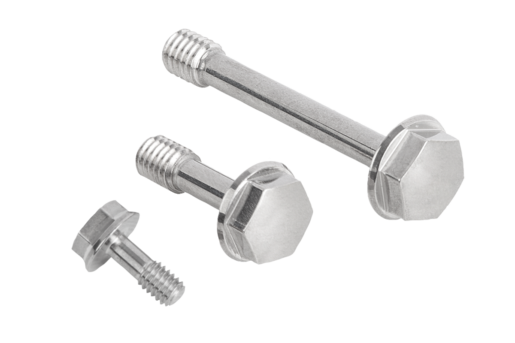

Item description/product images

DescriptionMaterial:Stainless steel 1.4404 (AISI 316L equivalent).Version:Polished.Note:Narrow shaft bolts are preferably secured against unintentional loss with a retaining element. This satisfies the EU standard 2006/42/EG. With the optionally available retaining washer the bolt is permanently combined with the component before screwing in. The washer is screwed over the threaded section and can then move freely on the narrow shaft. The shaft is not damaged by e.g. notching caused by a spring effect. By manual operation it is not possible that the washer screws itself out again. However, by careful manipulation the washer can be removed from the bolt without damaging either.
The surface of the hexagon head bolt is polished and, with regard to design optimised for the use in hygienic environments. The bolt head is convex on the top face and the collar has a conical styleed top surface. Instead of troublesome embossing or indentations, the bolt head is smooth with a surface finish of less than Ra 0.8 µm. Dirt and residue from products or cleaners seldom adheres and easy cleaning is ensured.
On request:Inch threads, thread lengths, shaft lengthsAccessory:Locking washer K1331.Special features:
RoHSStainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet K1330_SCHR Hexagon bolts with narrow shaft in Hygienic DESIGN 168 kB

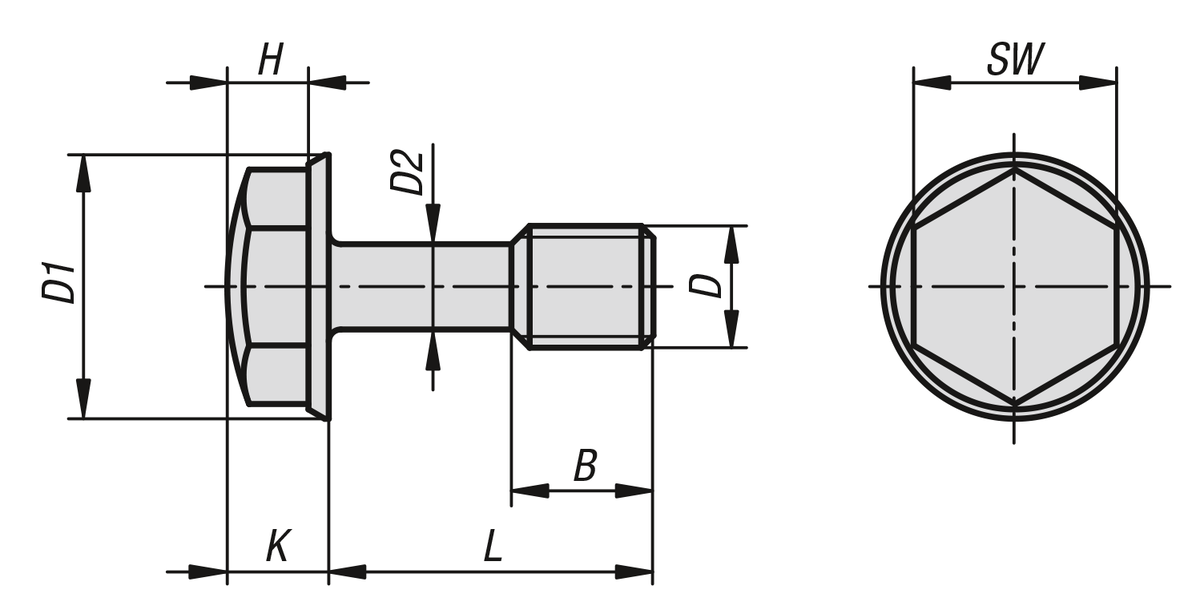

Drawings

Hexagon bolts with narrow shaft in Hygienic DESIGN

Item selection/filter

Order No.D

D1D2BHKLSWStatusCADAcc.PriceOrder
K1330.03X6M372,14,533,865,5expiring 6.46 $ (USD)
K1330.03X8M372,14,533,885,5expiring 6.54 $ (USD)
K1330.03X10M372,14,533,8105,5expiring 6.54 $ (USD)
K1330.03X12M372,14,533,8125,5expiring 6.64 $ (USD)
K1330.04X8M49,23,153487 6.82 $ (USD)
K1330.04X10M49,23,1534107 6.85 $ (USD)
K1330.04X12M49,23,1534127 6.93 $ (USD)
K1330.04X16M49,23,1534167 7.02 $ (USD)
K1330.04X20M49,23,11434207 7.10 $ (USD)
K1330.05X8M510,53,763,74,788expiring 7.10 $ (USD)
K1330.05X10M510,53,763,74,7108 7.20 $ (USD)
K1330.05X12M510,53,763,74,7128 7.25 $ (USD)
K1330.05X16M510,53,763,74,7168 7.34 $ (USD)
K1330.05X20M510,53,763,74,7208 7.42 $ (USD)
K1330.05X25M510,53,7163,74,7258 7.54 $ (USD)
K1330.06X10M6134,27451010expiring 7.78 $ (USD)
K1330.06X12M6134,27451210 7.84 $ (USD)
K1330.06X16M6134,27451610 8.05 $ (USD)
K1330.06X20M6134,27452010 8.16 $ (USD)
K1330.06X25M6134,218452510 8.35 $ (USD)
K1330.06X30M6134,218453010 8.54 $ (USD)
K1330.06X35M6134,218453510 8.72 $ (USD)
K1330.06X40M6134,218454010 8.94 $ (USD)
K1330.06X45M6134,218454510 9.10 $ (USD)
K1330.06X50M6134,218455010 9.28 $ (USD)
K1330.06X60M6134,218456010 9.70 $ (USD)
K1330.08X12M816,8695,56,51213expiring 8.62 $ (USD)
K1330.08X14M816,8695,56,51413expiring 8.77 $ (USD)
K1330.08X16M816,869,55,56,51613 8.85 $ (USD)
K1330.08X20M816,869,55,56,52013 9.10 $ (USD)
K1330.08X25M816,869,55,56,52513 9.39 $ (USD)
K1330.08X30M816,86225,56,53013 9.66 $ (USD)
K1330.08X35M816,86225,56,53513 9.92 $ (USD)
K1330.08X40M816,86225,56,54013 10.21 $ (USD)
K1330.08X45M816,86225,56,54513 10.48 $ (USD)
K1330.08X50M816,86225,56,55013 10.77 $ (USD)
K1330.08X55M816,8695,56,55513expiring 11.07 $ (USD)
K1330.08X60M816,86225,56,56013 11.34 $ (USD)
K1330.08X65M816,8695,56,56513expiring 11.68 $ (USD)
K1330.08X70M816,86225,56,57013 11.97 $ (USD)
K1330.10X20M1020,67,7127,38,32016 10.48 $ (USD)
K1330.10X25M1020,67,7127,38,32516 10.93 $ (USD)
K1330.10X30M1020,67,7127,38,33016 11.30 $ (USD)
K1330.10X35M1020,67,7127,38,33516 11.74 $ (USD)
K1330.10X40M1020,67,7267,38,34016 12.21 $ (USD)
K1330.10X45M1020,67,7267,38,34516 12.61 $ (USD)
K1330.10X50M1020,67,7267,38,35016 13.06 $ (USD)
K1330.10X55M1020,67,7127,38,35516expiring 13.52 $ (USD)
K1330.10X60M1020,67,7267,38,36016 13.95 $ (USD)
K1330.10X65M1020,67,7127,38,36516expiring 14.45 $ (USD)
K1330.10X70M1020,67,7267,38,37016 14.91 $ (USD)
K1330.10X75M1020,67,7127,38,37516expiring 15.41 $ (USD)
K1330.10X80M1020,67,7267,38,38016 15.89 $ (USD)
